Shocker HD 20K Max Black Air Receiver Hitch (Build Your Own)

Rated 5.00 out of 5 based on 8 customer ratings

$640.00$869.99$670.00$909.99

Free Ground Shipping*
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Clear
OR

-

  • Videos arrow

    Videos

    Shocker HD Max Black Air Hitch Videos

  • Install arrow

    Install

    Shocker HD Air Hitch Ball Mount Installation Instructions

    The Shocker HD Air Hitch ball mount is easy to install.  It comes complete with easy-to-understand instructions along with everything you need.  You can download the installation instructions or view the video below.

    Shocker Air Installation: First you must compress the air bag. Do this by depressing the air valve and pushing down on air bag.
    Once the bag has been compressed, you can install the unit into the receiver tube. Next install hitch pin.

    Shocker HD Air Hitch Install Video

    To Set Air: Hook up trailer using properly selected ball adaptor and height adjustment in order to a level trailer when loaded. Next, inflate the air bag. As air pressure increases, the unit will rotate lifting the hitch point. Install enough air to slightly compress top bushing or until bump stop clearance is approximately 1/8″.

    Shocker HD Air Hitch PSI Air Pressure Setting Guide Video

    Additional Set Up Notes:

    • When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
    • Spacer block included and may be required when using 2″ shank (see install manual below)
    • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
    • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY.

    Maximum Air Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

    Shocker HD Air Receiver Hitch Install Instructions

    Note: Always use a good hitch ball with the proper recommended tow weight.

  • Drop/Rise Guide arrow

    Drop/Rise Guide

    • Air Bumper Hitch Mount Drop & Rise + Tow Rating Guide

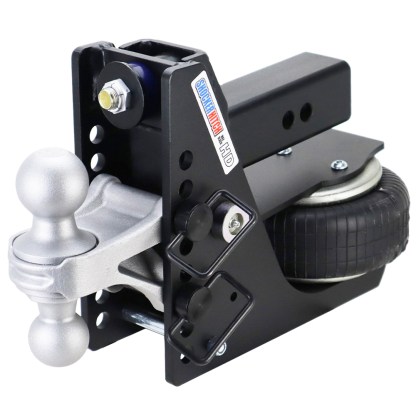

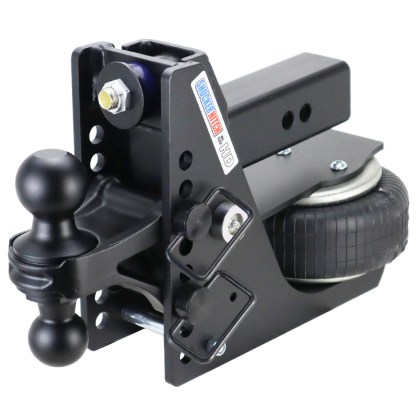

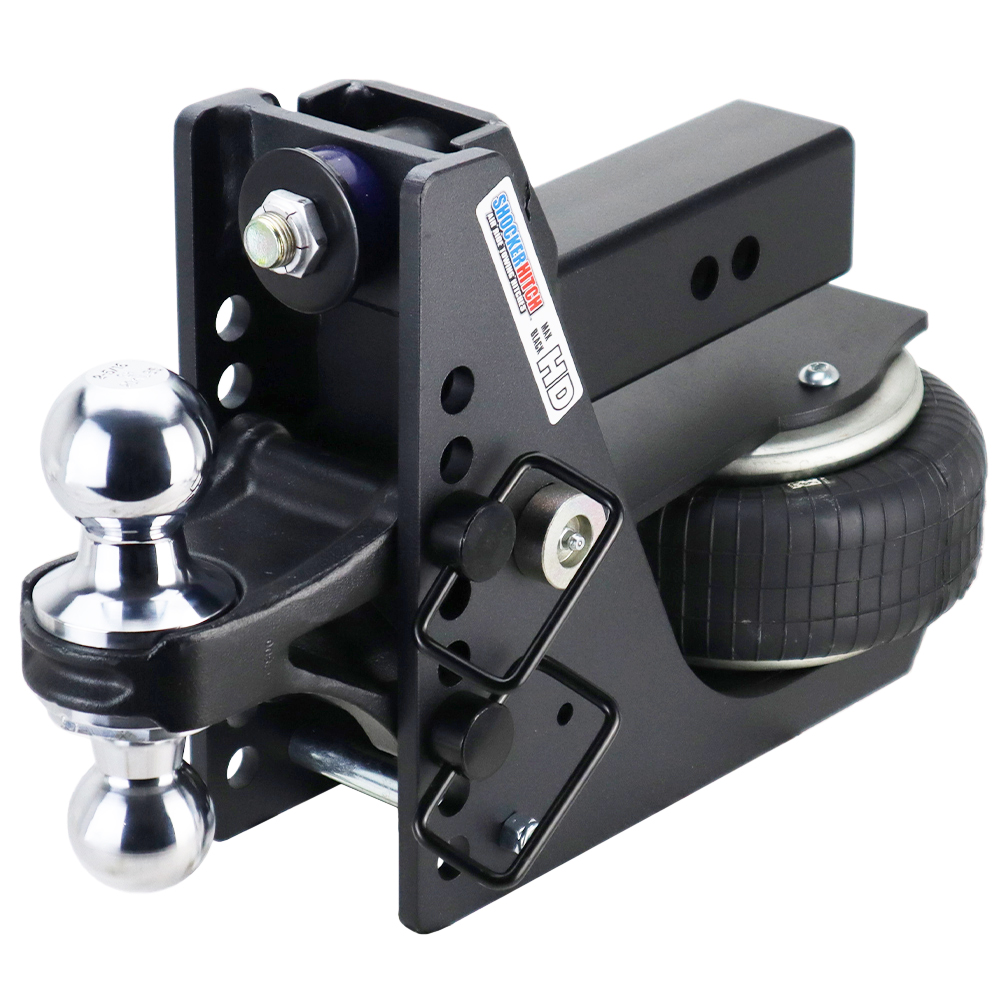

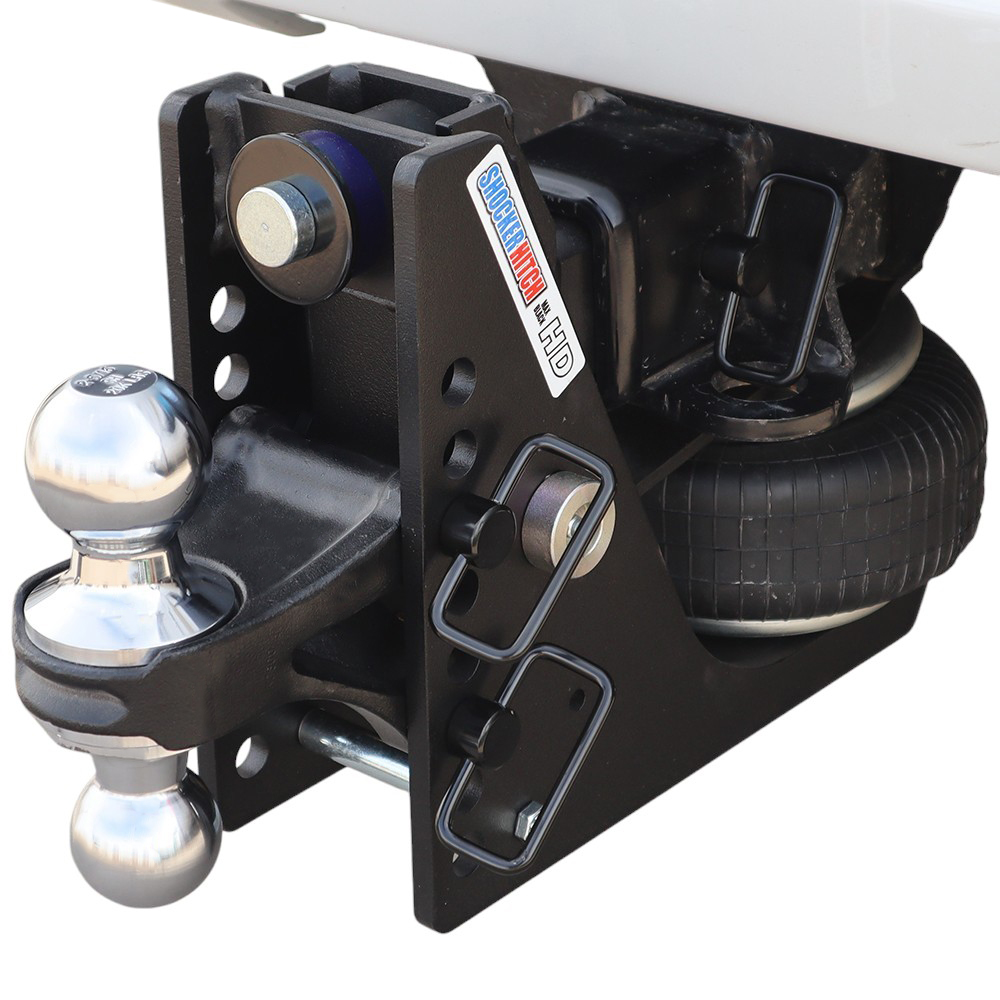

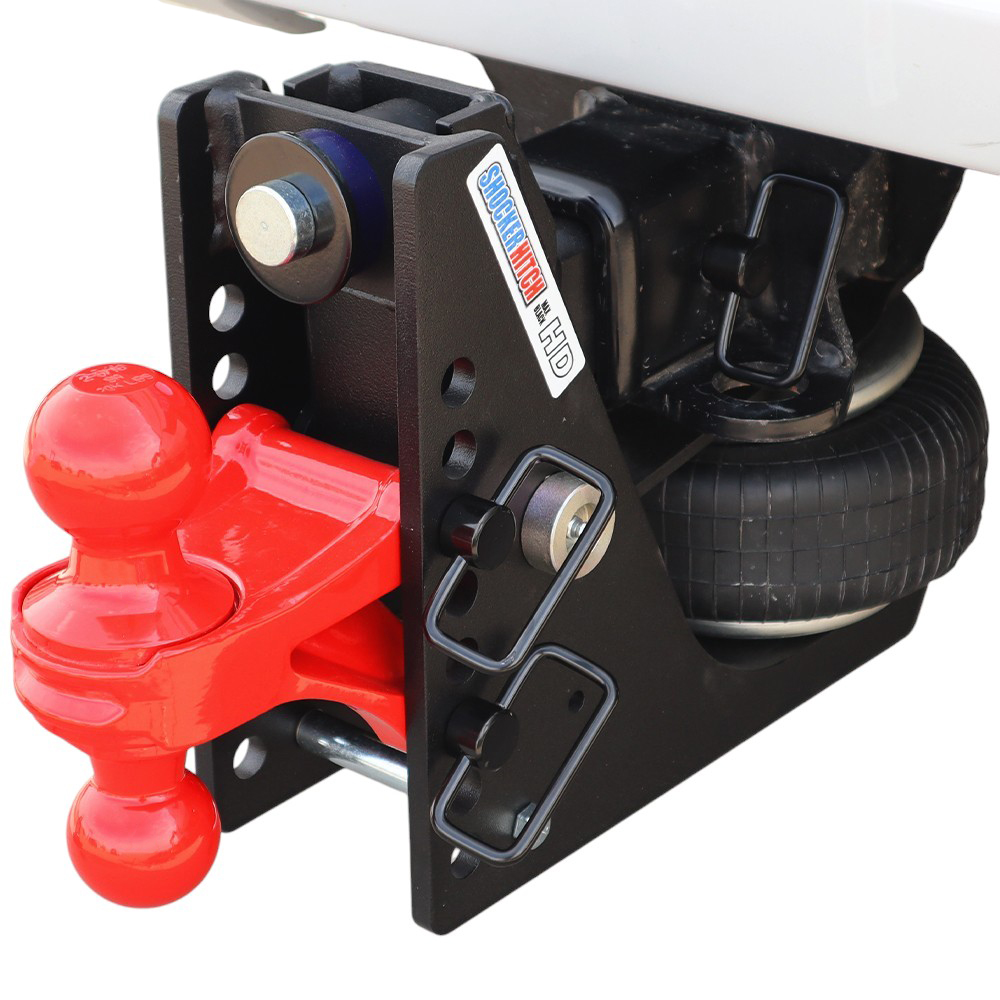

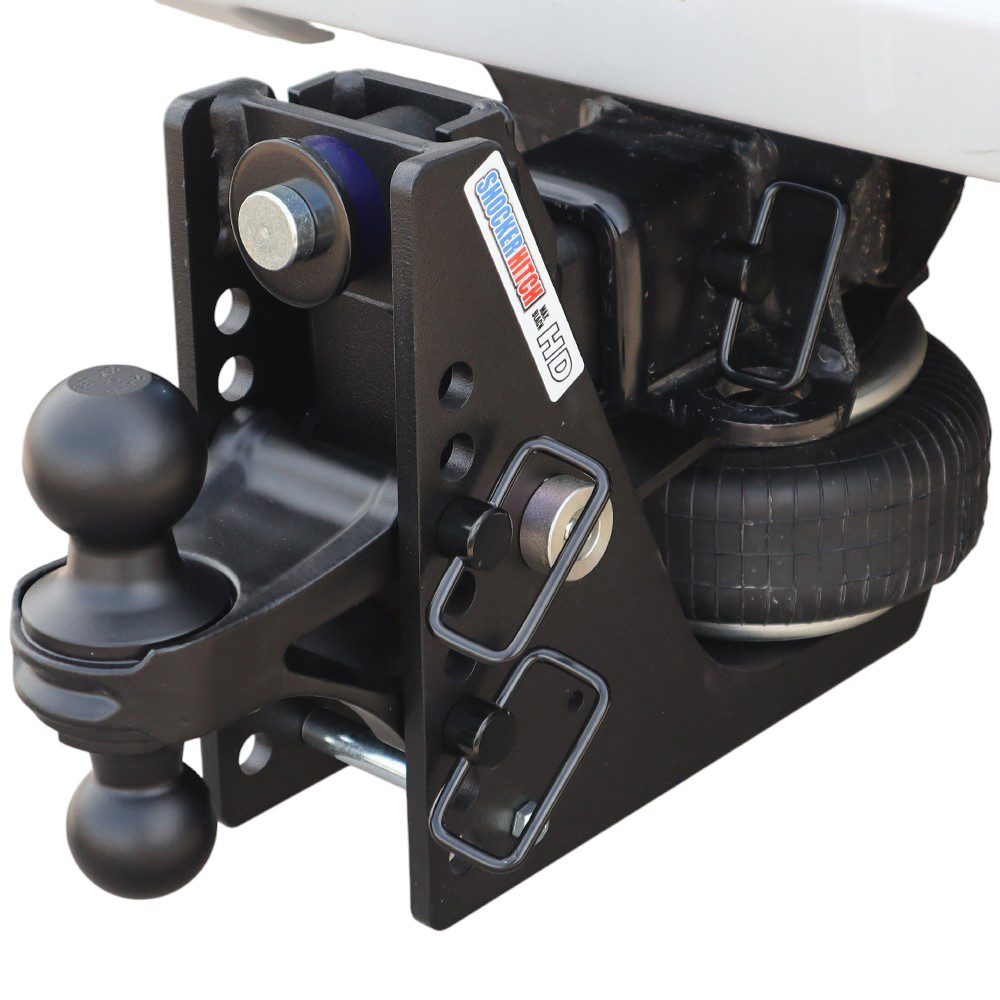

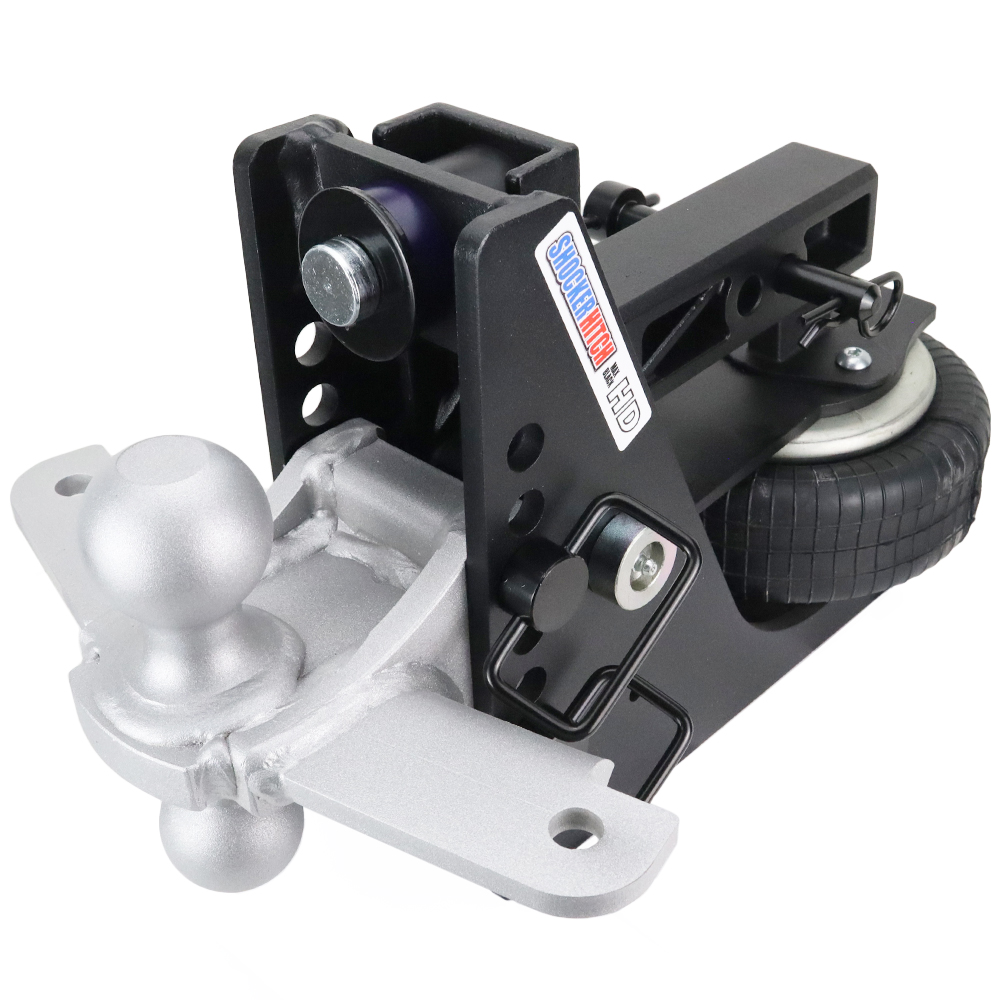

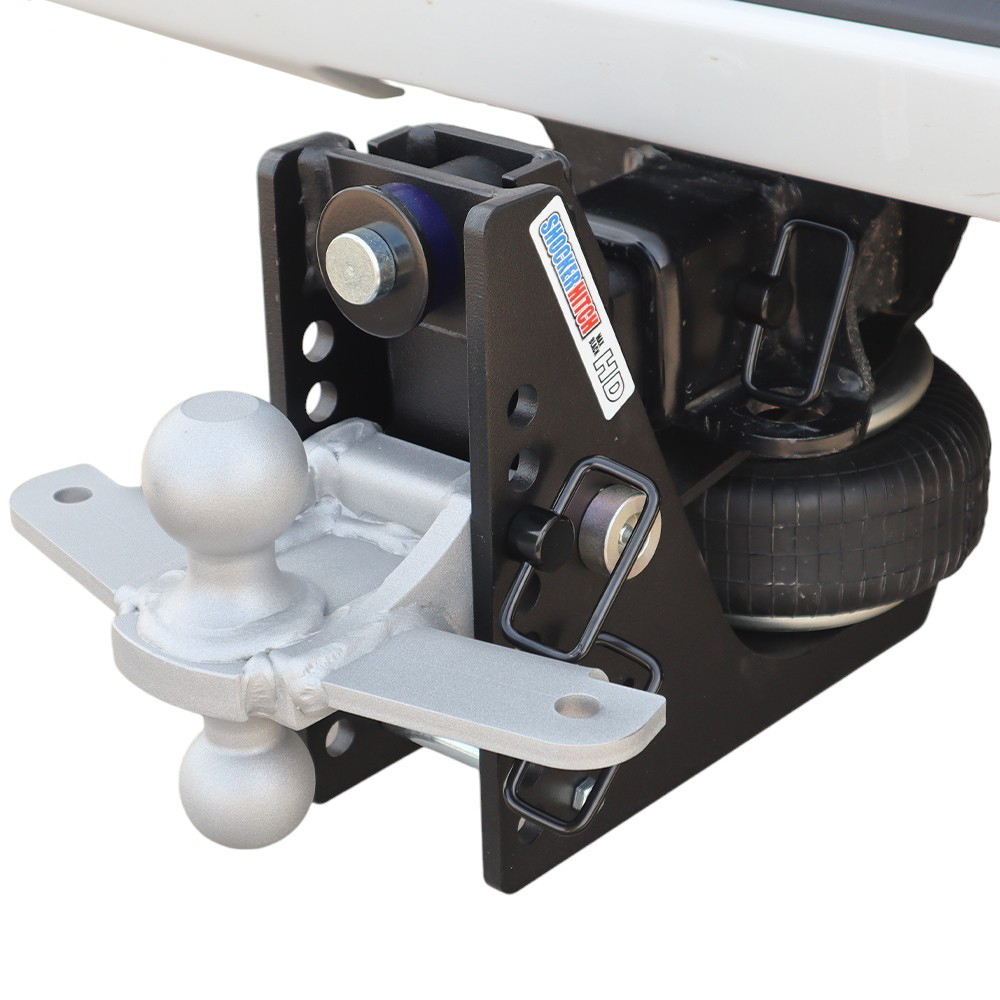

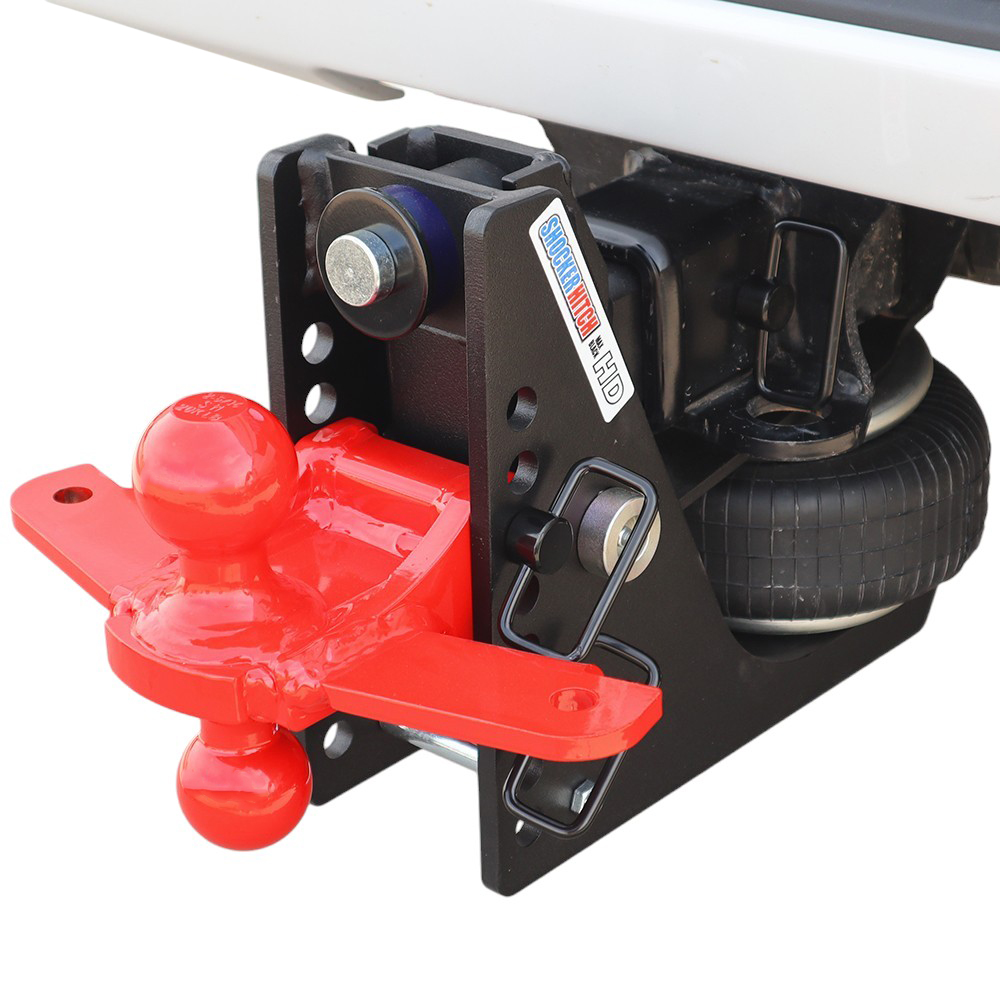

      – Combo Ball: 0″ Rise to 4.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.

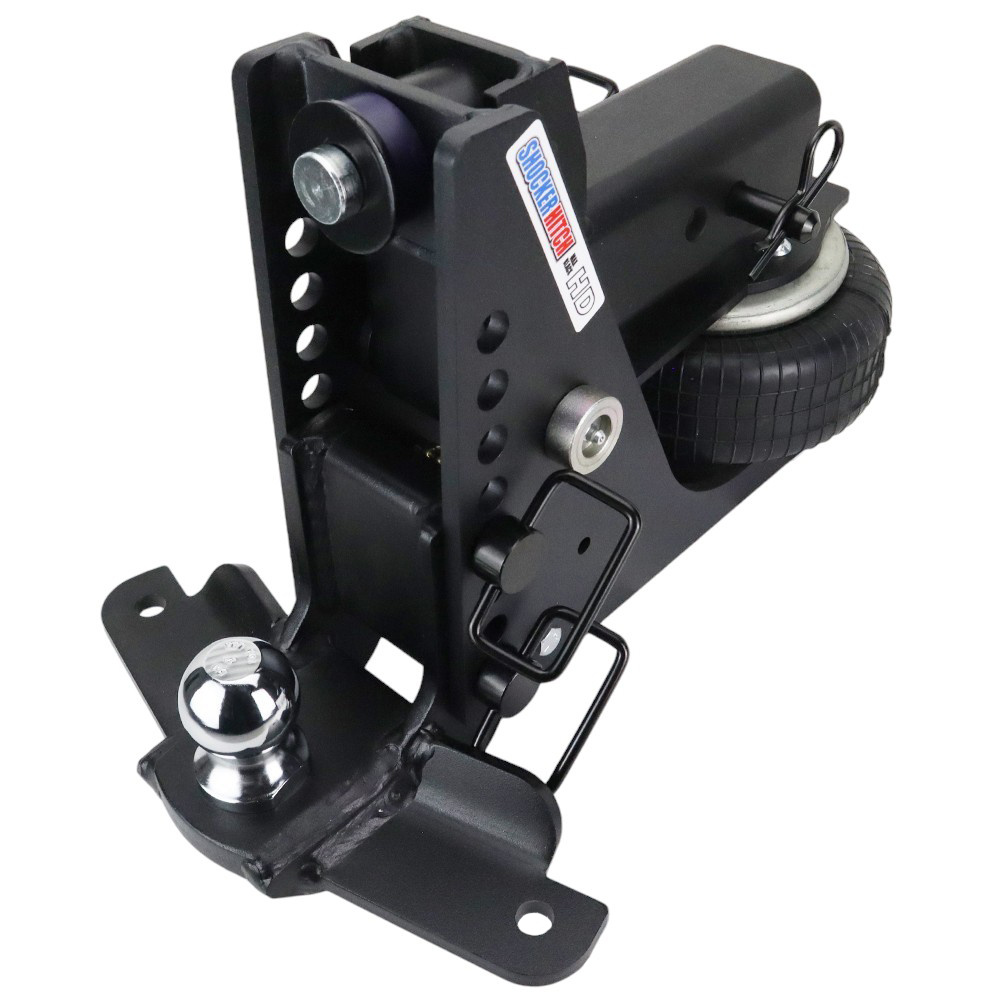

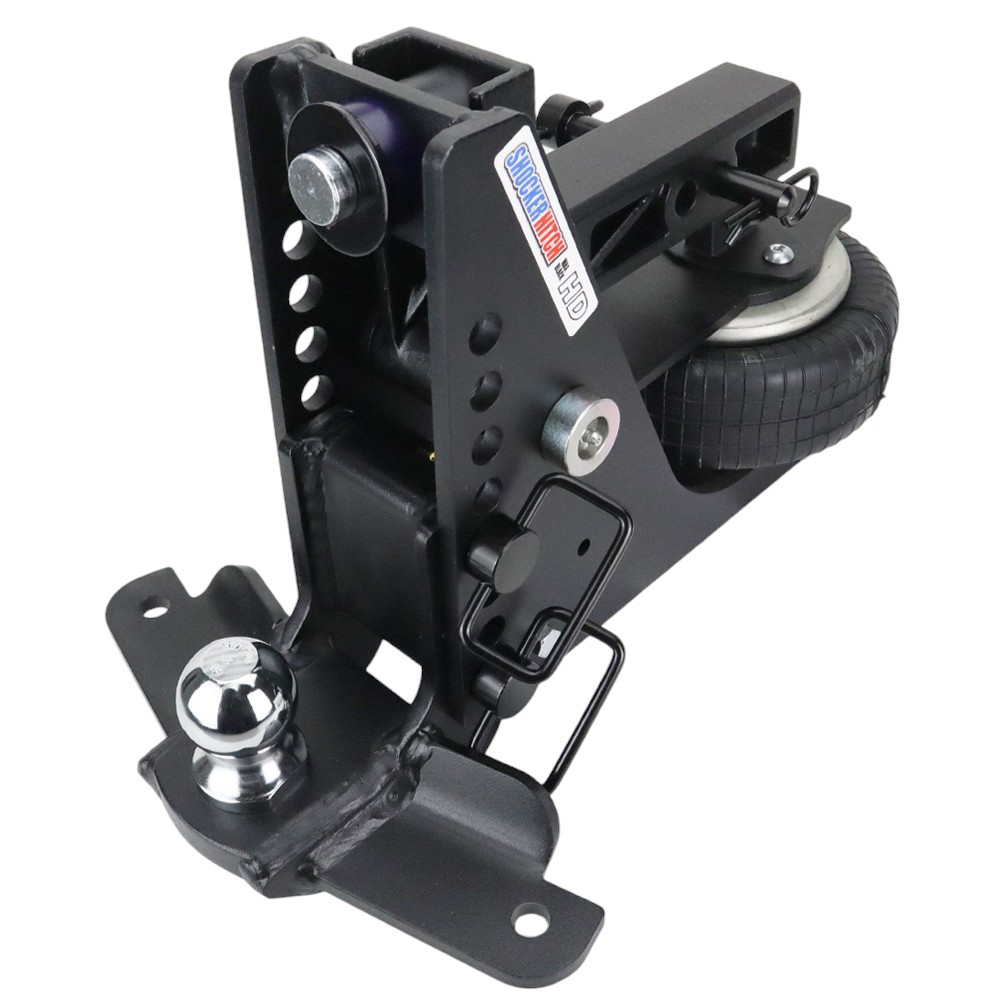

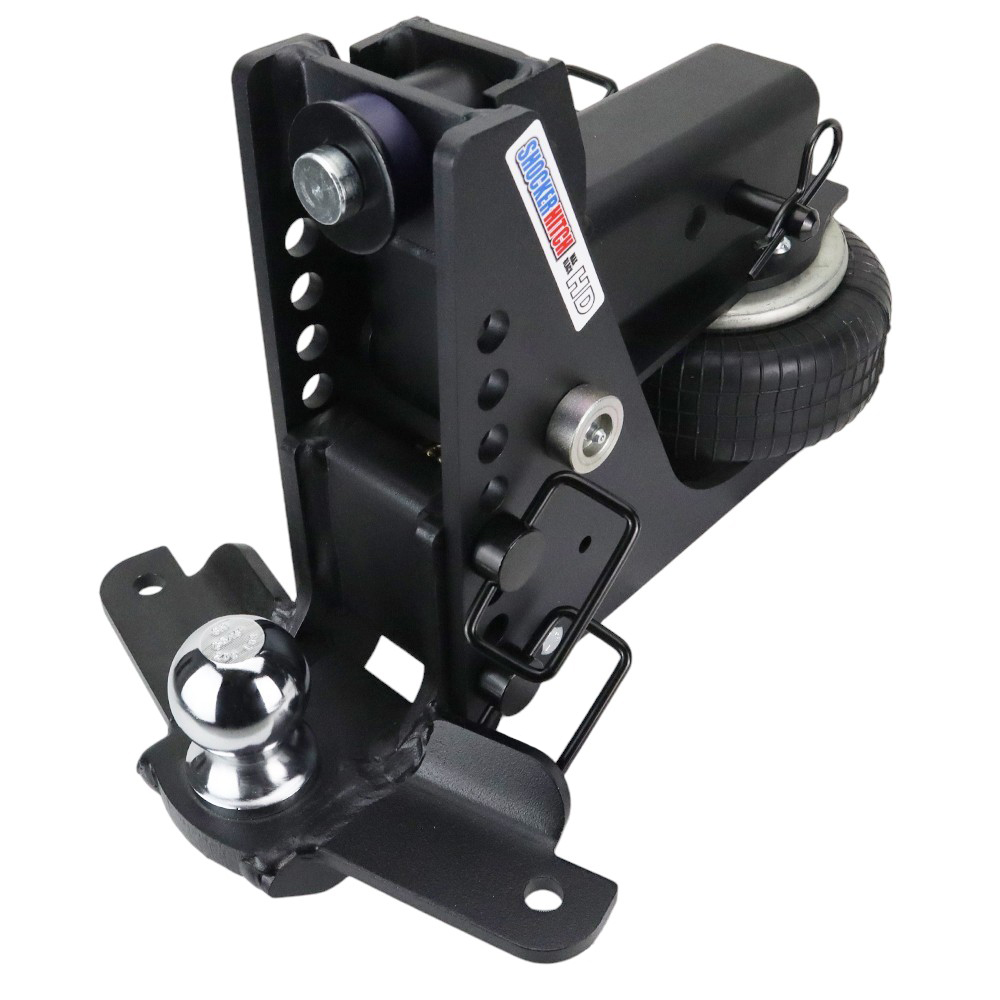

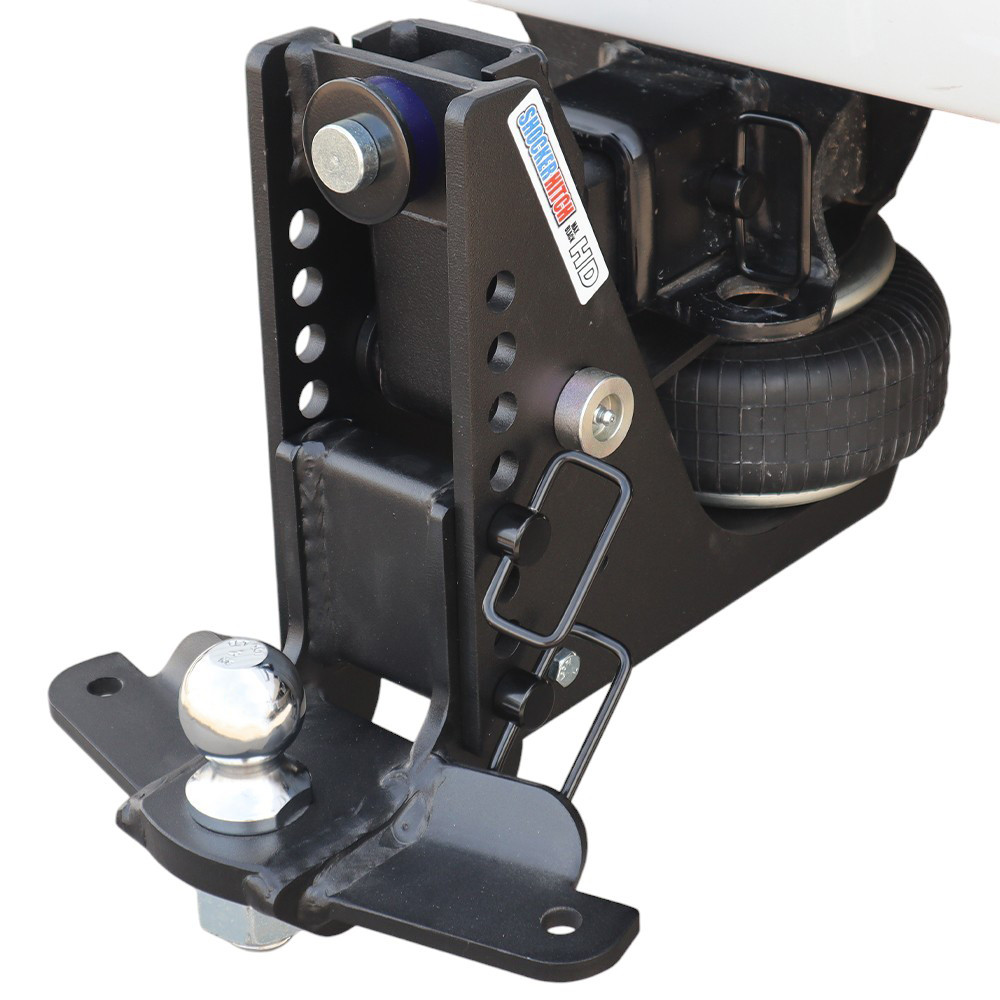

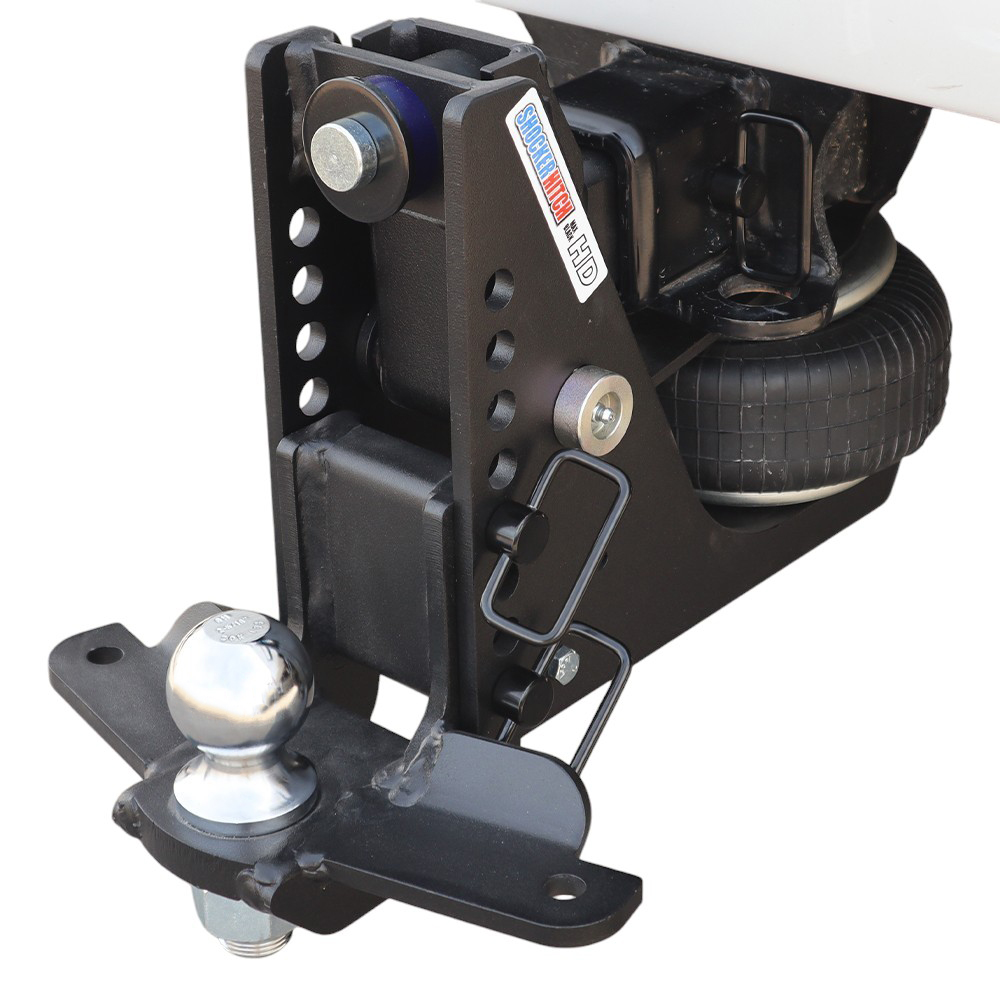

      – Drop Ball: 4.5″ to 8.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.

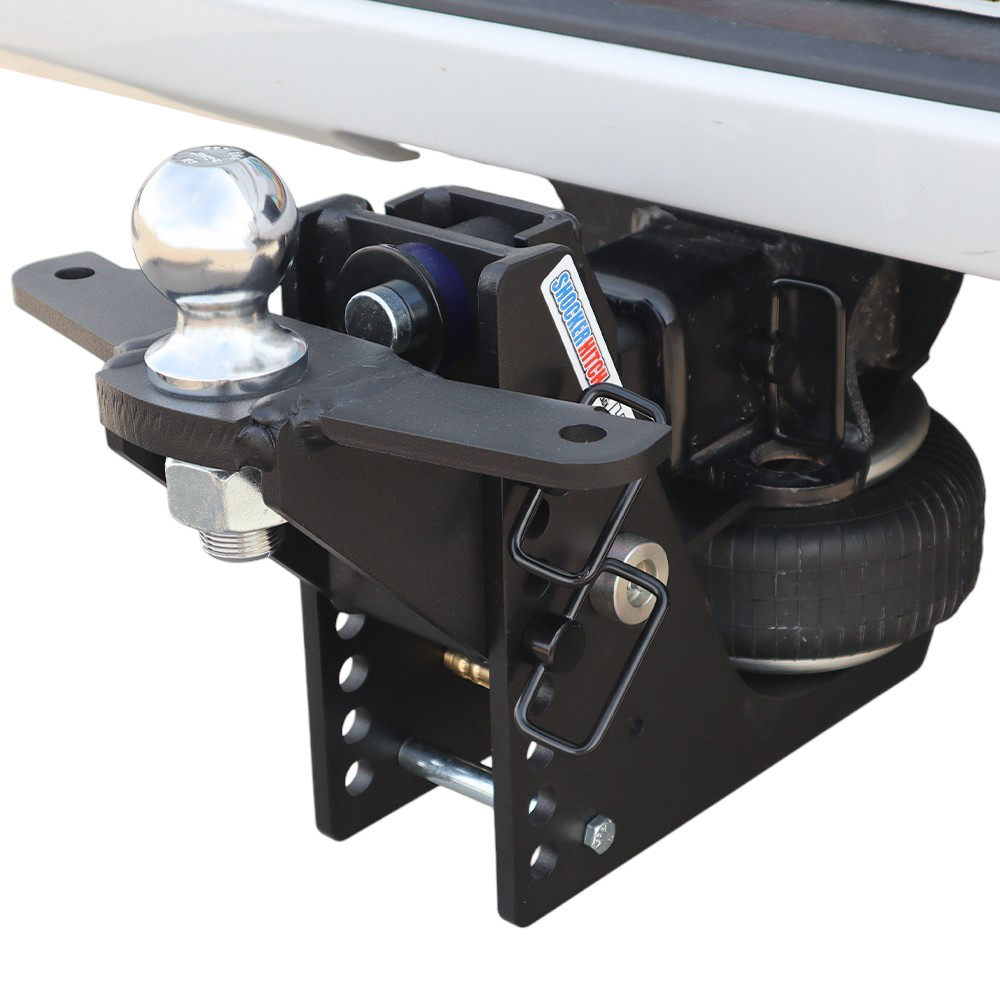

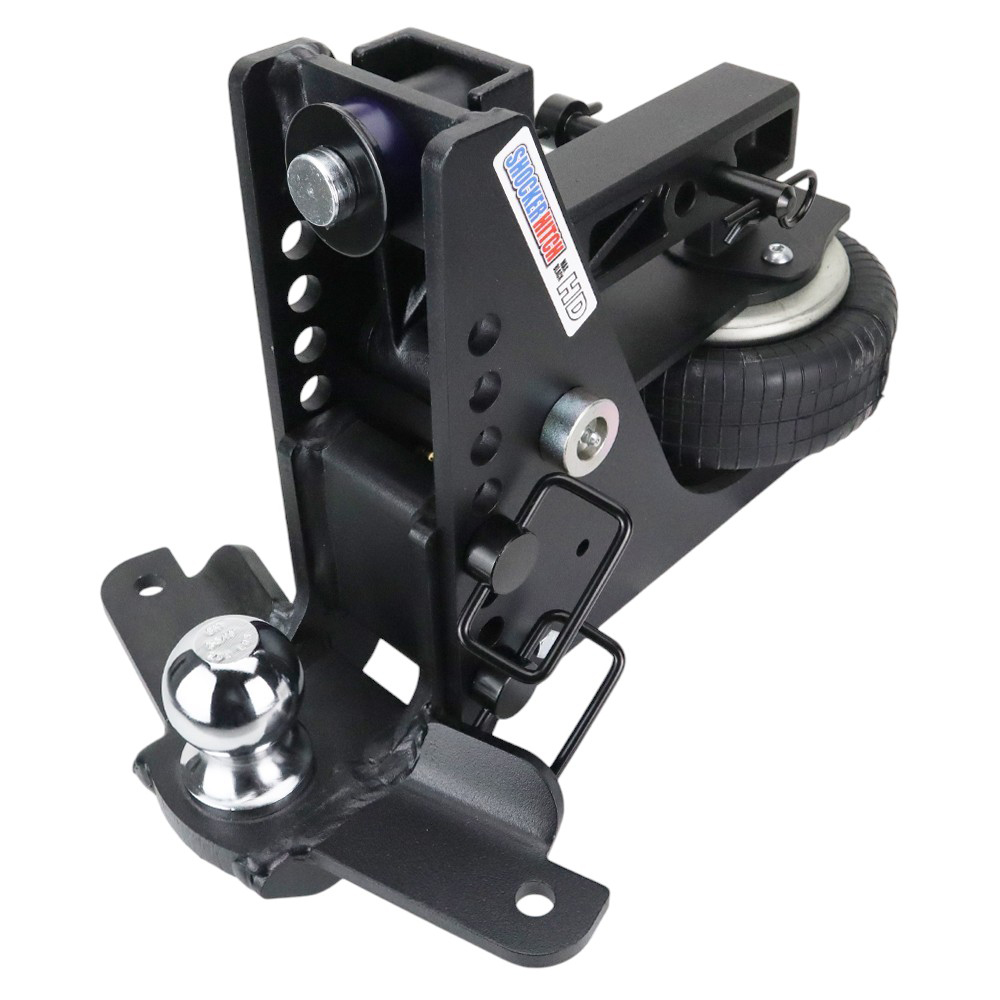

      – Raised Ball: 2″ Rise to 2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.

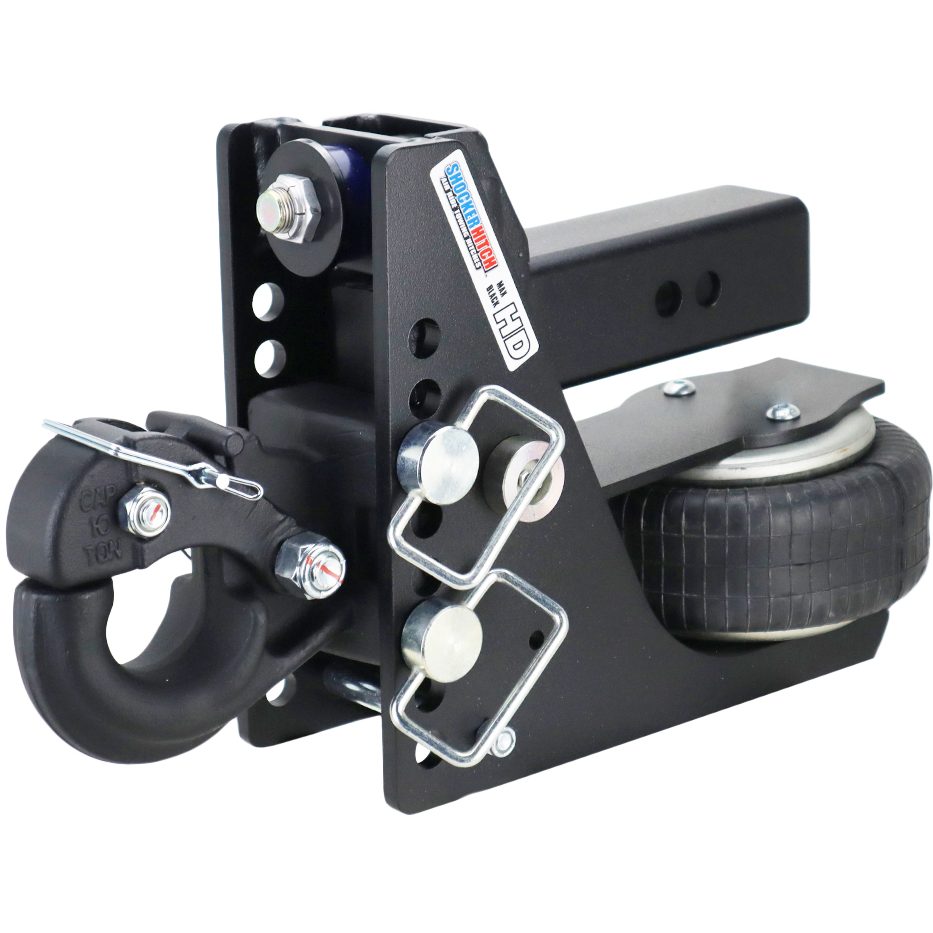

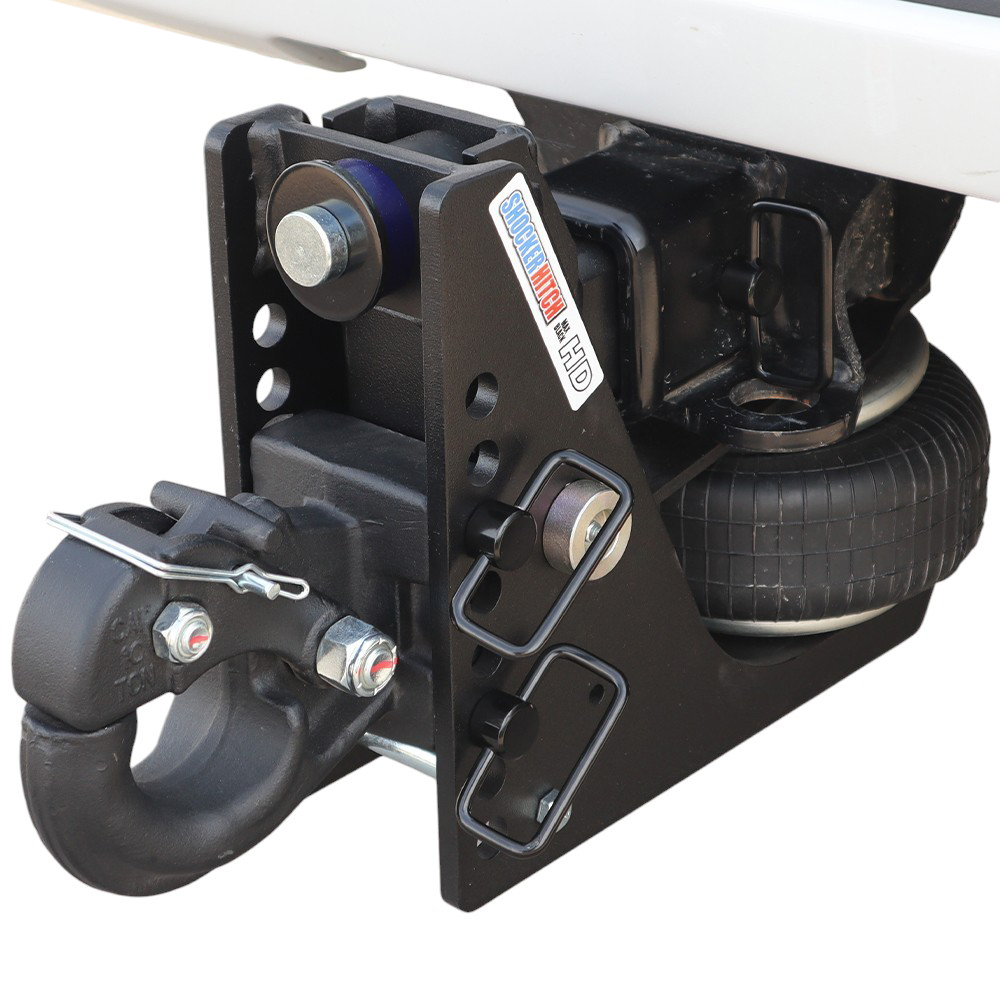

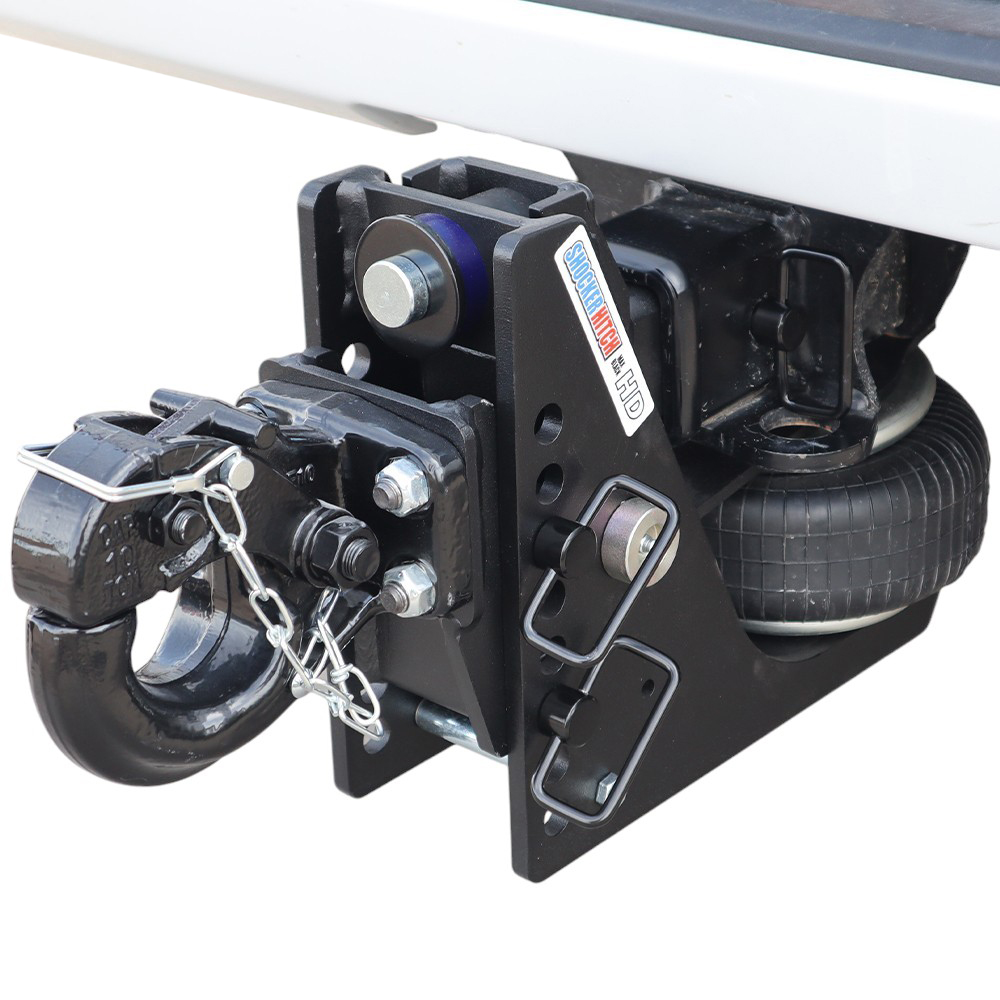

       Pintle Hook: 2.5″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.

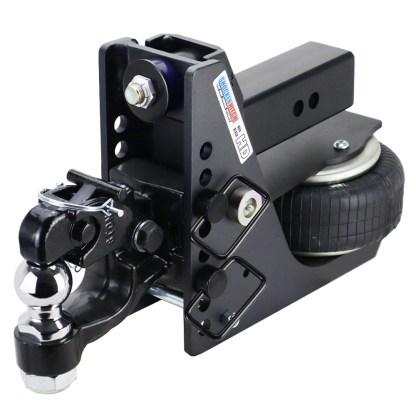

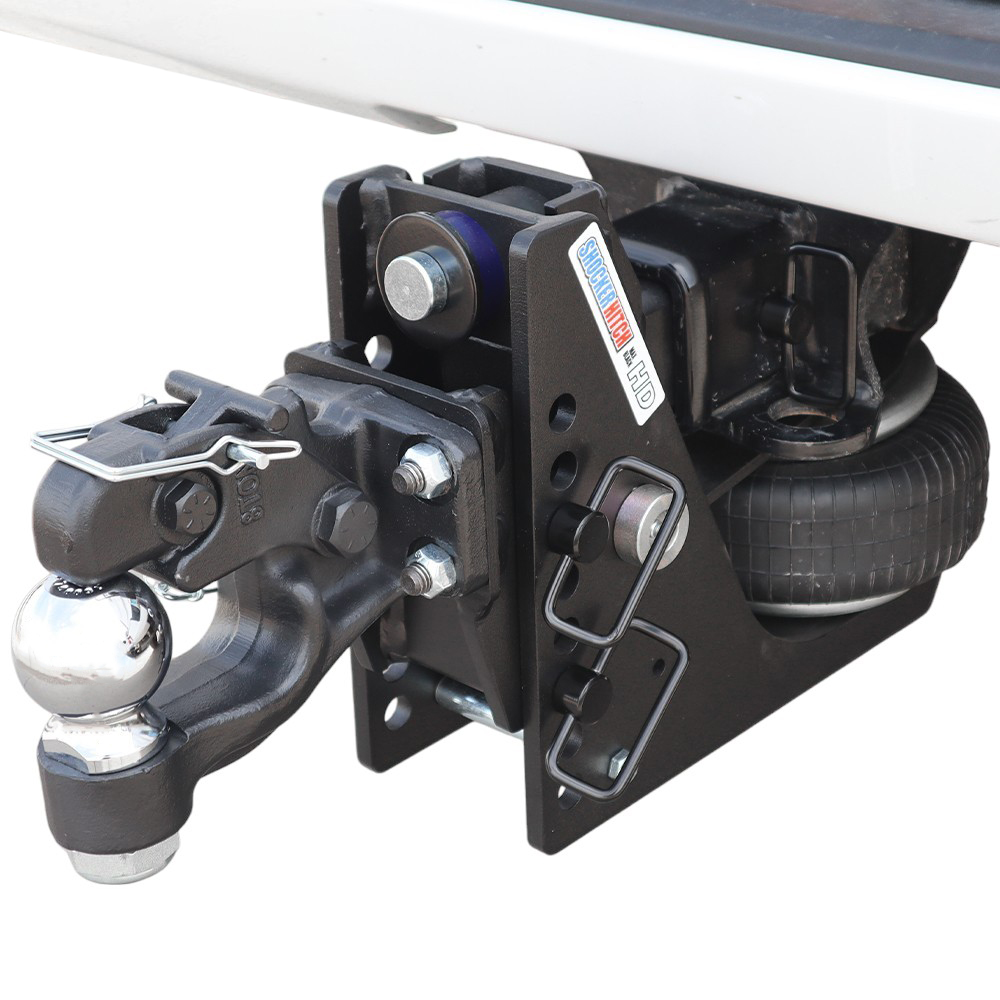

      – Pintle & Ball: 2.5″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).

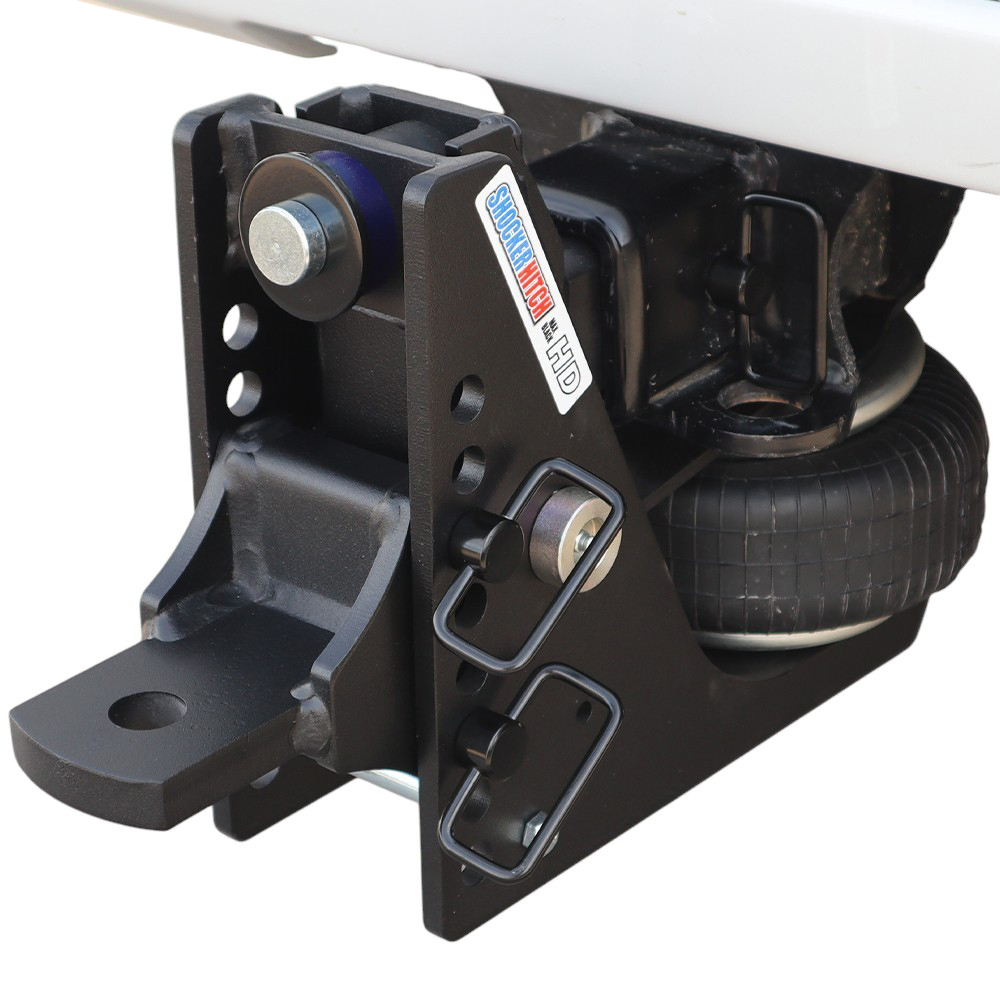

      – Drawbar: 0″ Rise to 4.5″ Drop | 20,000 lbs.

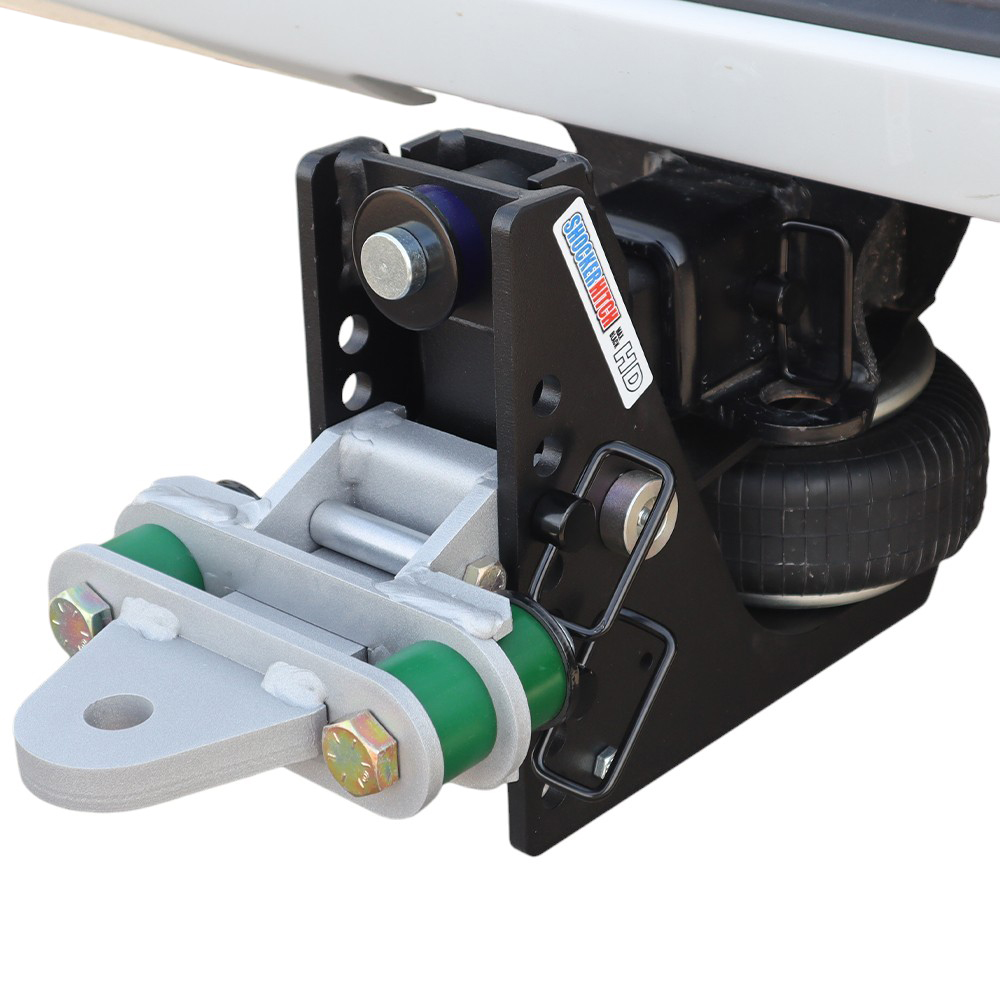

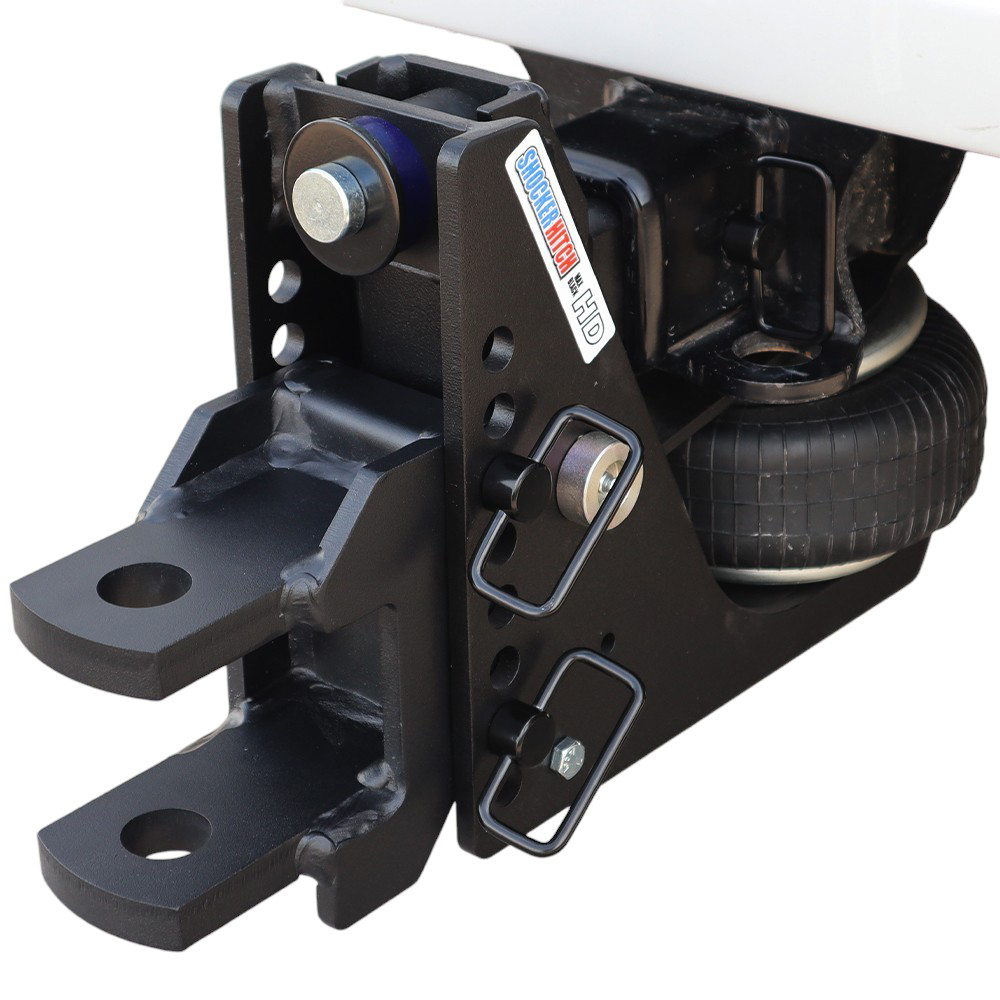

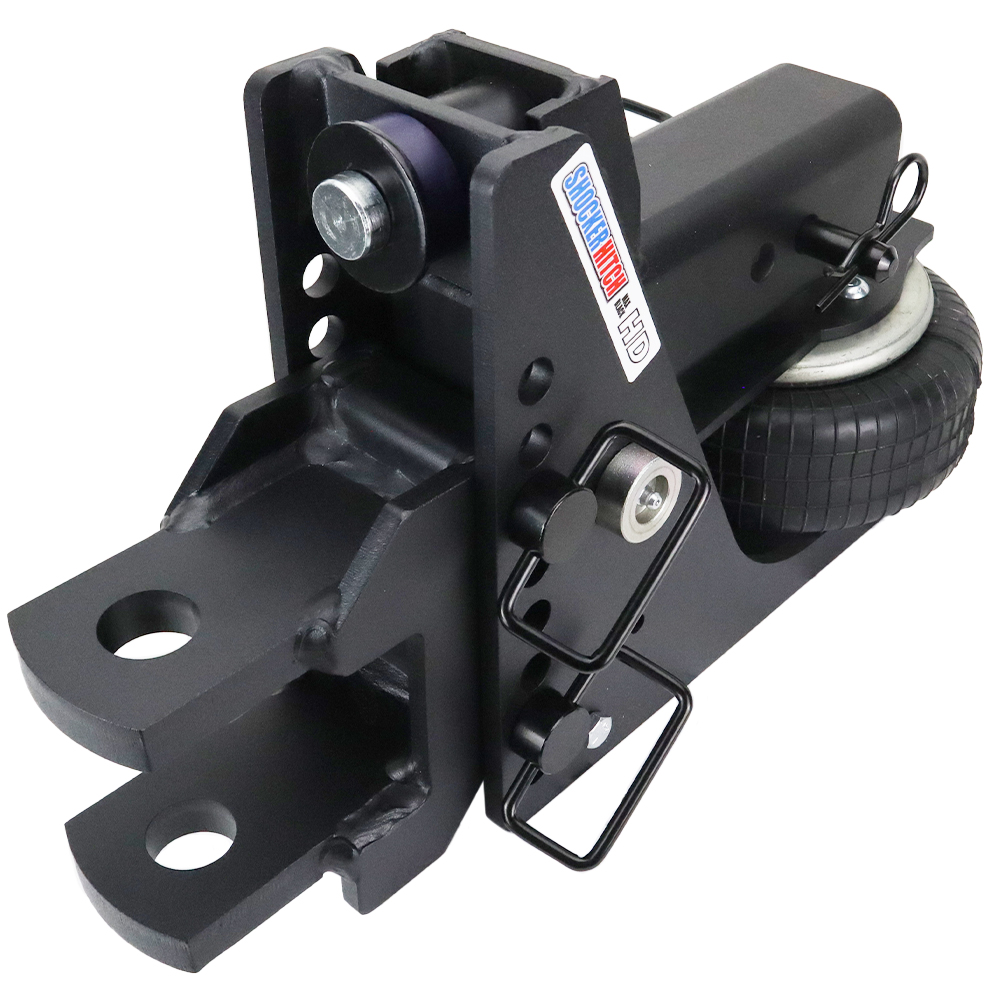

      – Clevis Mount: 3.5″ Drop to 5.5″ Drop | 20,000 lbs.

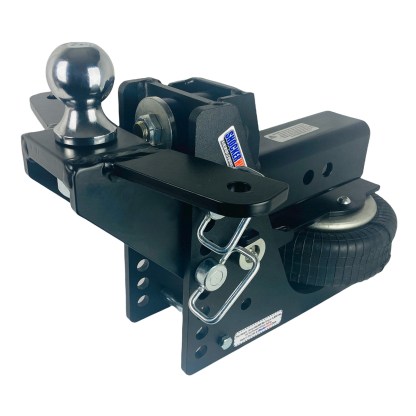

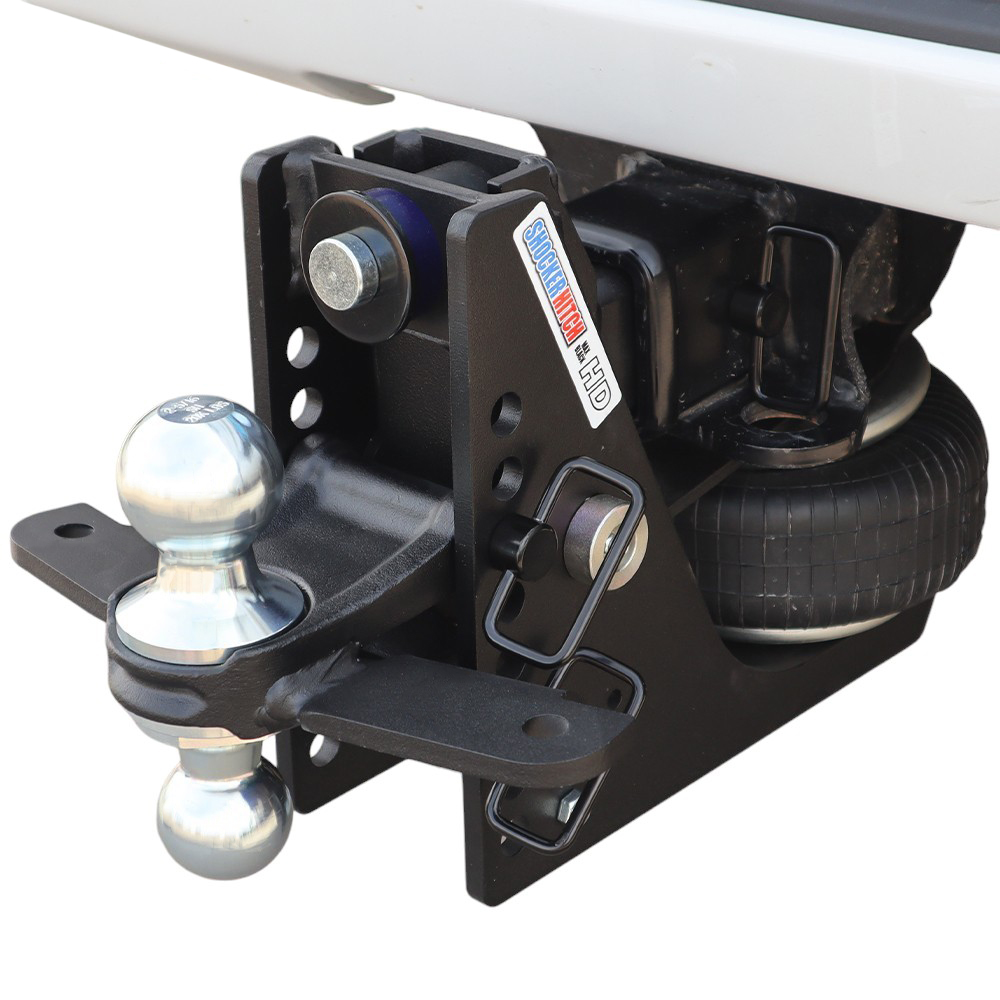

      – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above.
    • Impact Cushion Hitch Mount Drop & Rise + Rating Guide:
      – Combo Ball: 4″ Rise to 4″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Drop Ball: 0″ Rise to 7.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Raised Ball: 5″ Rise to 3″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
       Pintle Hook: 4″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
      – Pintle & Ball: 4″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Drawbar: 3.5″ Rise to 3.5″ Drop | 20,000 lbs.
      – Clevis Mount: 1.5″ Rise to 5.5″ Drop | 20,000 lbs.
      – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above.
    • XR Series 8 Hole Hitch Mount Drop & Rise + Rating Guide: (Add 1.5″ if Using 10-Hole Frame)
      – Combo Ball: 4″ Rise to 4″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Drop Ball: 0″ Rise to 7-1/2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Raised Ball: 5″ Rise to 3″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
       Pintle Hook: 6″ Rise to 6″ Drop | 10-Ton 20,000 lbs.
      – Pintle & Ball: 6″ Rise to 6″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Drawbar: 4″ Rise to 4″ Drop | 20,000 lbs.
      – Clevis Mount: 1-1/2″ Rise to 6-1/2″ Drop | 20,000 lbs.
      – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above

    Safety Notice: It’s important you read and follow the tongue & gross towing weight recommendations of all components of your trailer towing set up. This includes the tow vehicle, receiver hitch, tow hitch, ball mount attachment, trailer coupler & the ratings of the trailer you are towing. Never exceed max for any of the components you are using.  If the coupler rating is 8,000 lbs and the hitch is 12,000 lbs, then don’t tow over 8,000 lbs.

    Check out our guide to find out how much drop or rise you need.

  • Warranty arrow

    Warranty

    This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Smooth Towing Guarantee. View our online Warranty Registration Form to register your Shocker Hitch.



  • FAQ arrow

    FAQ

    Answers to Frequently Asked Questions

    How much air do I put in the Shocker Air Bumper Mount Receiver Hitch?
    With your trailer hooked up to the tow vehicle, and loads positioned for transport, air up shocker until main frame rotates and lightly compresses top bushing (about 1/8″ of squeeze or pinch in the bushing). See our quick How To Set PSI in Shocker Bumper Hitch Video.

    Will the Shocker Air Bumper Hitch work with Equalizer or Weight-Distribution?  If you are just use sway bars that hook to a mini ball, then yes, if you order the combo sway control ball mount attachment. If you have a equalizer or weight distribution hitch then it will not. However, check out our Air Equalizer for weight distribution hitches.  Note: If your pickup suspension can handle the weight of your trailer and doesn’t “squat” when you hook up your trailer to pickup, then you really don’t need a weight distribution hitch. A load leveling weight distribution hitch, distributes the weight between the pickup and trailer and is generally used if your pickup can’t handle the static trailer tongue weight load.

    How long will it hold air? This is a sealed system that will hold air for weeks or months. If you haul the same trailer with the same load weight, it should be good for quite some time.

    How long will the airbag last? Our airbags are an industrial bag and will last for years and years. They are similar to truck airbags but have been beefed up internally for our towing applications.

    How strong is the center pivot bolt?  The main pivot bolt with grease zerk, or center pivot bolt, used on the shocker air bumper hitch, is a custom made 1 inch diameter 1045 medium carbon steel bolt. Strategically heat treated to prevent wear and includes a machined grease passage for easy lubrication and maintenance. It should be noted that the yield strength of the 1″ pivot bolt exceeds the two 5/8″ bolts used to hold the typical ball coupler or receiver hitch.

    How do I know the Shocker Air receiver hitch will fit my truck?
    We have made sure that the receiver air shocker will fit into most Ford, Chevy, GMC Dodge, Toyota, Nissan & Honda Pickups, Vans & SUV’s (SUV’s were the receiver is under the bumper). There are some clearance issues with the Chevy Envoy, Ford Explorer, some imports and service body vehicles where the body extends below the receiver tube or the receiver tube is inside the bumper.  The Shocker Air receiver hitch is available in a 2″, 2 1/2″ & 3″ shank.

    How far below my pickup does the receiver air shocker hang? Five inches below bottom of receiver tube.

    How often do I grease it? The grease does not just lube the pivot; it also keeps water and dirt out. You cannot over grease it, once every few months should do it.

    Does the receiver air hitch work with sway bars?
    Yes, it works with the friction style sway control bar, however you want to order a ball mount with sway bar tabs. See our sway bar tab ball mount attachments.

    How does the Air hitch work? The Receiver air shocker is like a teeter totter. One end is an air bag, a pivot in the middle, and a ball at the other end. This gives a “pillow” effect at the ball end.

    Should I tighten up the top jam nut on the receiver shocker? No. The air shocker needs at least one half inch of play to work properly.

    How long do the bump cushions last? This depends on if the hitch is left on the truck year round or not. If they bump cushions become mushy, you should replace them. Typical life expectancy is 5-7 years.

    How much does an Shocker Air bag receiver hitch weigh? The Receiver Air Shocker weighs 50-55 pounds

  • Q & A (12) arrow

    Questions and answers of the customers

      Distance from the pin to the center of the ball on the shocker 20k hitch
    1. 0 votes
      Q Distance from the pin to the center of the ball on the shocker 20k hitch
      There are no answers for this question yet.
    2. How strong does the portable air compressor need to be in order to fill back to max PSI?
    3. 0 votes
      Q How strong does the portable air compressor need to be in order to fill back to max PSI?
      A Most portable air compressors will be adequate to fill the bag, as there is not much volume, even a hand bicycle pump will air up the bag.
    4. What is the cushioned drawbar used for? Can you mount a ball onto it? Or would I just get a normal ball mount?
    5. 0 votes
      Q What is the cushioned drawbar used for? Can you mount a ball onto it? Or would I just get a norma...... Read more
      A The cushion draw bar would be used for 4 wheel trailers with no tongue weight, for example, anhydrous tanks, bale wagons etc. they are not designed for tongue weight.
    6. Do you ship to Australia or have a dealer here
    7. 0 votes
      Q Do you ship to Australia or have a dealer here
      A

      Yes we do have an Shocker Hitch Dealer in Australia

      Val mobile: 0418 786 952
      Roger mobile: 0457 814 997



    8. Is the 20k HD hitches safe for GMC’s PRO tailgate to fold down into a step, or will it hit?
    9. 0 votes
      Q Is the 20k HD hitches safe for GMC’s PRO tailgate to fold down into a step, or will it hit?
      A

      Our Shocker Hitch frames are too tall for the step section of the multi-pro tailgate and will make contact.

    10. I have a pickup with a flat bed and a built in hitch. There is about 3 inches of metal under the hitch. Will the hd max adjust to accommodate for this?
    11. 0 votes
      Q I have a pickup with a flat bed and a built in hitch. There is about 3 inches of metal under the ...... Read more
      A

      Unfortunately, you may need to modify that section of your hitch for our airbag to slide underneath the receiver. You could also check out our Shocker 20K Impact Max with the link here: https://shockerhitch-vip.md-staging.com/product/impact-max/

    12. I have a 15860 Curt hitch on a 2019 Silverado 3500hd drw. I have seen some issues with safety chains holes being partially covered by the airbag. Will this be a concern for me ?
    13. 0 votes
      Q I have a 15860 Curt hitch on a 2019 Silverado 3500hd drw. I have seen some issues with safety cha...... Read more
      A

      We have not had any issues with safety chains being compatible with our hitches at all. Sometimes the safety chains can come a little close to the airbag but it would not affect the hitch at all.

    14. I have a 2020 Silverado truck with a 2-1/2 receiver and tow a 30 ft. 7500 pound trailer with a 400 pound tongue weight. What Shocker air hitch with the 2-5/16" & 2" ball do you recommend?
    15. 0 votes
      Q I have a 2020 Silverado truck with a 2-1/2 receiver and tow a 30 ft. 7500 pound trailer with a 40...... Read more
      A

      With the trailer that you are towing, you are able to use either our 12k air hitch or our HD 20k. Both of them are offered with a combo ball mount that offers 1/2" to 4-1/2" of drop. Most people like going with the HD due to the versatility of being able to use it on light trailers as well by using less air. So either hitch will work great for you its just a matter of what capacity you would like to go with.

    16. Will black shocker 2” work on 2023 Yukon
    17. 0 votes
      Q Will black shocker 2” work on 2023 Yukon
      A

      Would you be able to send a few pictures of the receiver on your Yukon to info@shockerhitch.com. We can take a look and see if our hitch is compatible with your model.

    18. Can I add my Rock Tamer Mud flap system to the back of shocker hitch HD 20K
    19. 0 votes
      Q Can I add my Rock Tamer Mud flap system to the back of shocker hitch HD 20K
      A Hello, With the Rock Tamer style that slide on the shank of the hitch can cause binding as it can get pinched between the air bag and bottom of the receiver. We do offer our Quick Clip under bumper tow flaps that work will all of our bumper hitches. A link for the Quick Clips is below. If you have any other questions feel free to contact us at 701-707-2666. Thanks https://shockerhitch-vip.md-staging.com/product/under-bumper-tow-mud-flaps/
