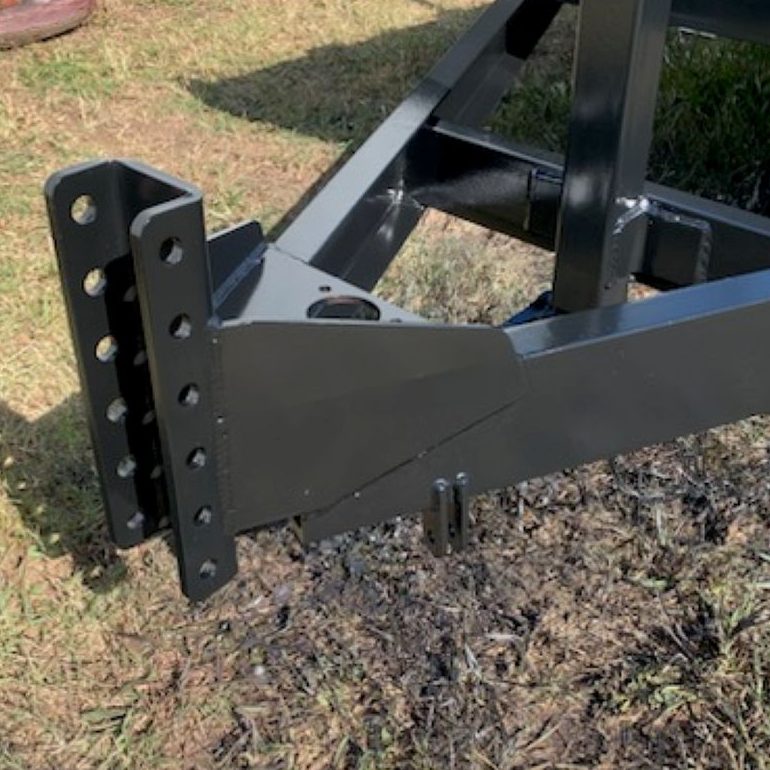

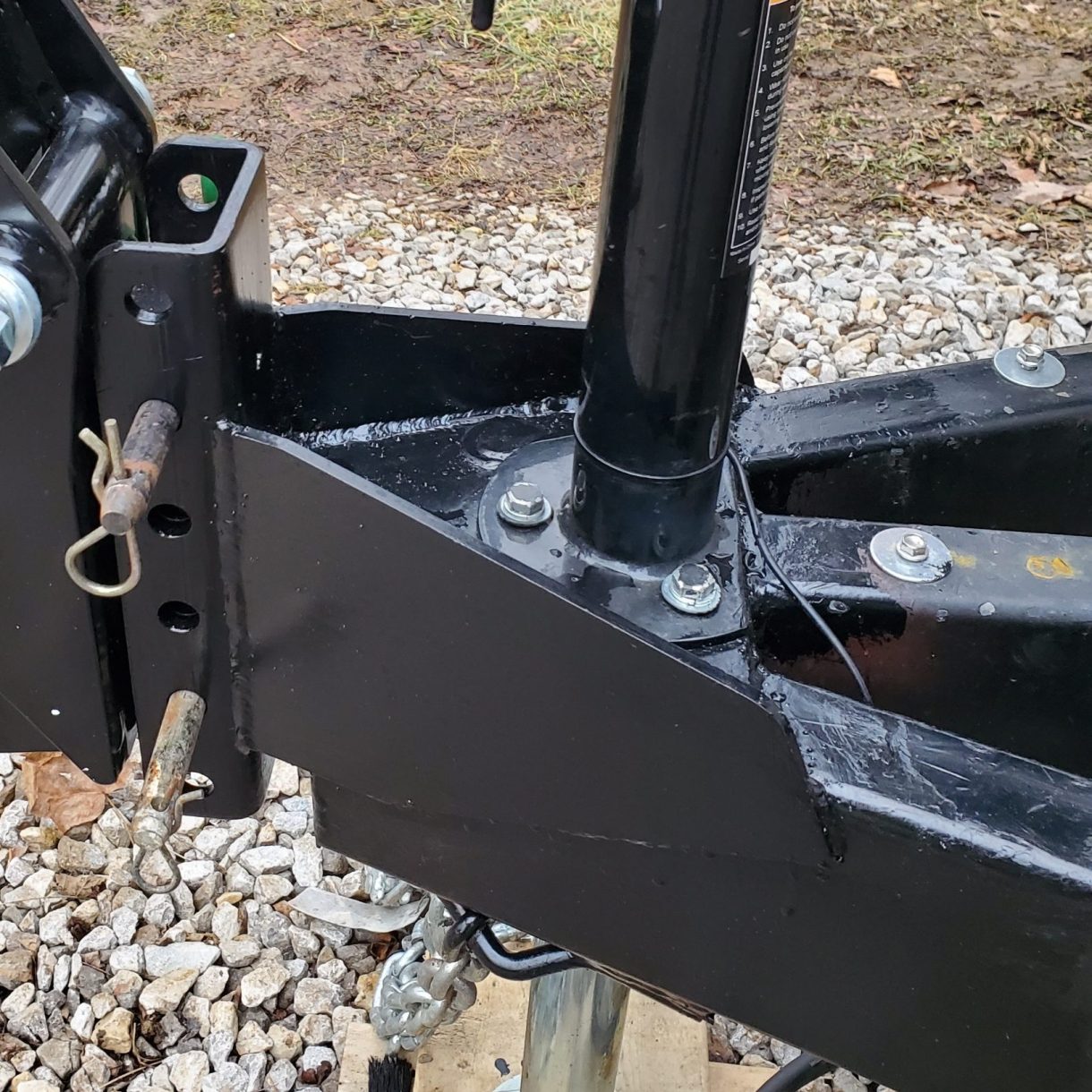

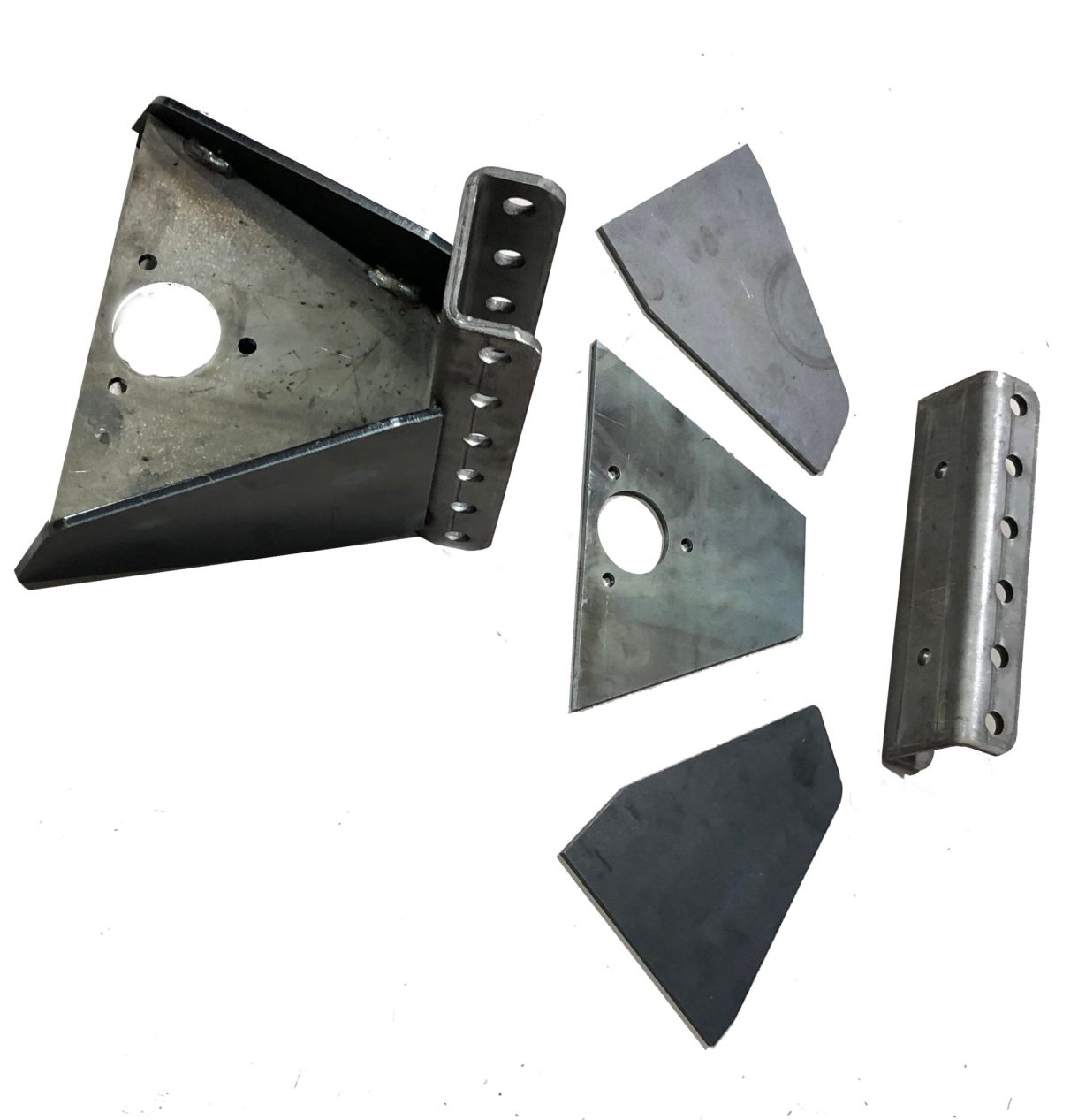

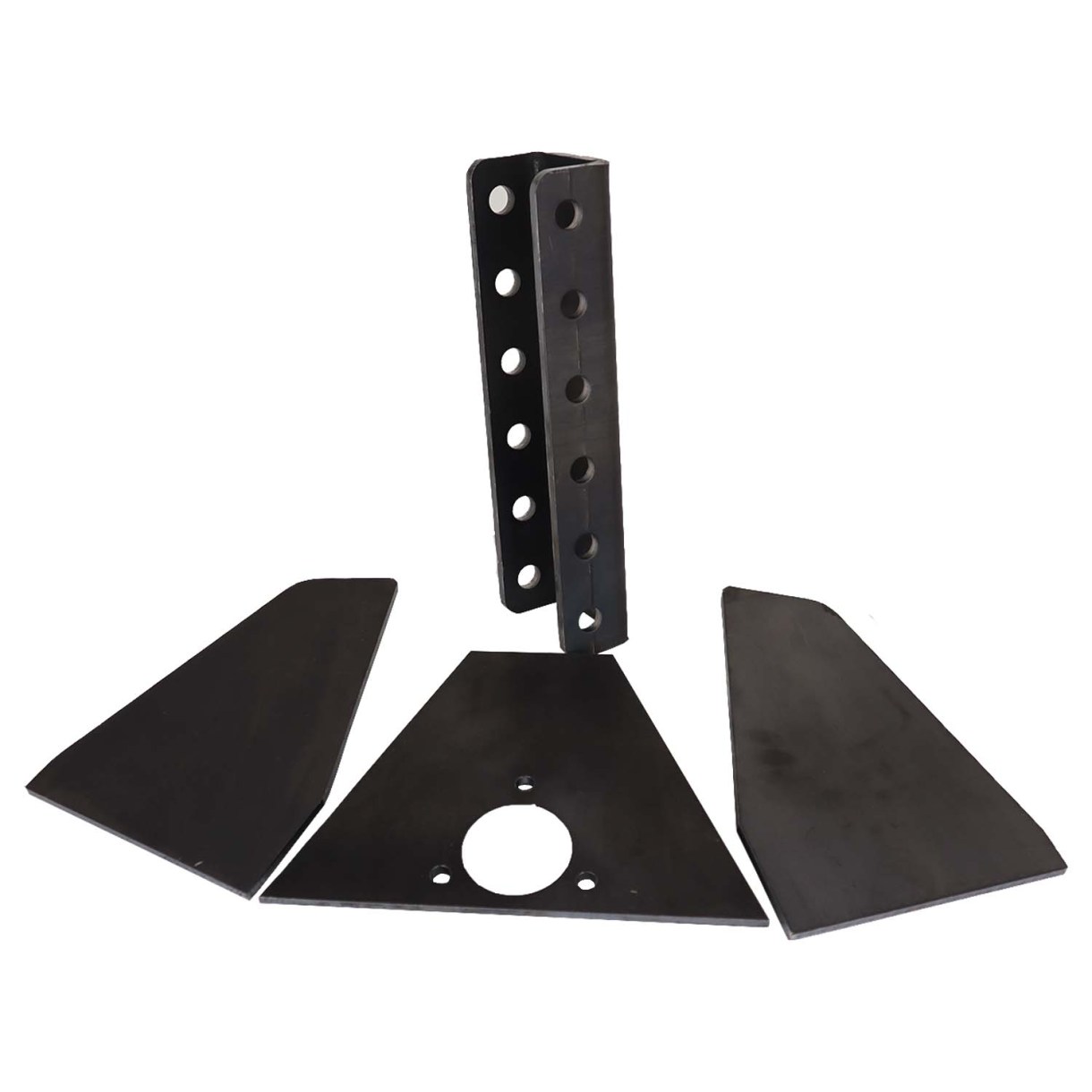

Vertical Channel Weld On Tongue Adapter for Trailer A-Frames – up to 20,000 lbs GTW

Rated 5.00 out of 5 based on 10 customer ratings

$109.99$129.99$124.99$159.99

Free Ground Shipping*
Usually Ships on or Before Tue 02/27/24
Usually Ships on or Before Tue 02/27/24
Usually Ships on or Before Tue 02/27/24
Clear
OR

-

  • Warranty arrow

    Warranty

    This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Guarantee.

    Shocker Hitch Guarantee

  • Q & A (10) arrow

    Questions and answers of the customers

      What’s the measurements on the side plates
    1. 0 votes
      Q What’s the measurements on the side plates
      A

      The largest point is just over 6" Tall and about 9" long.

    2. If I drill my own holes in the coupler, could I used it as a bolt-on for my aluminum frame stealth enclosed trailer ?
    3. 0 votes
      Q If I drill my own holes in the coupler, could I used it as a bolt-on for my aluminum frame stealt...... Read more
      A

      Yes some folks will drill holes into the weld on tongue adapter and bolt it to an aluminum a-frame.  We wouldn't recommend drilling holes in your ball coupler only.  You would want a ball coupler or pintle ring that has the channel holes to bolt to this vertical channel.

    4. Do you offer install service at your location?
    5. 0 votes
      Q Do you offer install service at your location?
      A

      Unfortunately, we do not offer install services at our shop at this time. However, if you check with one of your local trailer dealers they may be able to help you get that installed. Here is a link to our Dealer locator https://shockerhitch-vip.md-staging.com/dealers/

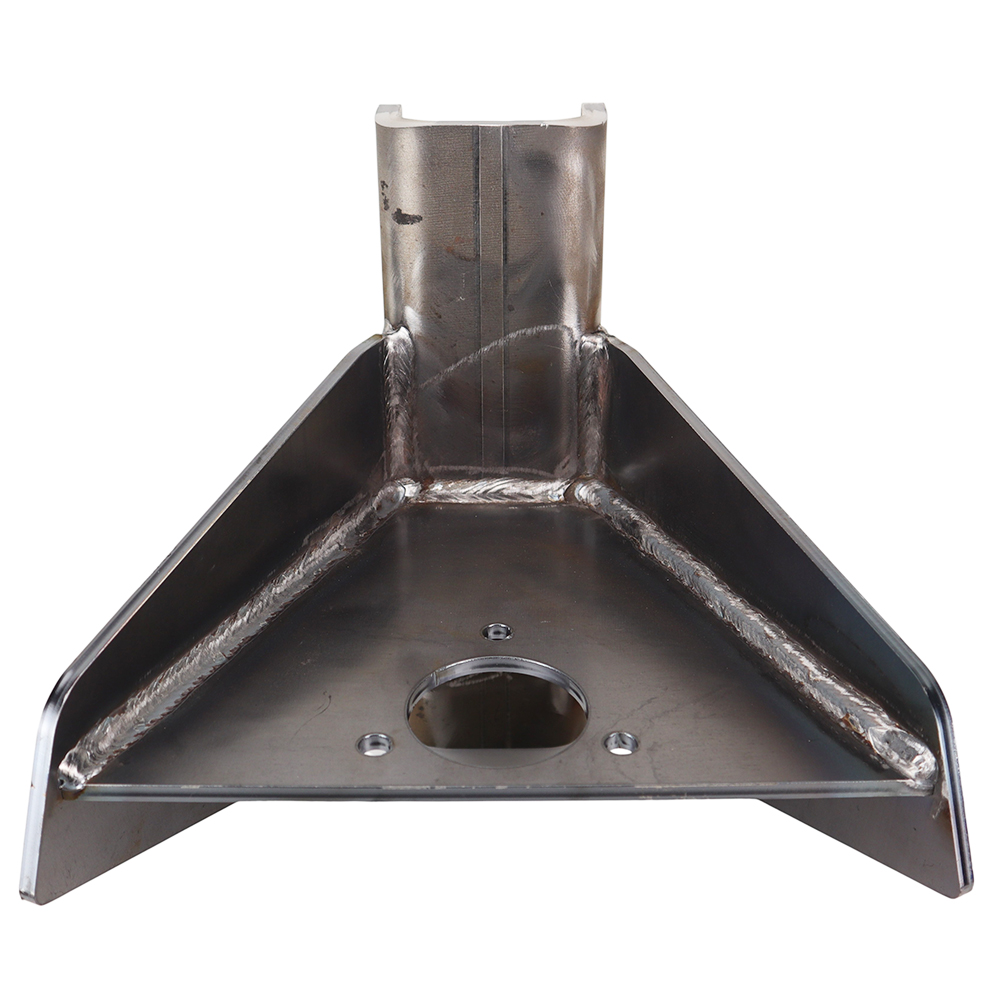

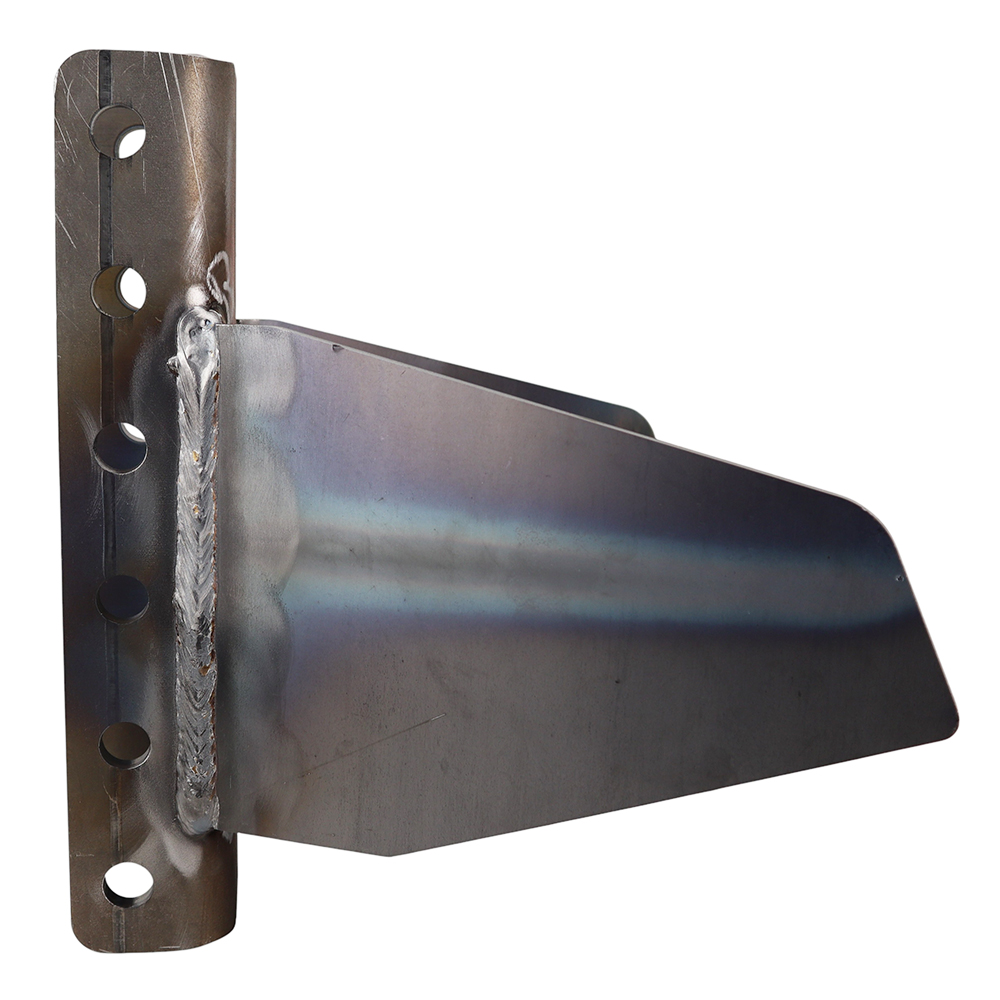

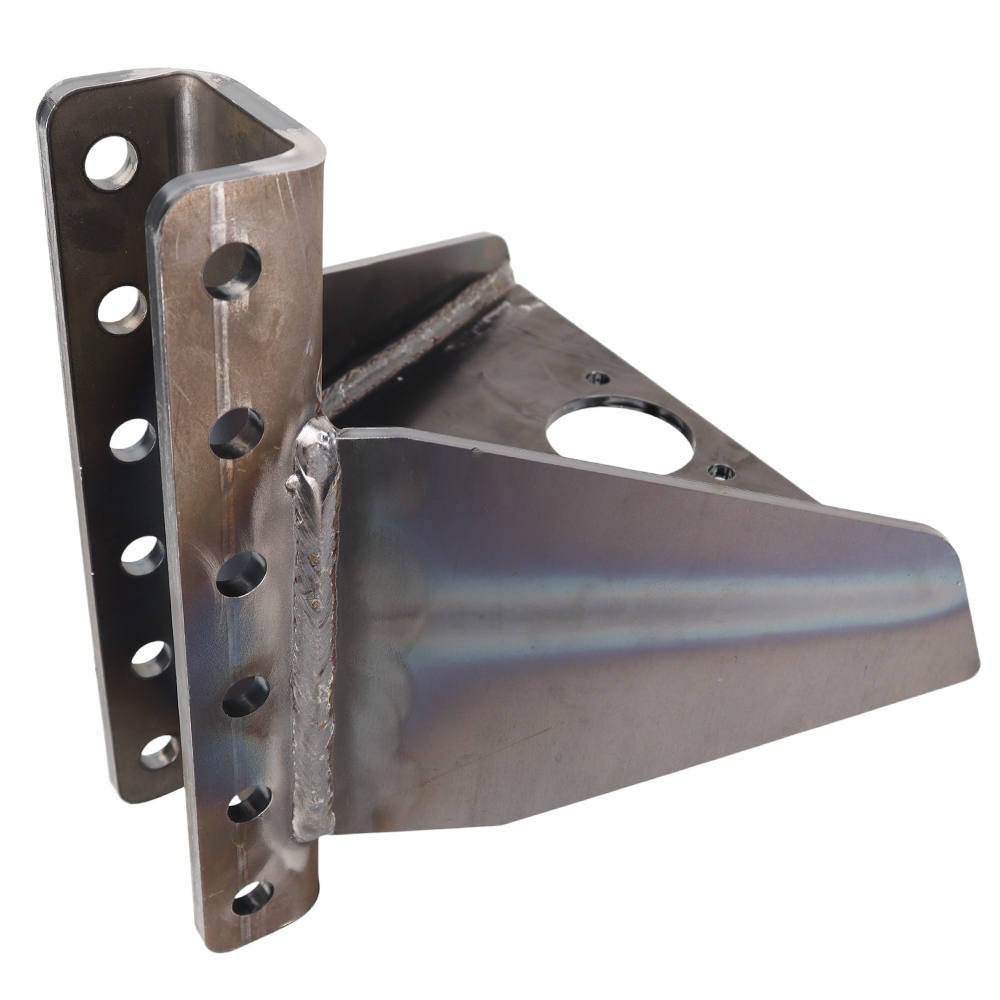

    6. Does the completely welded version only mount one way or can it be installed either way?
    7. 0 votes
      Q Does the completely welded version only mount one way or can it be installed either way?
      A

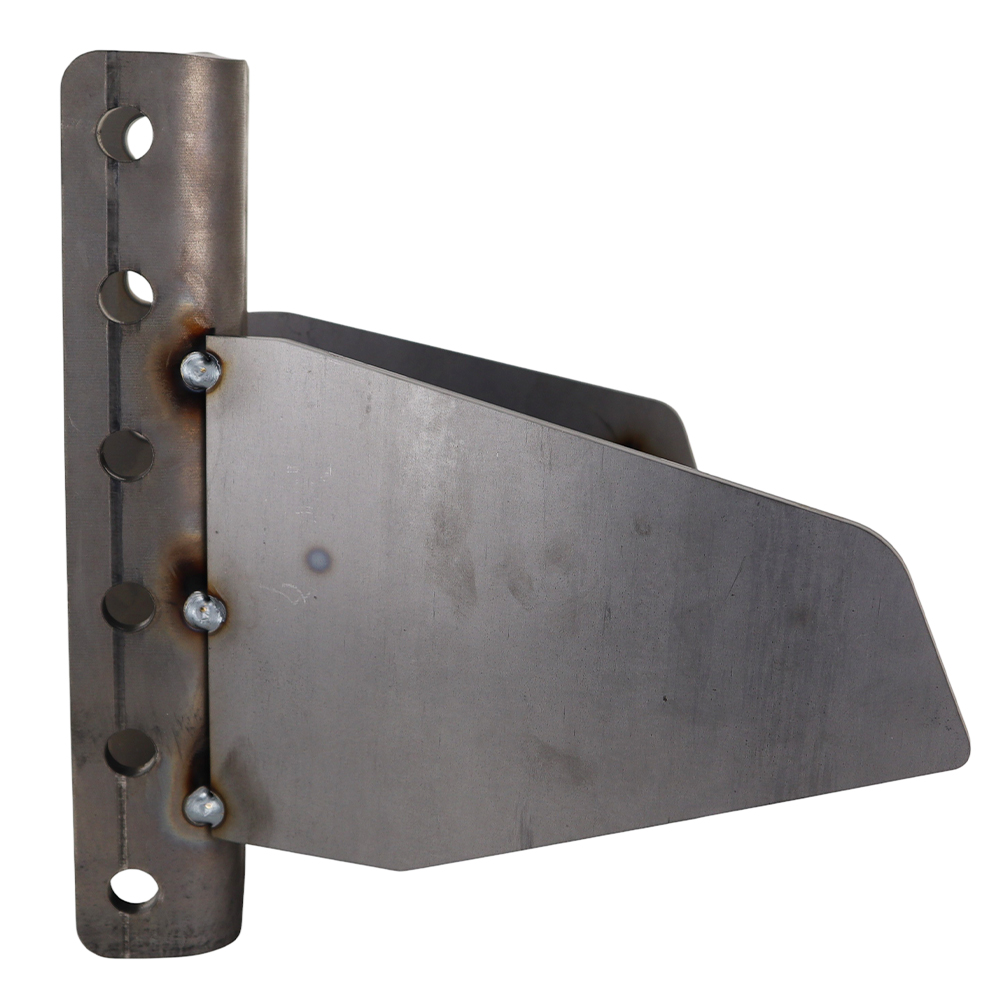

      The vertical mount channel can be mounted upside down in some applications. We also have a tack welded version that can be used to help fit it to your trailer and then be welded.

    8. Hi, Can this be ordered without the holes for the jack, just a solid top plate? Thanks!
    9. 0 votes
      Q Hi, Can this be ordered without the holes for the jack, just a solid top plate? Thanks!
      A

      Hello Chris, unfortunately the adapter is precut with the holes for a jack already  in it.

    10. What is the diameter of the hole for the Jack ?
    11. 0 votes
      Q What is the diameter of the hole for the Jack ?
      A The weld on vertical channel adaptor has the hole and three bolt pattern that is standard issue for most any camper tongue center mount jack. The hole diameter is 2 3/8" diameter.
    12. What is the max tongue weight using this with the 2 5/16 ball air ride
    13. 0 votes
      Q What is the max tongue weight using this with the 2 5/16 ball air ride
      A When using the Shockerhitch tongue mount hitch, this should be good for atleast 2000 lbs as the tongue mount shockerhitch is rated.
    14. What is the max tongue weight using this with the 2 5/16 ball air ride
    15. 0 votes
      Q What is the max tongue weight using this with the 2 5/16 ball air ride
      A

      When using the Shockerhitch tongue mount hitch, if using two bolts two mount the GTW is 1,400 lbs when using 4 bolts to mount the GTW is 2,000 lbs.

    16. Weight limit or max limits on this item??
    17. 0 votes
      Q Weight limit or max limits on this item??
      A If you are using 2 bolts then 14,000 lbs if using 4 bolts then 20,000 lbs that also assumes this kit is properly weld onto the trailer. You will also want to use a coupler that is rated at that capacity as well.
    18. What is the recommendations for max load capability for this item? I’m ordering the item pre-welded and requires spot welding for connections to trailer frame. Thanks
    19. 0 votes
      Q What is the recommendations for max load capability for this item? I’m ordering the item pre-weld...... Read more
      A If you are using 2 bolts then 14,000 lbs if using 4 bolts then 20,000 lbs that also assumes this kit is properly weld onto the trailer.
