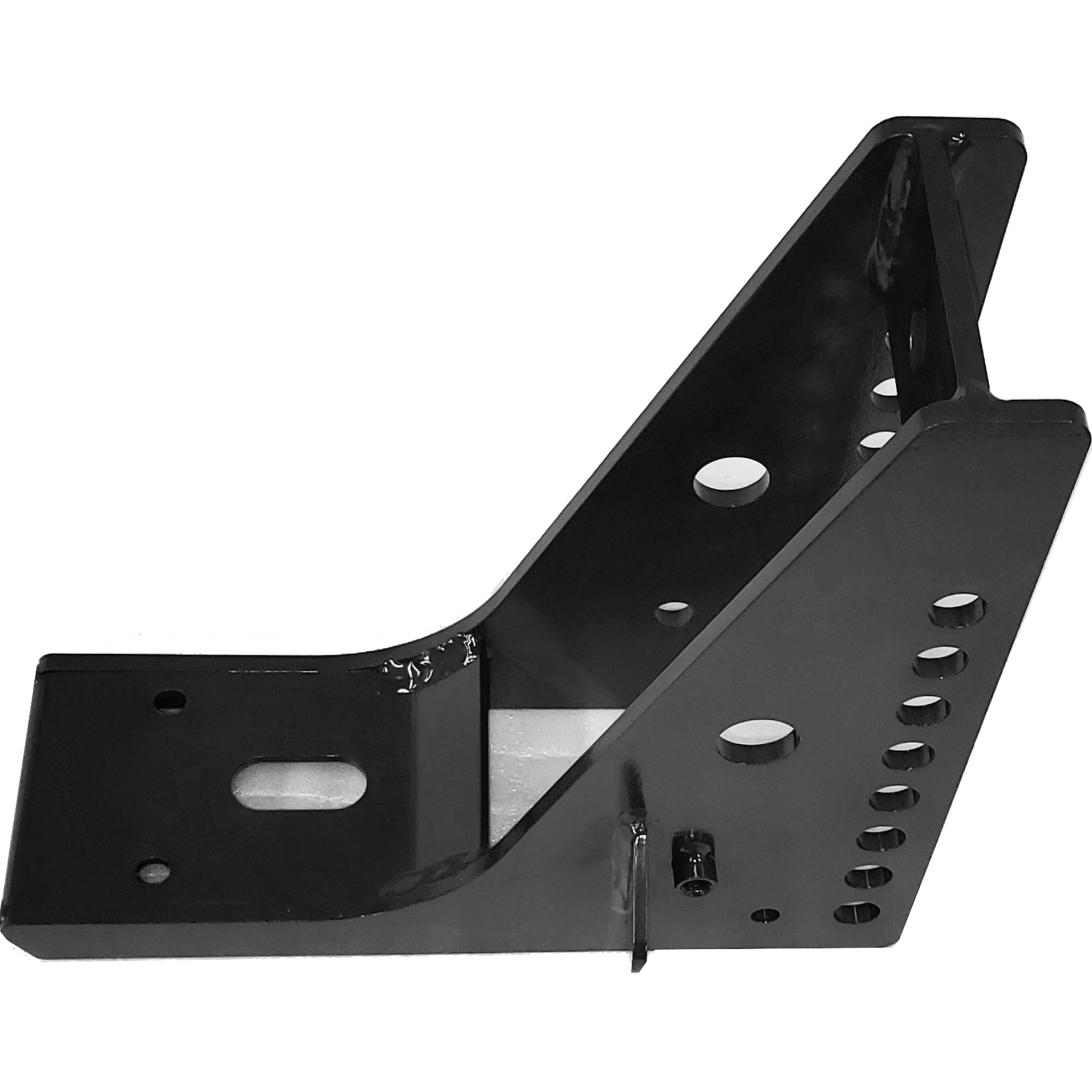

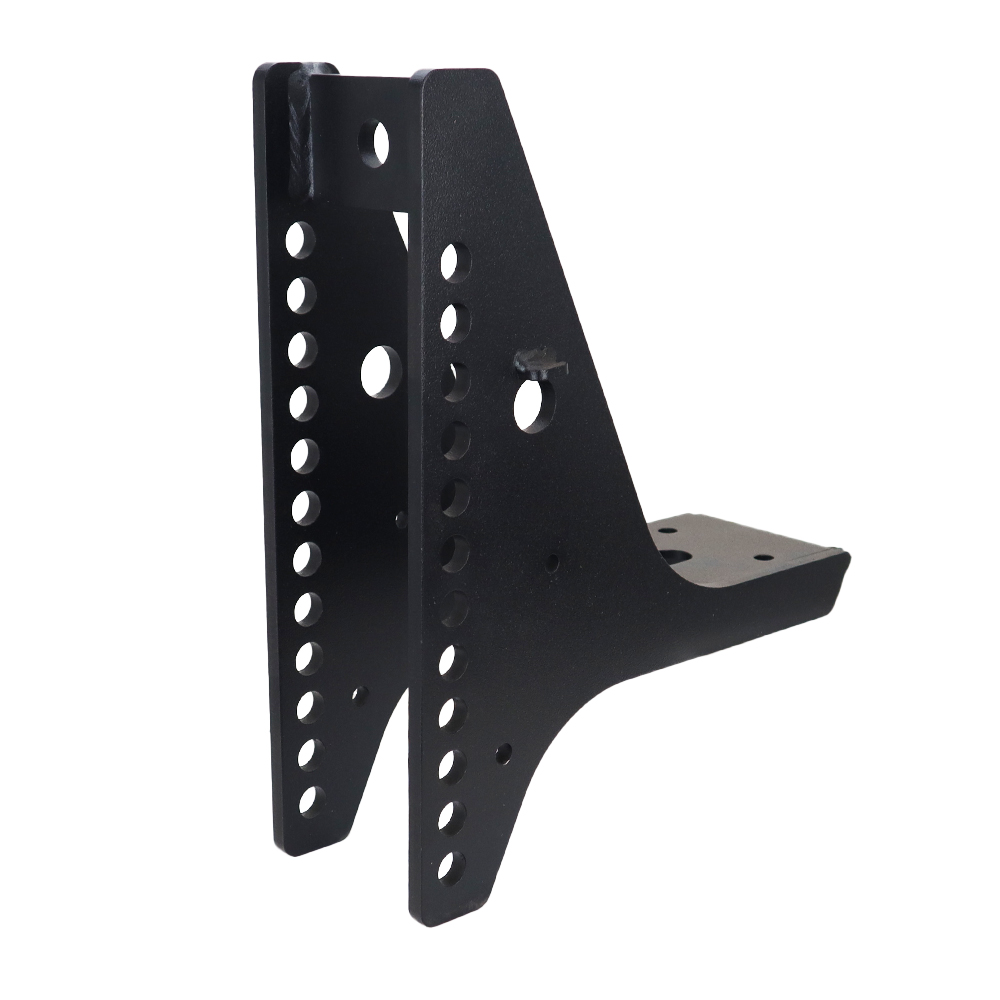

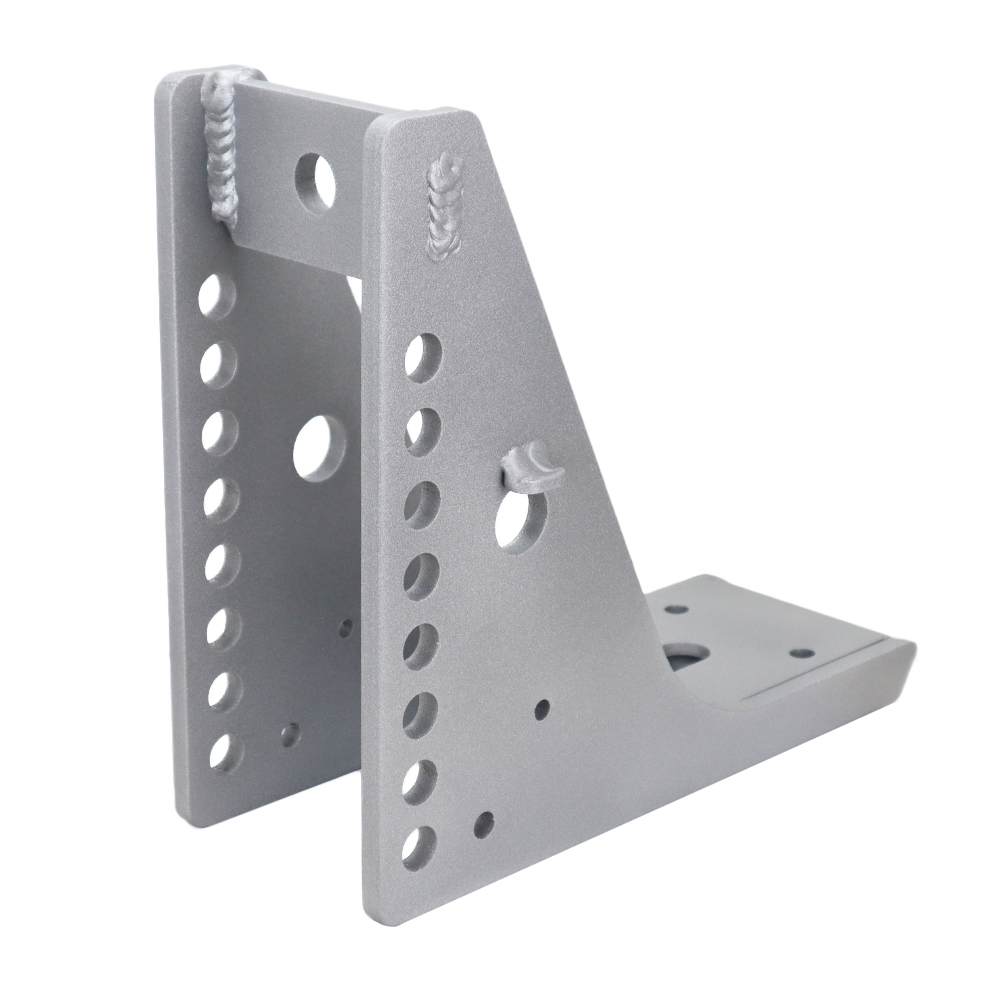

Replacement Outer Frame Only for Shocker Air & Cushion Bumper Hitches
8 adjustment holes for Air & HD Air & 7 Adjustment Holes for Impact & XRC Cushion Hitches

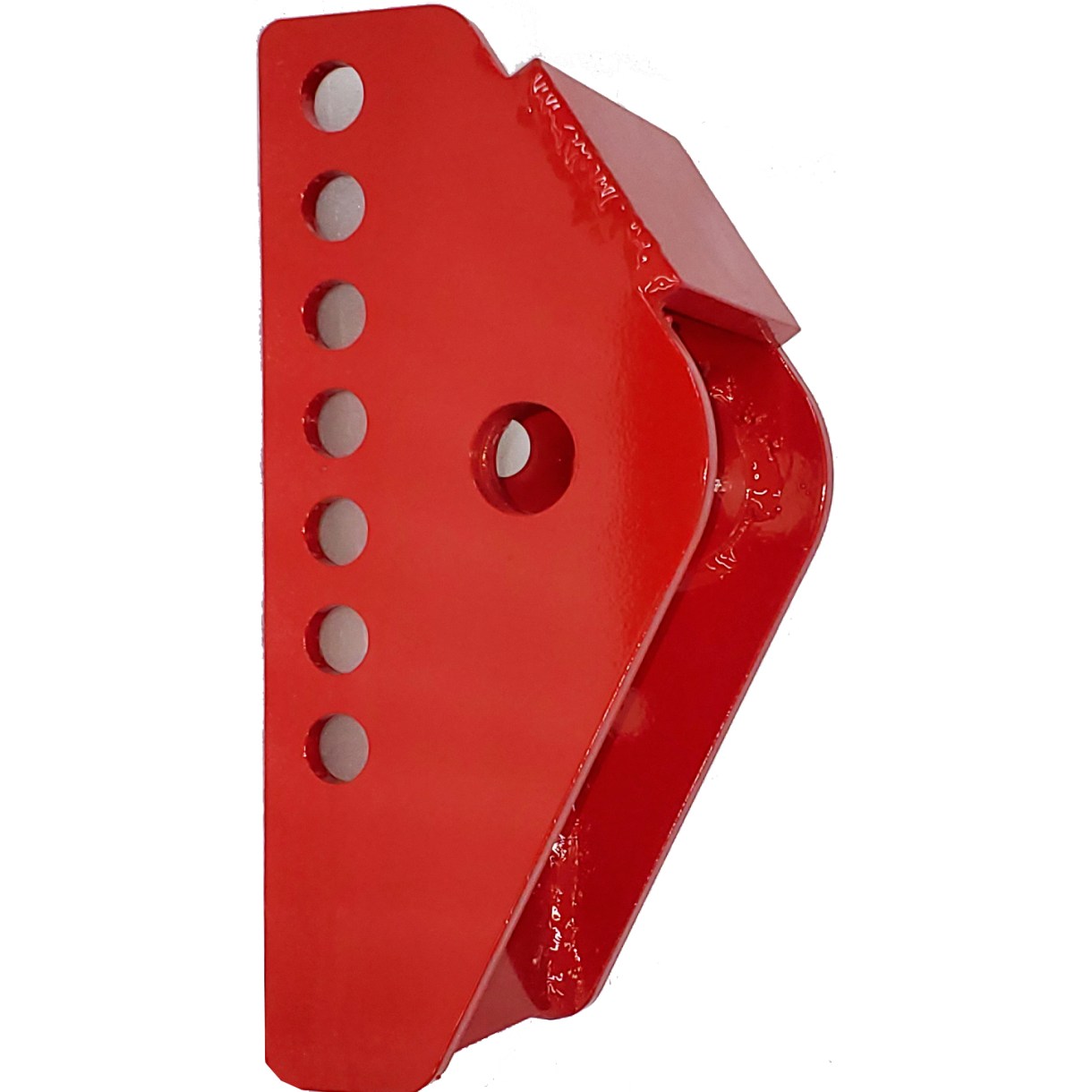

Fits Shocker Air or HD Air bumper hitches & Shocker Impact & XRC Cushion hitches

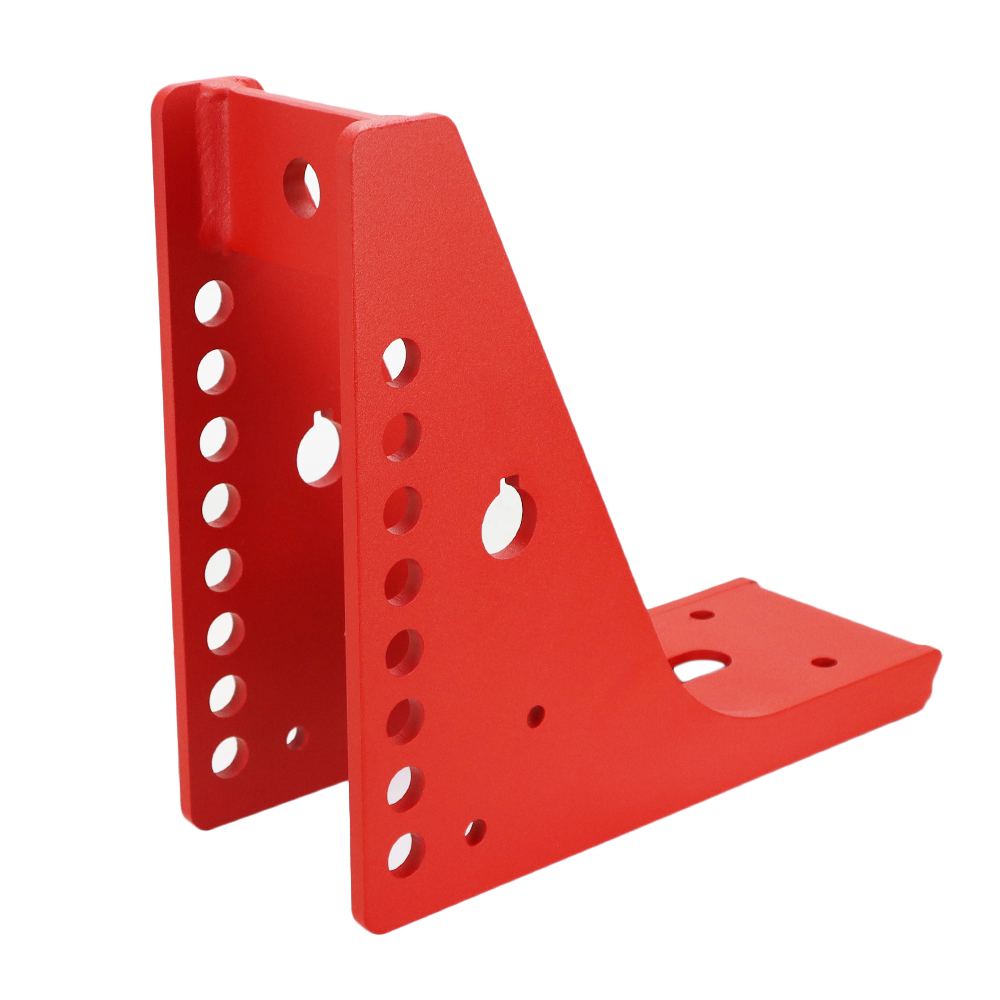

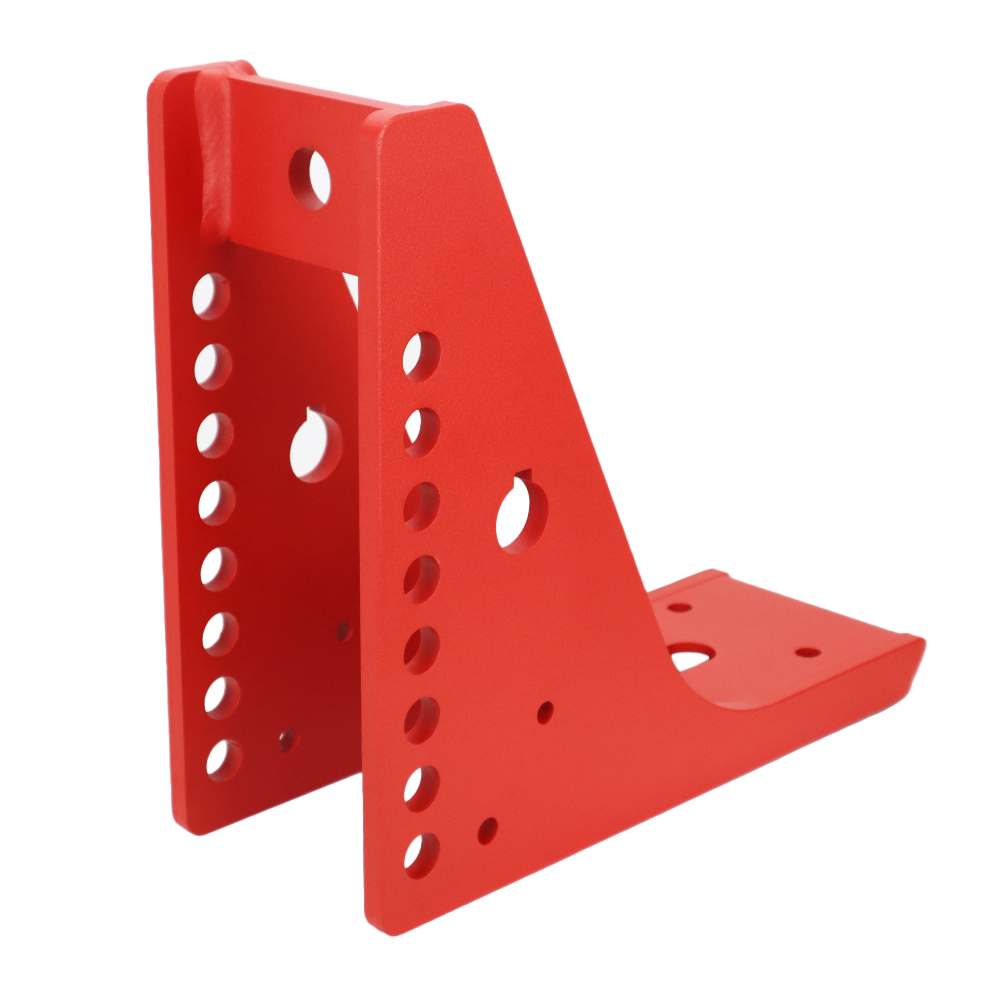

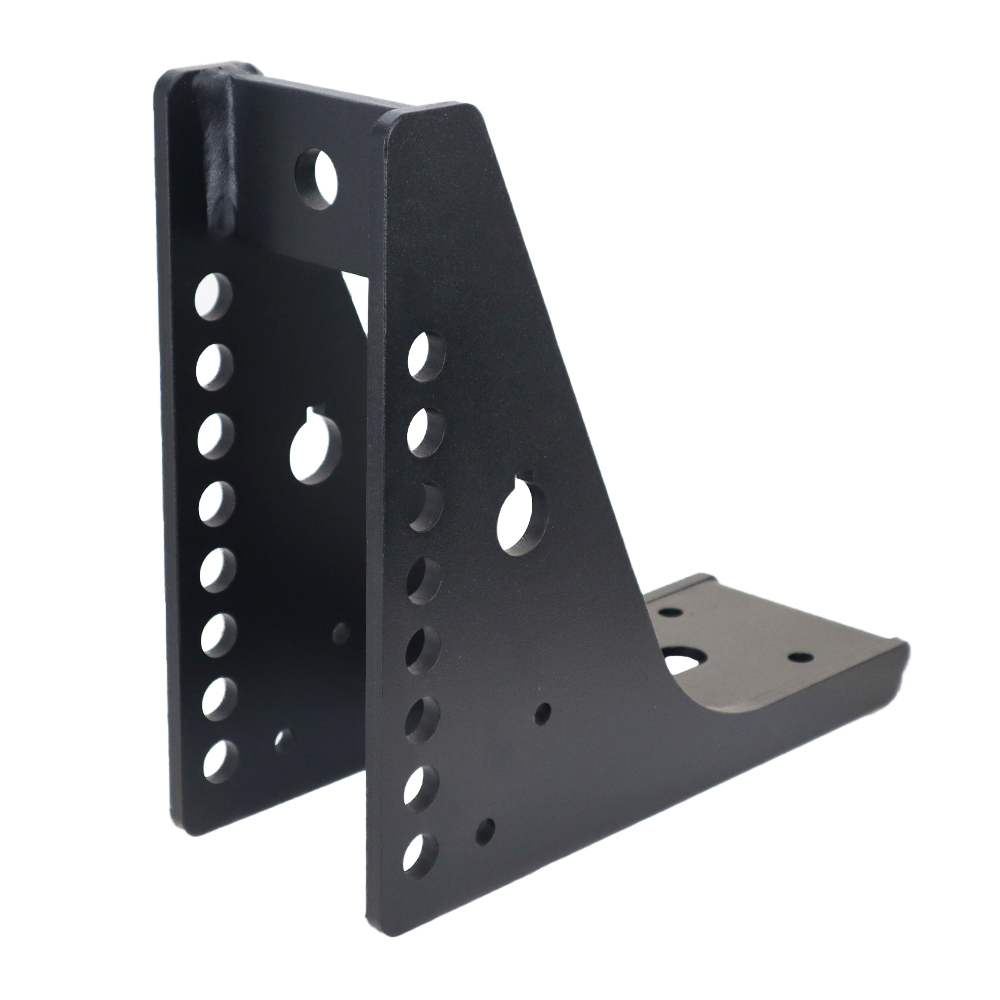

Choose Black or Red premium powder coat finish
Does not include any hardware
Replacement Shocker bumper hitch frames for the Shocker air, hd & cushion bumper hitches. Choose black or red premium powder coat finish. Made for the Shocker Air, HD, Impact & XRC cushion hitches. Choose black or red. Air frames are 8 adjustment holes and cushion hitch frames have 7 adjustment holes. These are the outer frames for Shocker bumper air & cushion hitches. Manufactured by Shocker Hitch® USA in Arthur, ND.
Shocker Air Bumper Hitch Installation Instructions
The Shocker Air Bag Hitch ball mount is easy to install. It comes complete with easy-to-understand instructions along with everything you need. You can download the installation instructions or view the video below.
Shocker Air Installation: First you must compress the air bag. Do this by depressing the air valve and pushing down on air bag. Once the bag has been compressed, you can install the unit into the receiver tube. Next, install the hitch pin.
To Set Air: Hook up a trailer using a properly selected ball adaptor and height adjustment in order to a level trailer when loaded. Next, inflate the air bag. As air pressure increases, the unit will rotate lifting the hitch point. Install enough air to lightly compress top bushing or until bump stop clearance is approximately 1/8″.
Shocker Air Bumper Hitch Air Pressure Setting Video
Additional Set Up Notes:
When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY.
Maximum Air Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.
