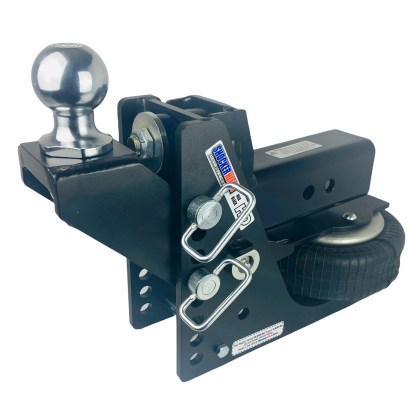

Shocker HD Max Black Air Hitch & Raised Ball Mount (+2″ of Rise to 2″ of Drop)

Rated 0 out of 5

$739.99$809.99$789.99$859.99

Free Ground Shipping*
Usually Ships on or Before Fri 03/29/24
Usually Ships on or Before Fri 03/29/24
Usually Ships on or Before Fri 03/29/24
Usually Ships on or Before Fri 03/29/24
Usually Ships on or Before Fri 03/29/24
Usually Ships on or Before Fri 03/29/24
Clear
OR

-

  • Videos arrow

    Videos

    Shocker HD Max Black Air Hitch Videos

  • Drop/Rise Guide arrow

    Drop/Rise Guide

    • Air Bumper Hitch Mount Drop & Rise + Tow Rating Guide
      – Combo Ball: 0″ Rise to 4.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Drop Ball: 4.5″ to 8.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Raised Ball: 2″ Rise to 2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
       Pintle Hook: 2.5″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
      – Pintle & Ball: 2.5″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Drawbar: 0″ Rise to 4.5″ Drop | 20,000 lbs.
      – Clevis Mount: 3.5″ Drop to 5.5″ Drop | 20,000 lbs.
      – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above.

    Safety Notice: It’s important you read and follow the tongue & gross towing weight recommendations of all components of your trailer towing set up. This includes the tow vehicle, receiver hitch, tow hitch, ball mount attachment, trailer coupler & the ratings of the trailer you are towing. Never exceed max for any of the components you are using.  If the coupler rating is 8,000 lbs and the hitch is 12,000 lbs, then don’t tow over 8,000 lbs.

    Check out our guide to find out how much drop or rise you need.

  • Install arrow

    Install

    Shocker HD Air Hitch Ball Mount Installation Instructions

    The Shocker HD Air Hitch ball mount is easy to install.  It comes complete with easy-to-understand instructions along with everything you need.  You can download the installation instructions or view the video below.

    Shocker Air Installation: First you must compress the air bag. Do this by depressing the air valve and pushing down on air bag.
    Once the bag has been compressed, you can install the unit into the receiver tube. Next install hitch pin.

    Shocker HD Air Hitch Install Video

    To Set Air: Hook up trailer using properly selected ball adaptor and height adjustment in order to a level trailer when loaded. Next, inflate the air bag. As air pressure increases, the unit will rotate lifting the hitch point. Install enough air to slightly compress top bushing or until bump stop clearance is approximately 1/8″.

    Shocker HD Air Hitch PSI Air Pressure Setting Guide Video

    Additional Set Up Notes:

    • When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
    • Spacer block included and may be required when using 2″ shank (see install manual below)
    • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
    • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY.

    Maximum Air Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

    Shocker HD Air Receiver Hitch Install Instructions

    Note: Always use a good hitch ball with the proper recommended tow weight.

  • Warranty arrow

    Warranty

    This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch ✅ 60 Day Money Back Smooth Towing Guarantee!. View our online Warranty Registration Form to register your Shocker Hitch.

    60-DAY MONEY BACK GUARANTEE

    We want you to be 100% satisfied. You’ve got 60 days to ensure your hitch fits your lifestyle.

    SMOOTHER TOWING

    We guarantee whatever you are towing, the ride on your pickup and trailer will be smoother with any of our air & cushion products period.
    Installation Help

    FREE SHIPPING* & FREE RETURNS

    If you are not satisfied, you can return it for free the first 60 days. See our free shipping* & free return policy.

    HOMETOWN CUSTOMER SERVICE

    We are here to help. We are happy, when you are happy.
    Made in the USA

    INSTALL HELP

    We’re glad to answer any questions you have. support is here 8am‐5pm, Mon‐Fri at 701-707-2666 or you can email anytime.

    MADE IN THE USA

    All of our products are custom made with good all American folks in Jamestown, ND USA
    The Shocker Hitch Guarantee applies to products purchased from ShockerHitch.com.
  • Q & A arrow

    Questions and answers of the customers

    There are no questions yet. Be the first to ask a question about this product.
