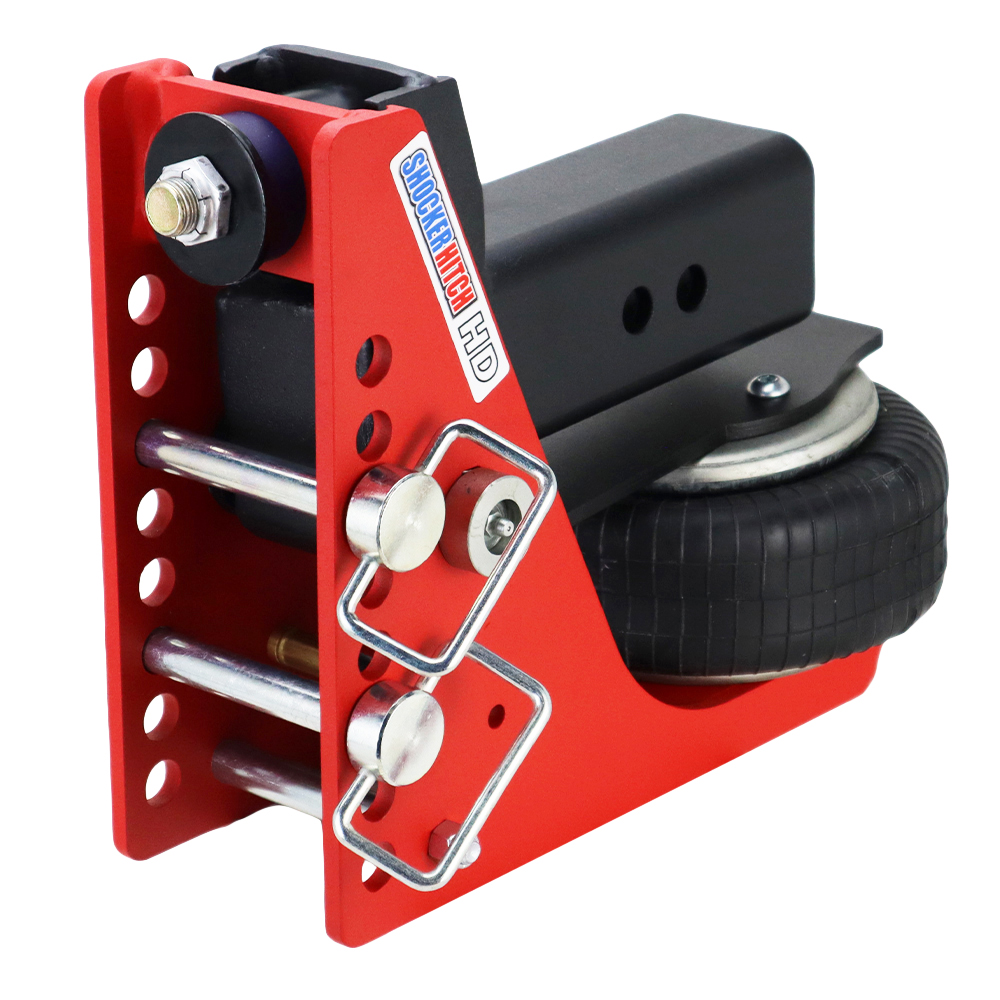

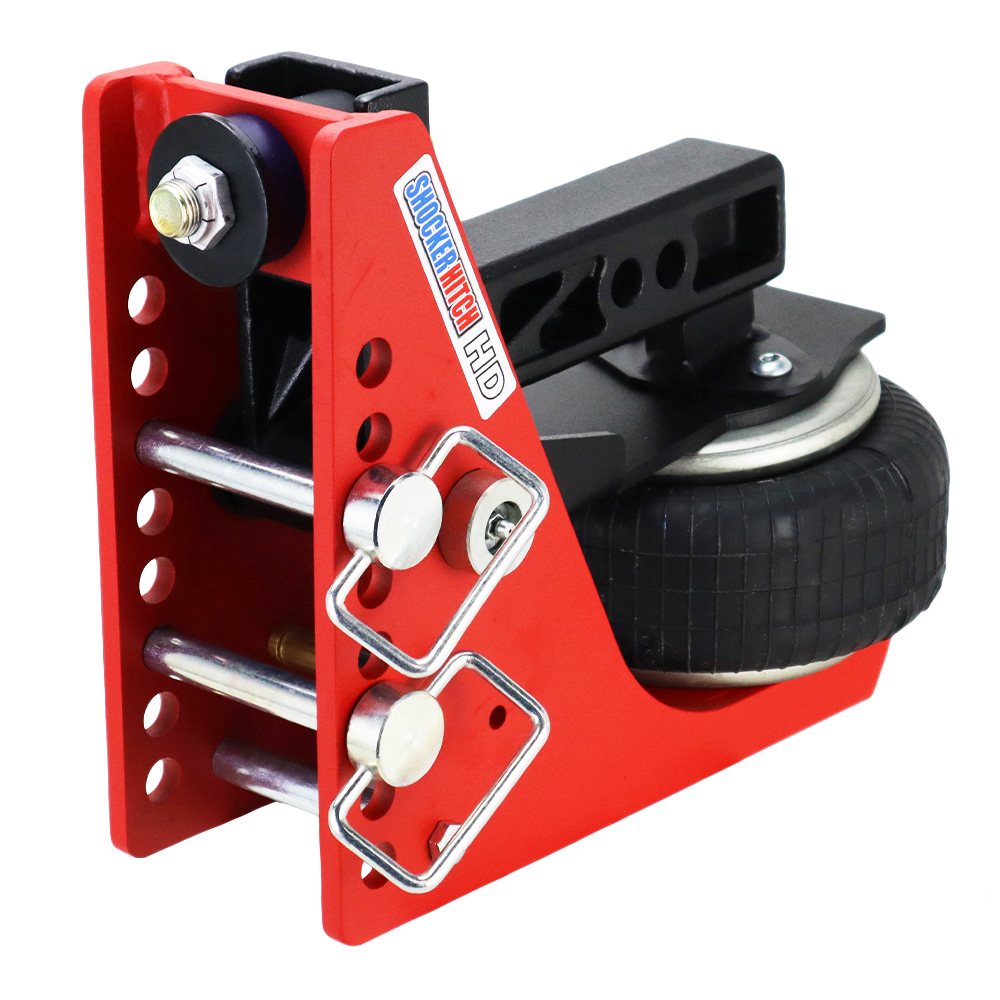

Shocker HD 20K Air Hitch Base Frame Assembly Complete – No Ball Mount

Select Option:

Clear

Product Information:

List Price: $594.99$644.99Sale Price: $578.49$628.49Free Ground Shipping*

Reviews
Rated 5.00 out of 5 based on 2 customer ratings
SKU: SH-HD-Base-Gen
Series:

-

Product Description

  • Smoother Safer Towing: Air ride towing technology with a heavy duty built in air spring to cushion the ride & absorb the road shock. The air bag sits under receiver tube. Adjust the air pressure for the best ride and load control.
  • Built in HD Airbag: Absorbs road shock, creates smooth ride & reduces tendency to trailer sway. Dual rubber bump cushions also offer additional HD performance.
  • 8 Adjustment Holes: 8 Adjustment Holes for 2″ rise to 8-1/2″ of drop. (varies by ball mount used)
  • Safety Red Powder Coat Finish: Impact Resistant Premium Powder-Coat Finish on Base Frame.
  • 20,000 lbs Heavy Duty Capacity: 20,000 lbs towing capacity and a 2,000 lbs tongue weight.
  • Adjustable for Weight: Fine tune for your towing weight. Just add air for heavier loads.
  • 2 Hole Receiver Shank: Available for 2″, 2-1/2″ & 3″ receiver hitch tubes with Two hitch pin holes for length adjustability.
  • Great for Pickups: Fits Great for Full Size Pickup Trucks & Vans, Midsize Pickups & Select SUVS (with receiver under bumper). Popular installs include GMC Sierra, Chevy Silverado, Chevy Colorado, GMC Canyon, Dodge Ram, Ford Ranger, Maverick F150, F250, F350, F450, F550 Superduty, Toyota Tundra, Tacoma, Nissan Titan, Frontier, Honda Ridgeline & Hyundai Santa Cruz.
  • Comes complete with Shocker HD air base frame assembly with built in HD airbag and two d-handle ball mount pins.
  • 10+ Ball Mount Options (Sold Separately): Huge selection of ball mount adapters available from Pintle hooks, draw bars, drawbar, clevis, drop ball mounts, raise ball mounts and more.
  • Safety Notice: The Shocker Hitch is a heavy duty unit that in most cases exceeds factory towing weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the truck that is mounted on, the trailer coupler rating and the ratings of the trailer you are towing. Manufactured by Shocker Hitch® USA in Arthur, ND. Bolt on 2″ Ball is 10,000 lbs GTW & 1,000 lbs TW / Bolt on 2-5/16″ Ball is 20,000 lbs GTW & 2,000 lbs TW.
  • NOTE: This product will not work with a weight-distribution hitch system, if you have a w-d hitch, check out our Shocker Hitch Air Equalizer.
  • What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″ or 3″ receiver tube?  Measure inside to inside. Check out our guide on How to measure receiver hitch tube size.
  • How Much Drop or Rise Do I Need? Check out our guide to find out  how much drop or rise you need

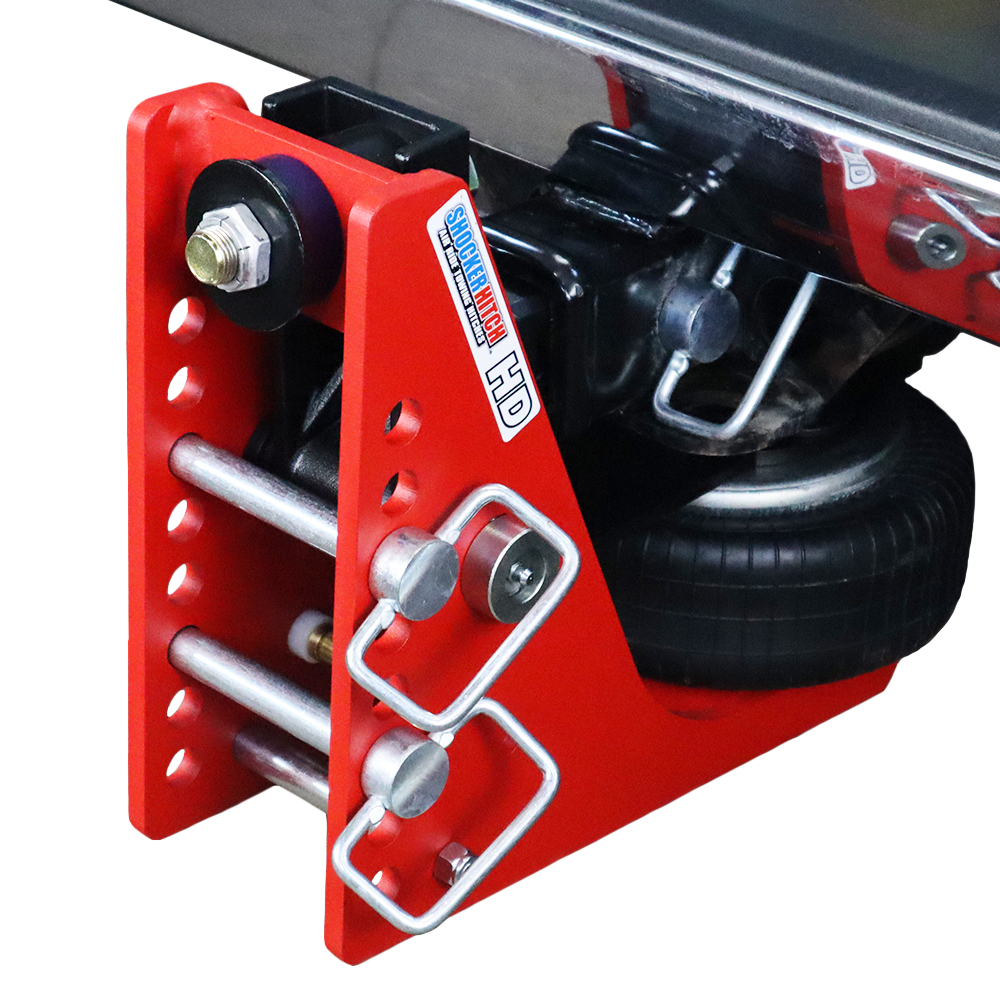

The Shocker HD Air Bag Receiver Hitch base frame only. Includes everything except the ball mount attachment. Comes complete with 20K Shocker HD base frame assembly with build in HD airbag & 2 d-handle ball mount pins with clips. (No ball mount attachment included)  Ball mount attachments available & sold separately. The heavy-duty air spring can handle HD towing. 20,000 lbs tow rating capacity and 2,000 lbs tongue weight. Shocker HD air provides the ultimate smooth ride. The Shocker HD Air is a miniature air suspension towing hitch mounted between your truck and trailer. This Shocker mounts by sliding into a standard receiver tube. Choose from combo ball, cushion draw bar, pintle hook, adjustable and drop style ball mounts, which are sold separately.

The air bag sits under the receiver tube allowing a short distance of 10-inches between mounting pin and ball center. You will find the advantage of the Air Shocker is your ability to adjust air pressure for best ride and load control. Fits standard 2″ receiver tube, 2 1/2″ and 3″ receivers.

The Shocker HD air base frame has a 20,000 lbs towing capacity and 2,000 lbs on tongue weight. Your rating may change depending on the ball mount used.

Simple Pivot Design: uses a rocker arm pivot design which produces a down and back motion, much different than other air hitches on the market. Our design eliminates the need for slides, parallel linkages, rollers, shock absorbers, or multiple airbags common to other air hitches.

Improves Safety: By giving you improved control of your tow vehicle and trailer. The air bag receiver hitch system allows for better control of your pickup and the trailer it is towing.

Air Ride Hitch: Shocker Air is designed with a built-in air bag for a smoother towing experience. Featuring a built in height adjustment plus weight adjustable. Just add or ride air depending on the weight of your trailer and it’s contents.

Provide Comfort: With a smoother ride! Travel a lot on concrete highways? No more jarring every time you cross a section divider. Your Shocker air hitch absorbs the thumps and bumps.

Shock Dampening Action: Shocker HD air hitch effectively absorbs the jerking, tugging and damaging forces experienced with a typical hard connection when towing trailers. There is no reason to beat yourself or your equipment up with a hard connection between your trailer and your receiver hitch.

Saves Money: By reducing trailer breakage on both the trailer and the trailer contents! The Shocker hitch absorbs the damaging forces experienced with a typical hard connection. This greatly reduces the chances of breaking welds and doing other long term damage to your equipment as well as the valuable cargo you have inside the truck and trailer.

Adds Life To Your Vehicle: By reducing wear and tear on driveline and frame! Treat yourself, your equipment, and your passengers to a much smoother ride. You’ll never go back to the ‘old days’ of continual bumps, jerks, and vibrations. Join the list of satisfied customers that are using Shocker hitches. Order one today and get ready for your ultimate smooth towing experience the next time out.

California Residents: Prop 65 Warning

Fitment & Application

Shocker HD Air Base Frame Applications

Part # Product Name Vehicle Info Rating
SH-HD200-200 Shocker HD Air Receiver Hitch Base Only with 2″ Receiver Shank Fits 2″ Hitch
16,000lb Tow / 1,600lb Tongue
SH-HD200-250 Shocker HD Air Receiver Hitch Base Only with 2-1/2″ Receiver Shank Fits 2-1/2″ Hitch
16,000lb Tow / 1,600lb Tongue

Video

Shocker HD Air Hitch Videos

Shocker HD Installation

Shocker HD vs Shocker Original Air Hitch

Setting the Shocker HD Air Pressure

Install

Shocker HD Air Hitch Ball Mount Installation Instructions

The Shocker HD Air Hitch ball mount is easy to install.  It comes complete with easy-to-understand instructions along with everything you need.  You can download the installation instructions or view the video below.

Shocker Air Installation: First you must compress the air bag. Do this by depressing the air valve and pushing down on air bag.
Once the bag has been compressed, you can install the unit into the receiver tube. Next install hitch pin.

Shocker HD Air Hitch Install Video

To Set Air: Hook up trailer using properly selected ball adaptor and height adjustment in order to a level trailer when loaded. Next, inflate the air bag. As air pressure increases, the unit will rotate lifting the hitch point. Install enough air to slightly compress top bushing or until bump stop clearance is approximately 1/8″.

Shocker HD Air Hitch PSI Air Pressure Setting Guide Video

Additional Set Up Notes:

  • When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
  • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
  • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY.

Maximum Air Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

Shocker HD Air Receiver Hitch Install Instructions

Shocker Air Receiver Hitch Diagram
Shocker Air Receiver Hitch Diagram


Note: Always use a good hitch ball with the proper recommended tow weight.

Warranty

This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Guarantee.

Shocker Hitch Guarantee

FAQ

Answers to Frequently Asked Questions

How much air do I put in the Shocker Air Bumper Mount Receiver Hitch?
With your trailer hooked up to the tow vehicle, and loads positioned for transport, air up shocker until main frame rotates and lightly compresses top bushing (about 1/8″ of squeeze or pinch in the bushing). See our quick How To Set PSI in Shocker Bumper Hitch Video.

Will the Shocker Air Bumper Hitch work with Equalizer or Weight-Distribution?  If you are just use sway bars that hook to a mini ball, then yes, if you order the combo sway control ball mount attachment. If you have a equalizer or weight distribution hitch then it will not. However, check out our Air Equalizer for weight distribution hitches.  Note: If your pickup suspension can handle the weight of your trailer and doesn’t “squat” when you hook up your trailer to pickup, then you really don’t need a weight distribution hitch. A load leveling weight distribution hitch, distributes the weight between the pickup and trailer and is generally used if your pickup can’t handle the static trailer tongue weight load.

How long will it hold air? This is a sealed system that will hold air for weeks or months. If you haul the same trailer with the same load weight, it should be good for quite some time.

How long will the airbag last? Our airbags are an industrial bag and will last for years and years. They are similar to truck airbags but have been beefed up internally for our towing applications.

How do I know the Shocker Air receiver hitch will fit my truck?
We have made sure that the receiver air shocker will fit into most Ford, Chevy, GMC Dodge, Toyota, Nissan & Honda Pickups, Vans & SUV’s (SUV’s were the receiver is under the bumper). There are some clearance issues with the Chevy Envoy, Ford Explorer, some imports and service body vehicles where the body extends below the receiver tube or the receiver tube is inside the bumper.  The Shocker Air receiver hitch is available in a 2″, 2 1/2″ & 3″ shank.

How far below my pickup does the receiver air shocker hang? Five inches below bottom of receiver tube.

How often do I grease it? The grease does not just lube the pivot; it also keeps water and dirt out. You cannot over grease it, once every few months should do it.

Does the receiver air hitch work with sway bars?
Yes, it works with the friction style sway control bar, however you want to order a ball mount with sway bar tabs. See our sway bar tab ball mount attachments.

How does the Air hitch work? The Receiver air shocker is like a teeter totter. One end is an air bag, a pivot in the middle, and a ball at the other end. This gives a “pillow” effect at the ball end.

Should I tighten up the top jam nut on the receiver shocker? No. The air shocker needs at least one half inch of play to work properly.

How much does an Shocker Air bag receiver hitch weigh? The Receiver Air Shocker weighs 50-55 pounds

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Send me a notification for each new answer.

2 reviews for Shocker HD 20K Air Hitch Base Frame Assembly Complete – No Ball Mount

Add a review

Your email address will not be published. Required fields are marked *

Customer Reviews

  1. I’ve had the standard size Shocker Hitch air bag receiver for several years and liked it. I pull a travel trailer with a vintage Kenworth truck, and the Shocker Hitch protects the trailer from the harsh Kenworth suspension. I’ve convinced several other vintage truck owners to purchase the Shocker Hitch to protect their trailers; convincing is easy after they’ve broken their trailer. I recently purchased a larger trailer and upgraded to the HD Shocker Hitch to support the added weight. As expected, installation was easy and the air bag protects my trailer.

    – Craig Vogel
  2. Absolutely love this hitch, takes all the pain out of heavy tongue weight. I will never use a regular hitch again. Customer service is outstanding as well. Couldn’t be more happy. Worth every penny to me.

    – Dustin Dabney

Weight / Dimensions

Weight 53 lbs
Dimensions 18 × 12 × 12 in
Select Receiver Hitch Size

Fits 2" Hitch, Fits 2-1/2" Hitch, Fits 3" Hitch
