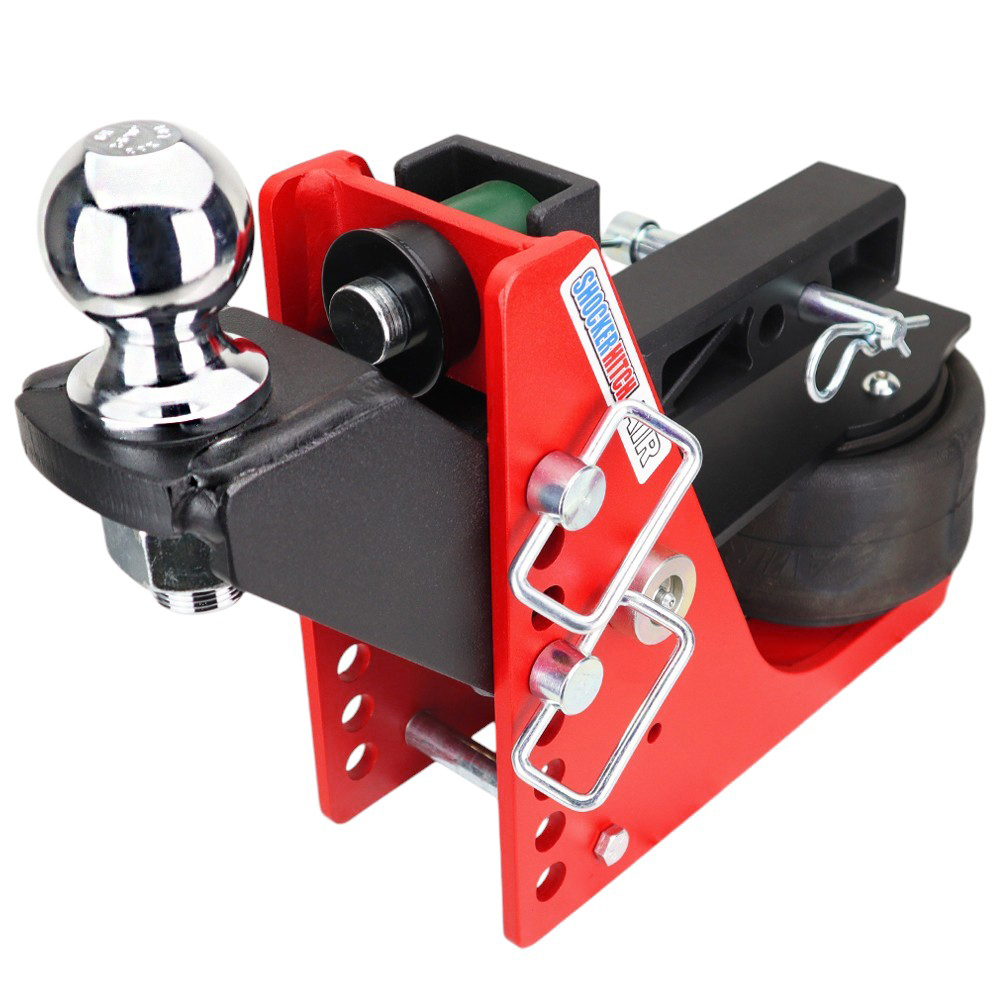

Shocker Air Receiver Hitch (Build Your Own)

Rated 4.89 out of 5 based on 56 customer ratings

$520.00$829.99$540.00$879.99

Free Ground Shipping*
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Clear
OR

-

  • Videos arrow

    Videos

    Shocker Air Receiver Hitch Videos

  • Drop/Rise Guide arrow

    Drop/Rise Guide

    • Air Bumper Hitch Mount Drop & Rise + Tow Rating Guide

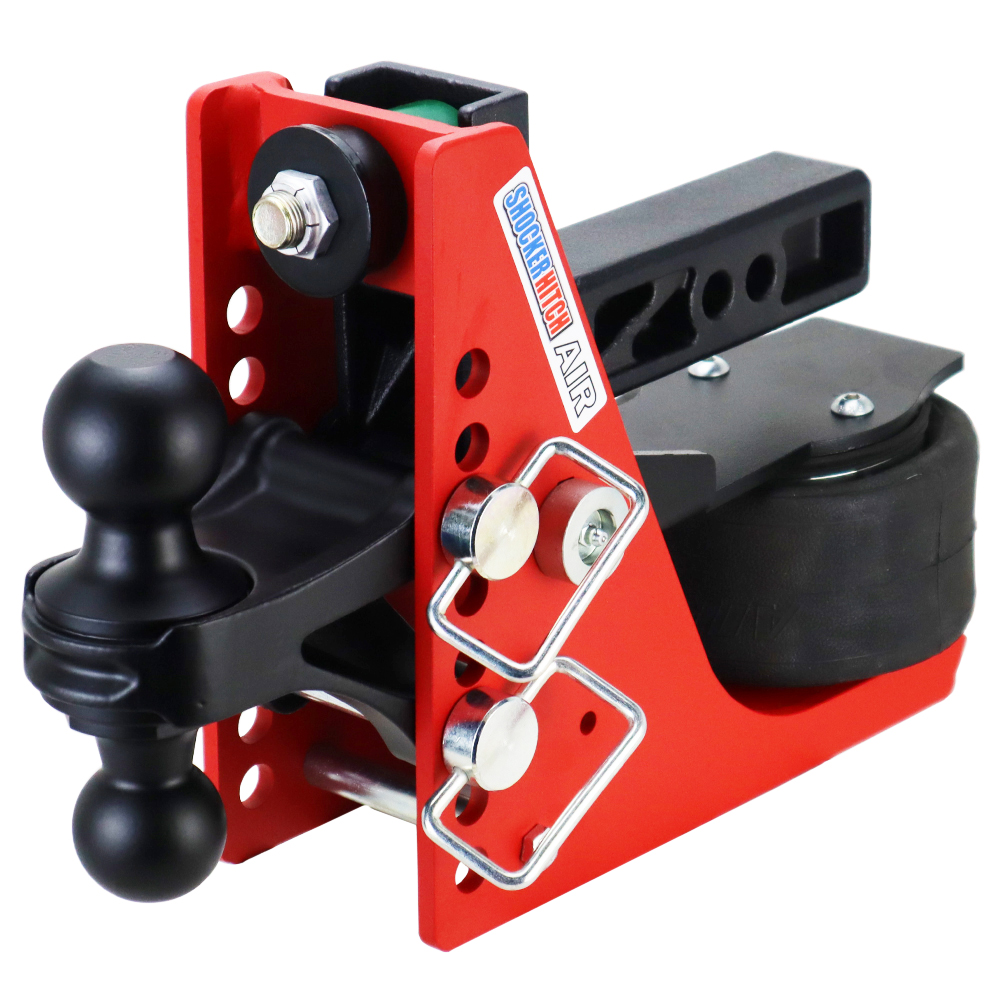

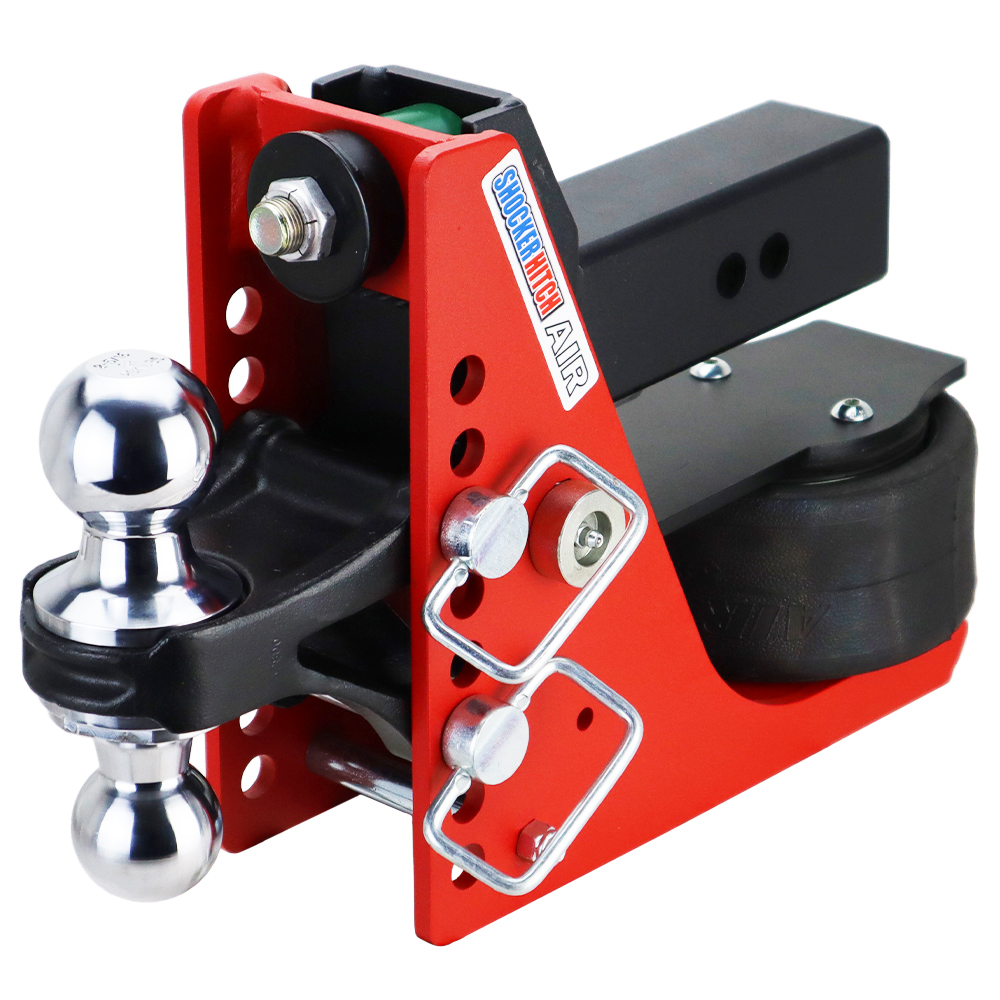

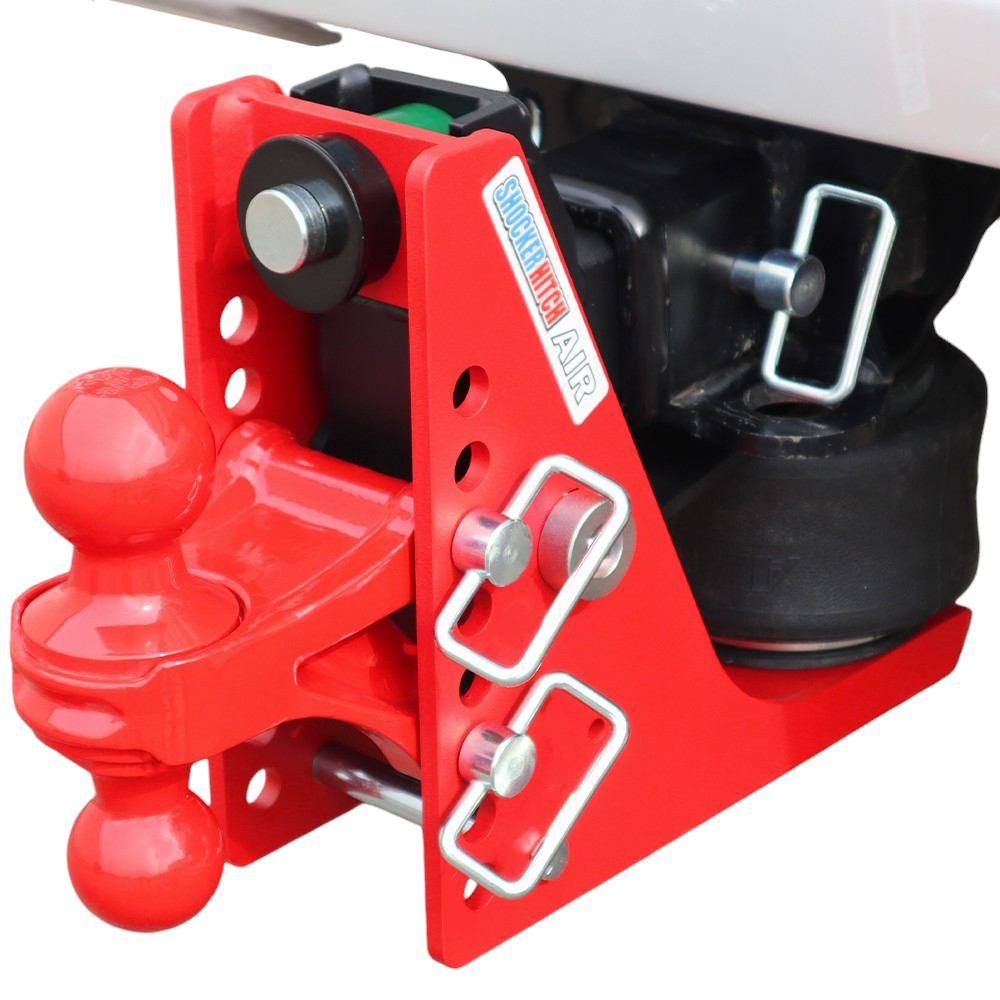

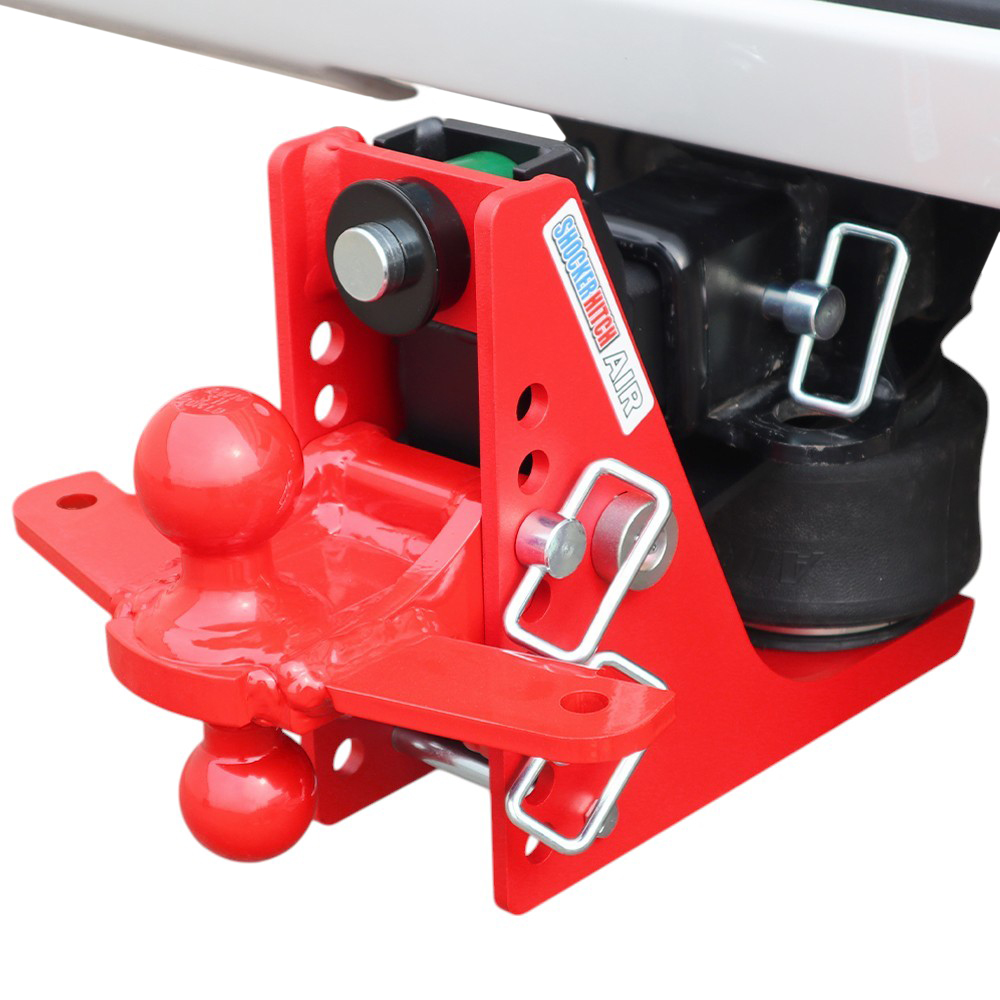

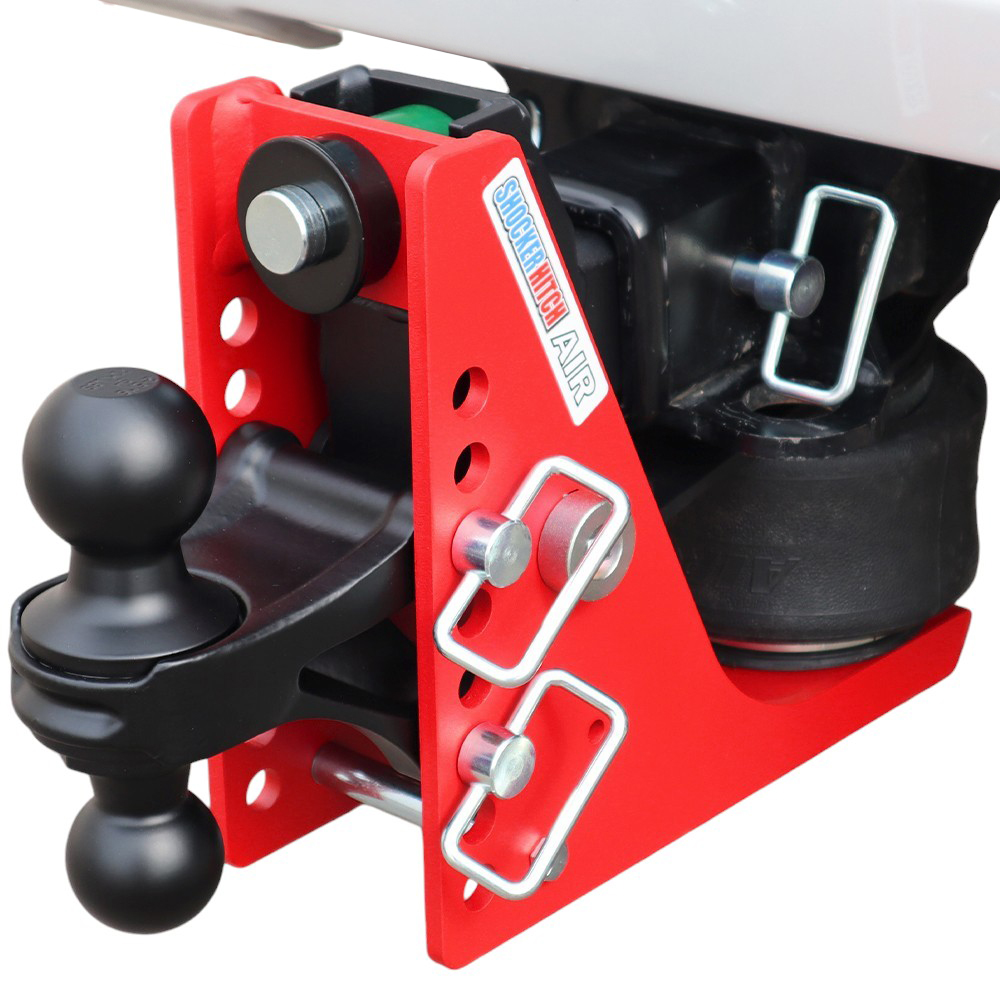

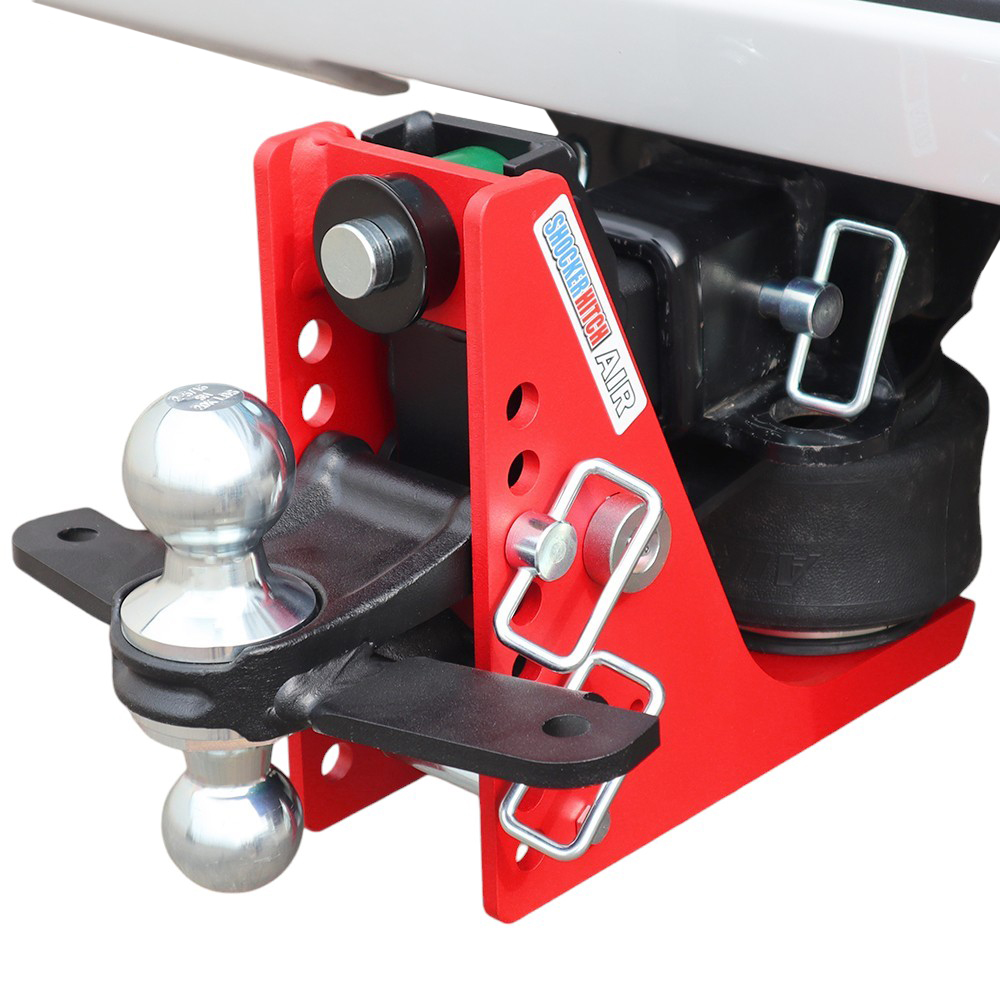

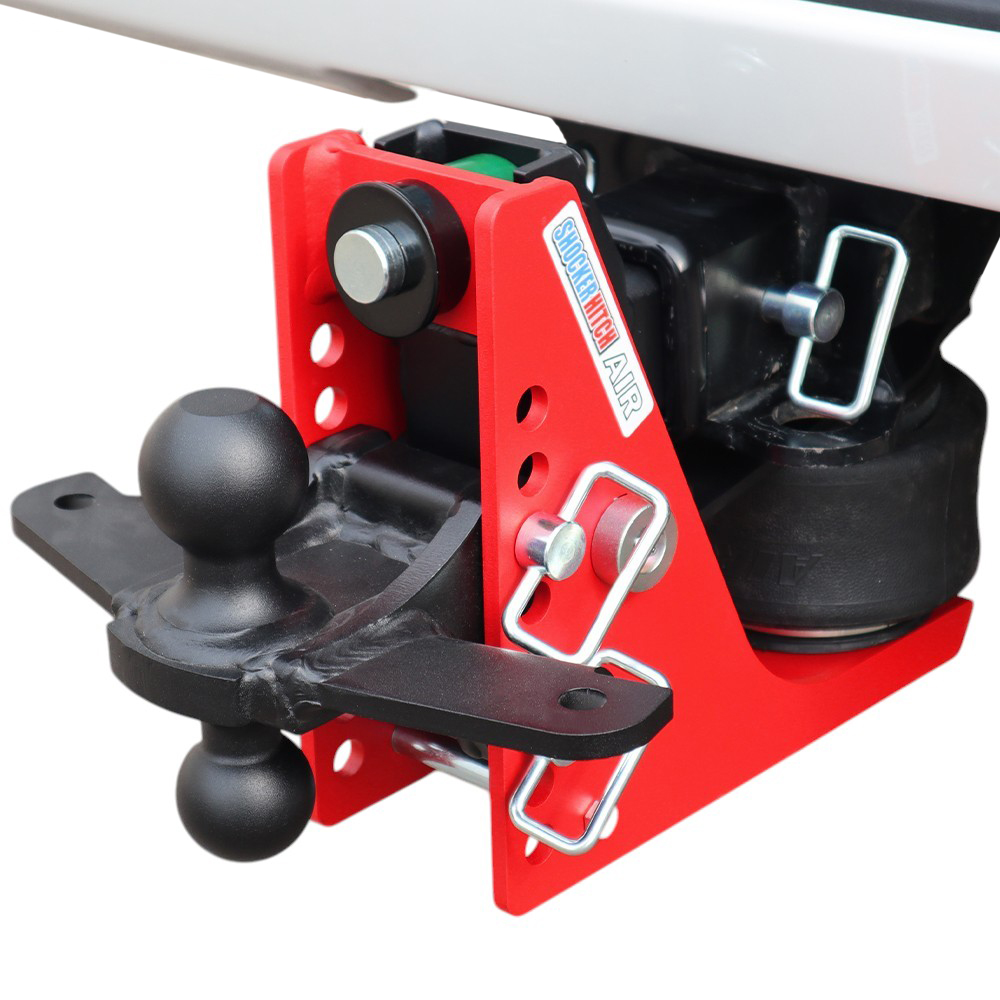

      – Combo Ball: 0″ Rise to 4.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.

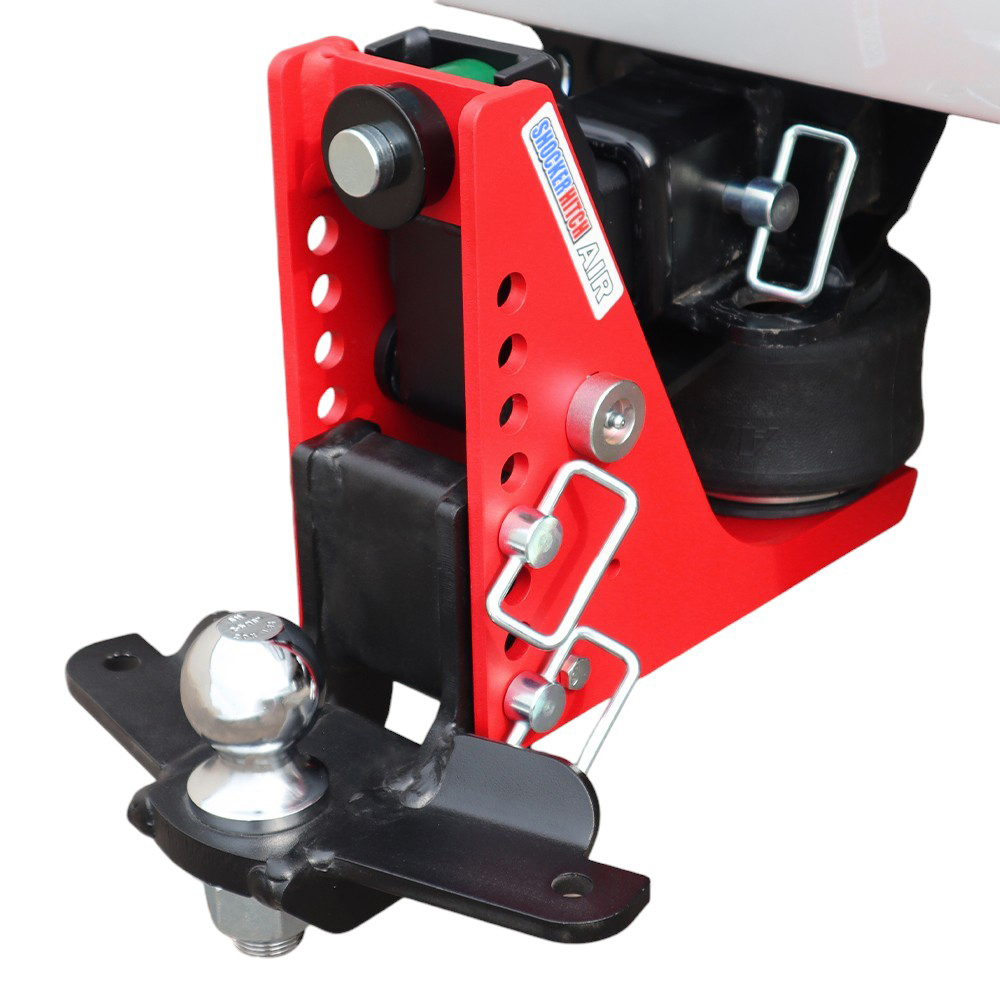

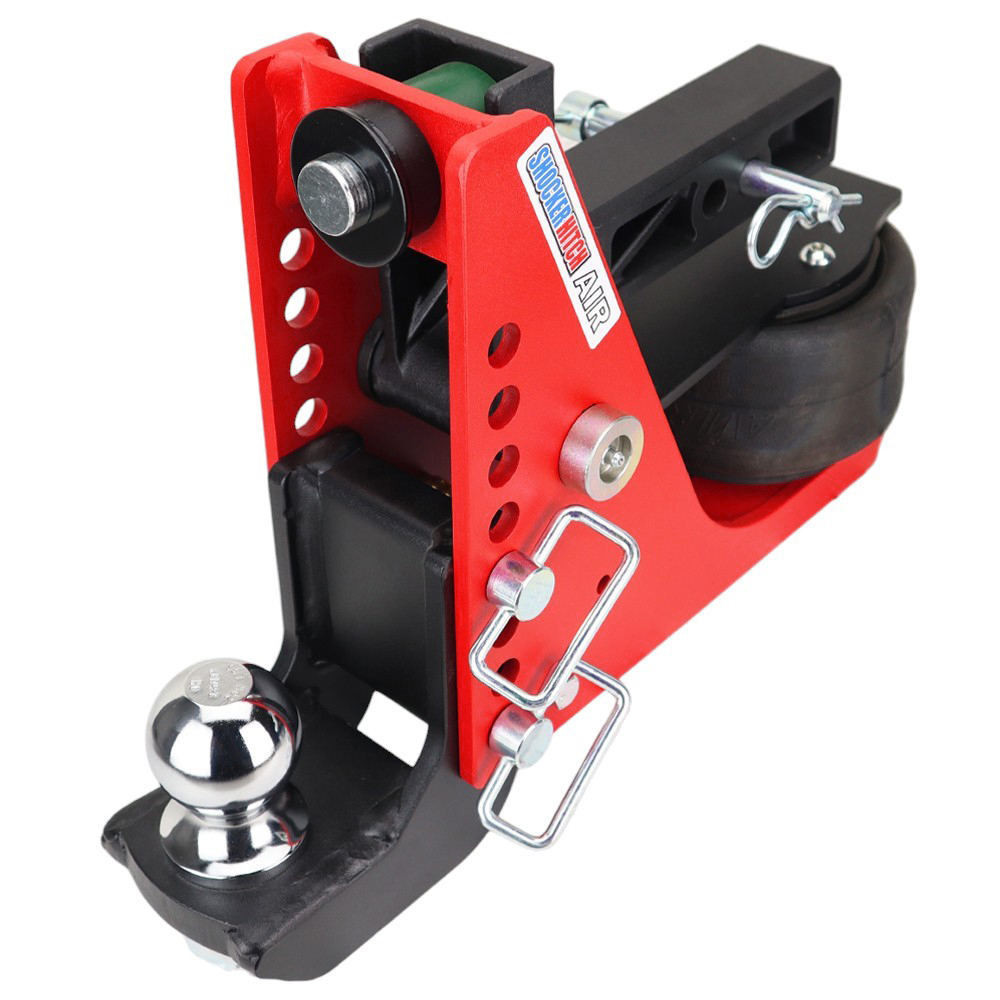

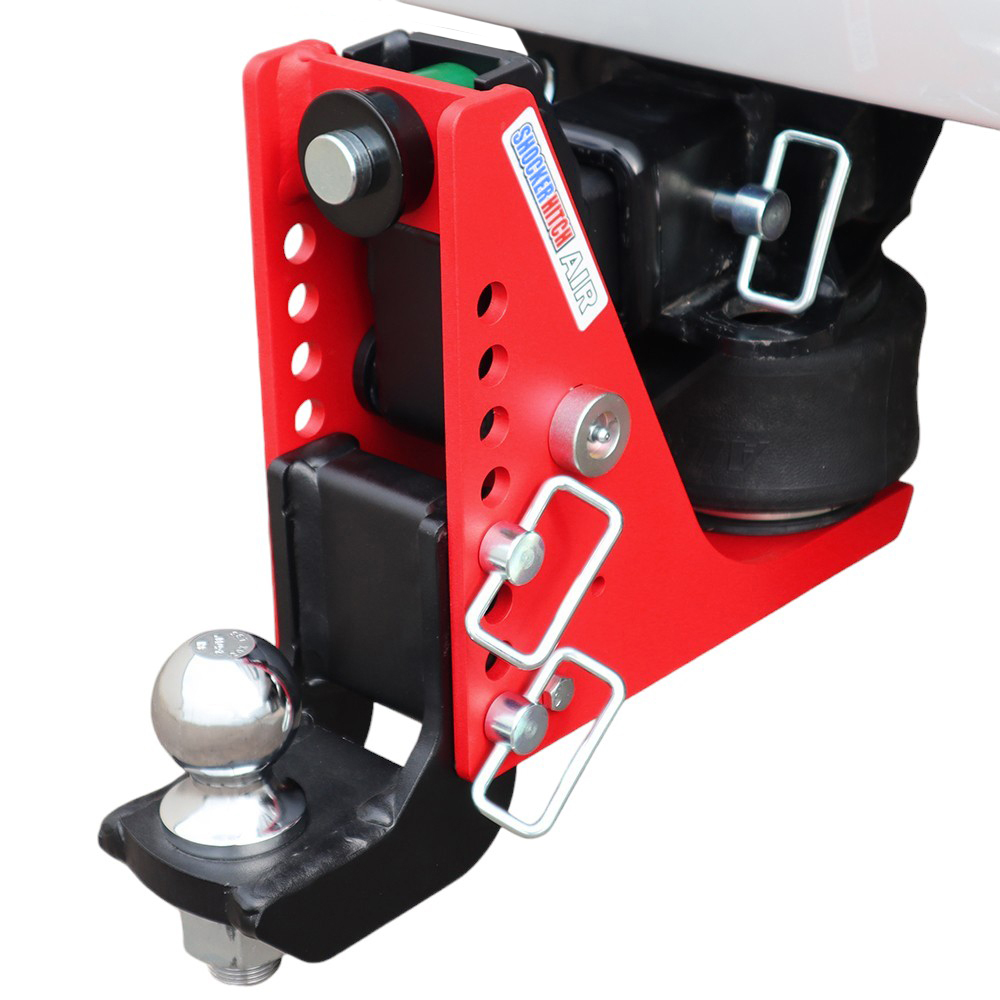

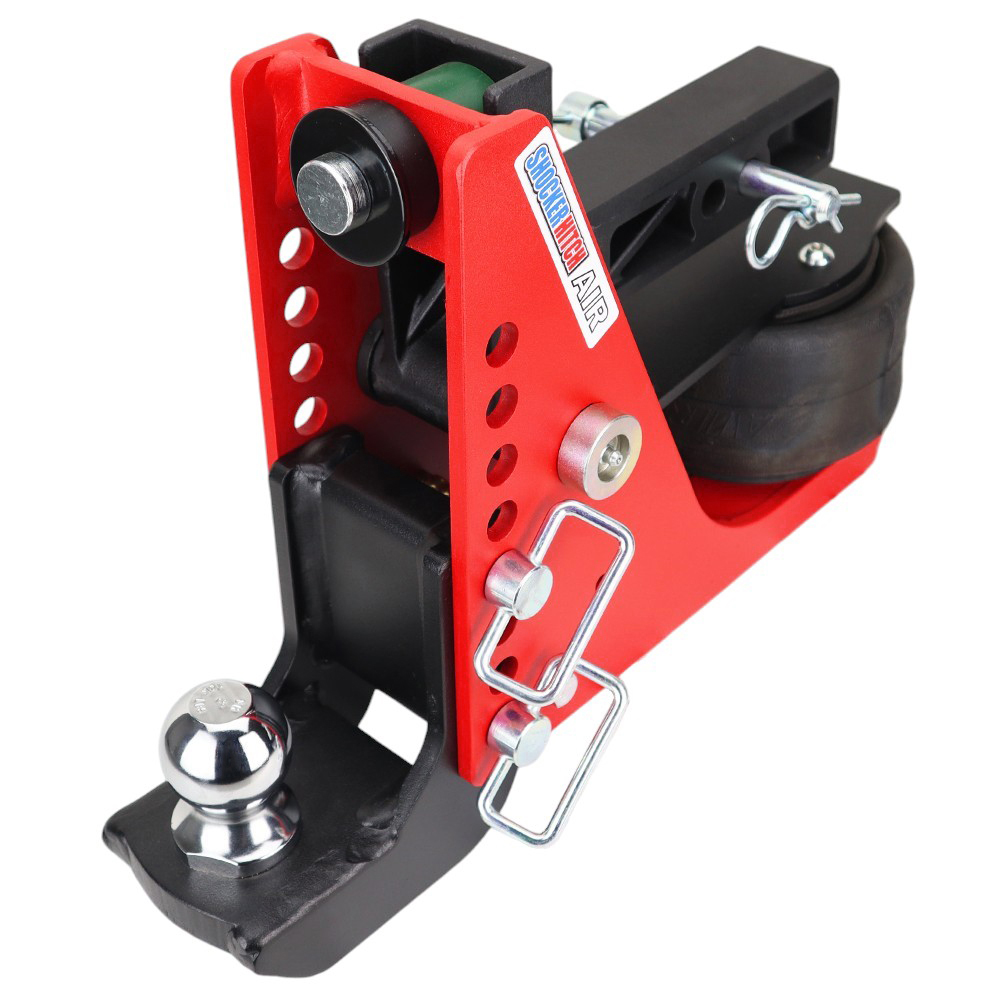

      – Drop Ball: 4.5″ to 8.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.

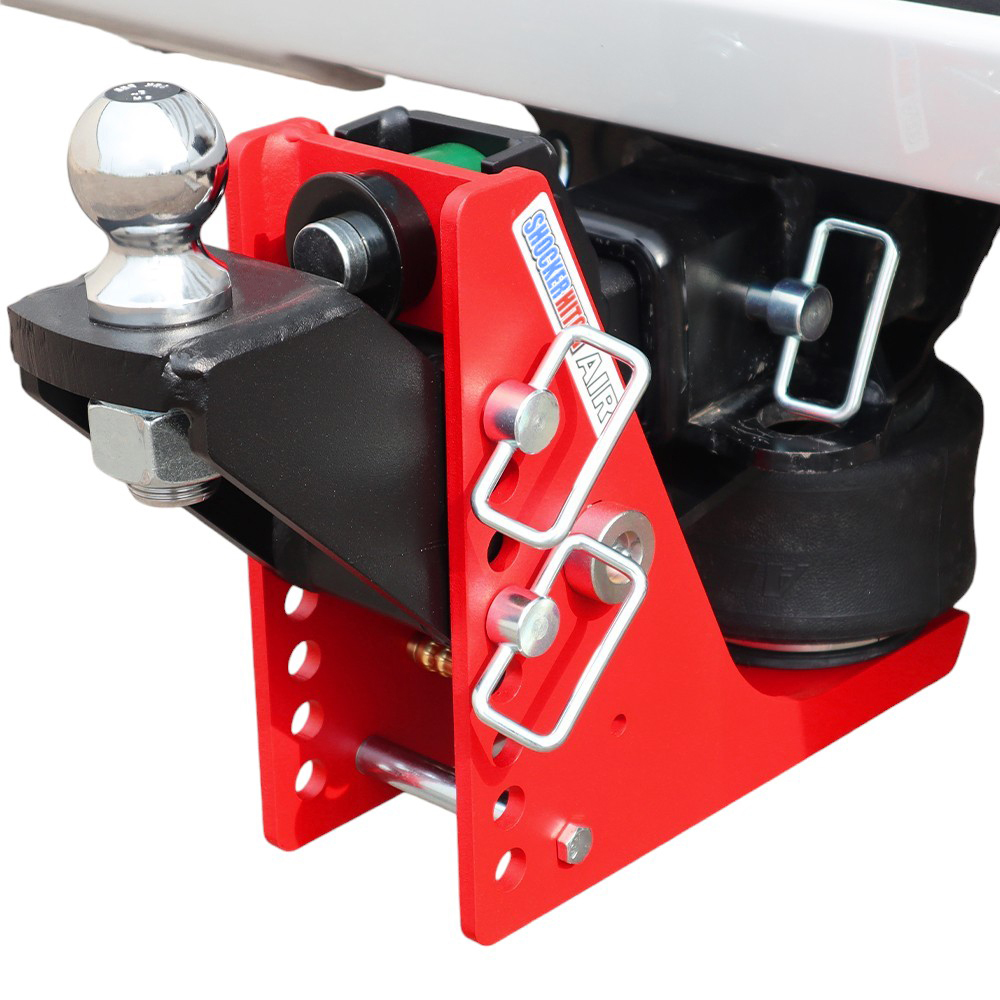

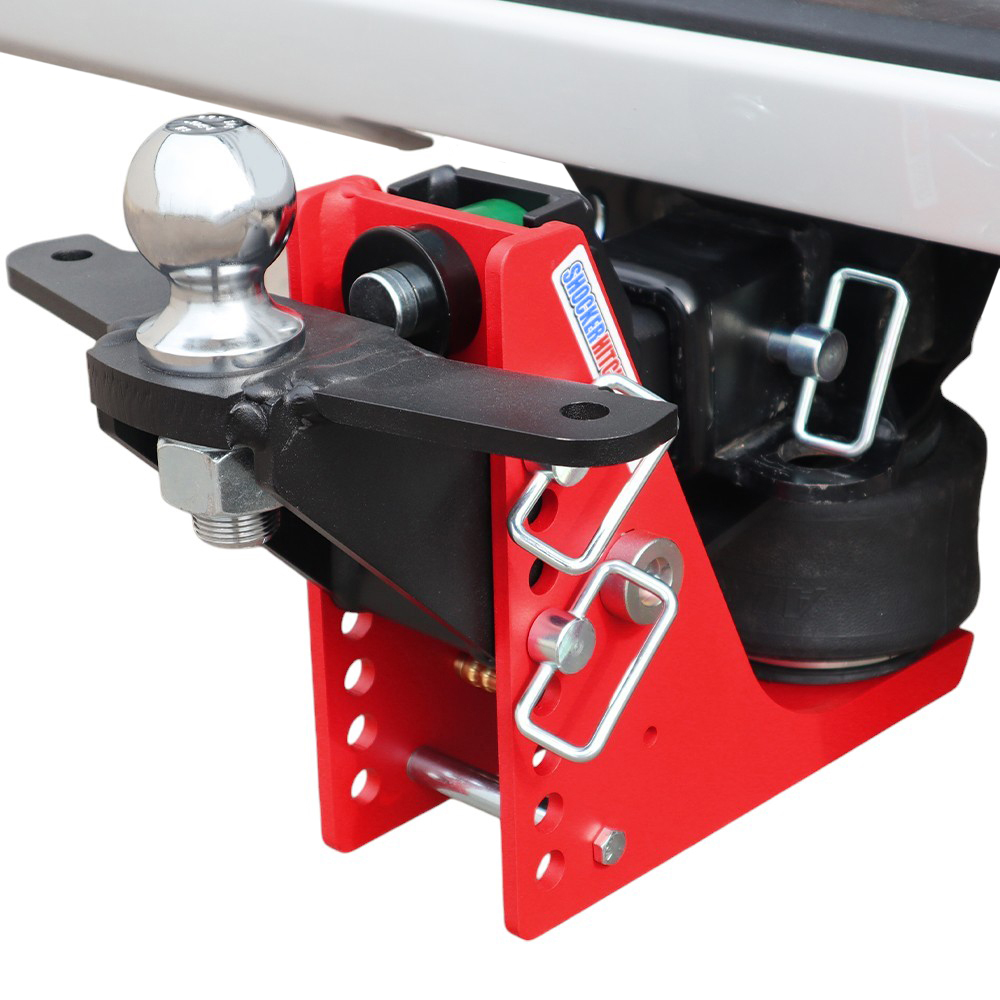

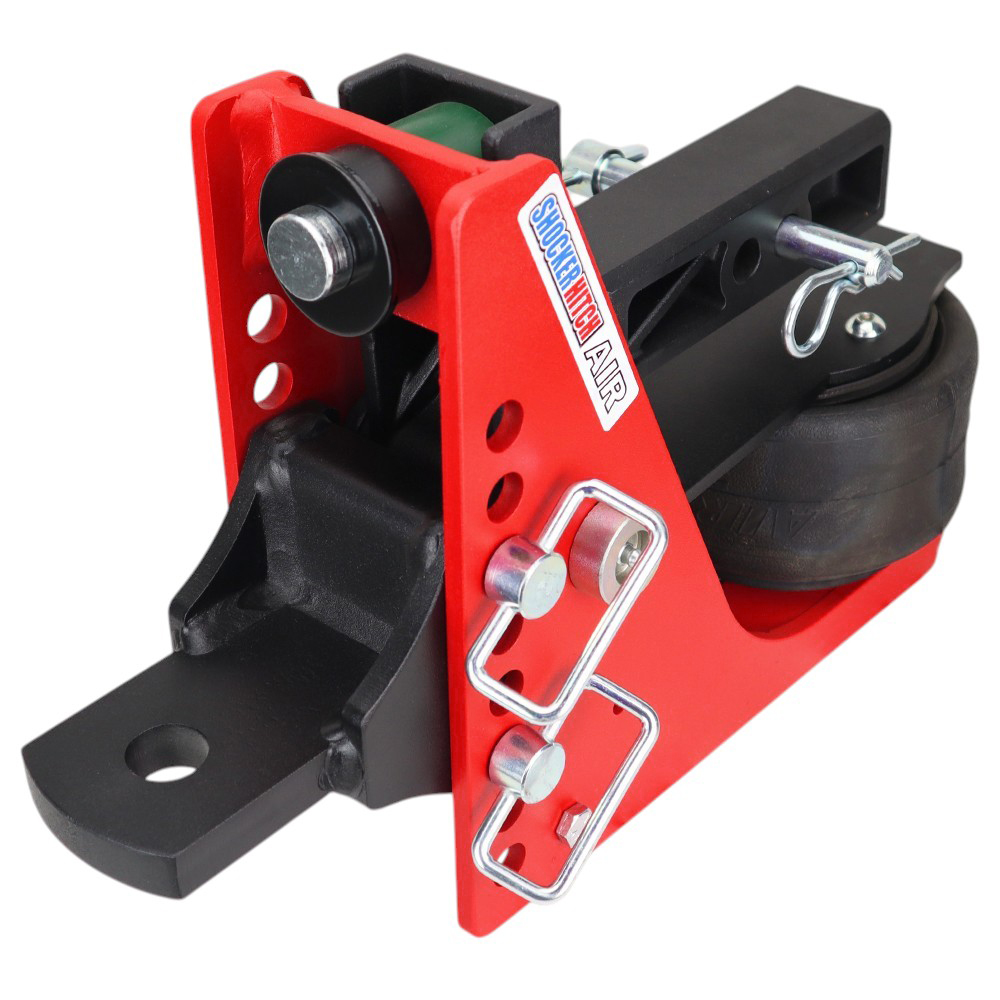

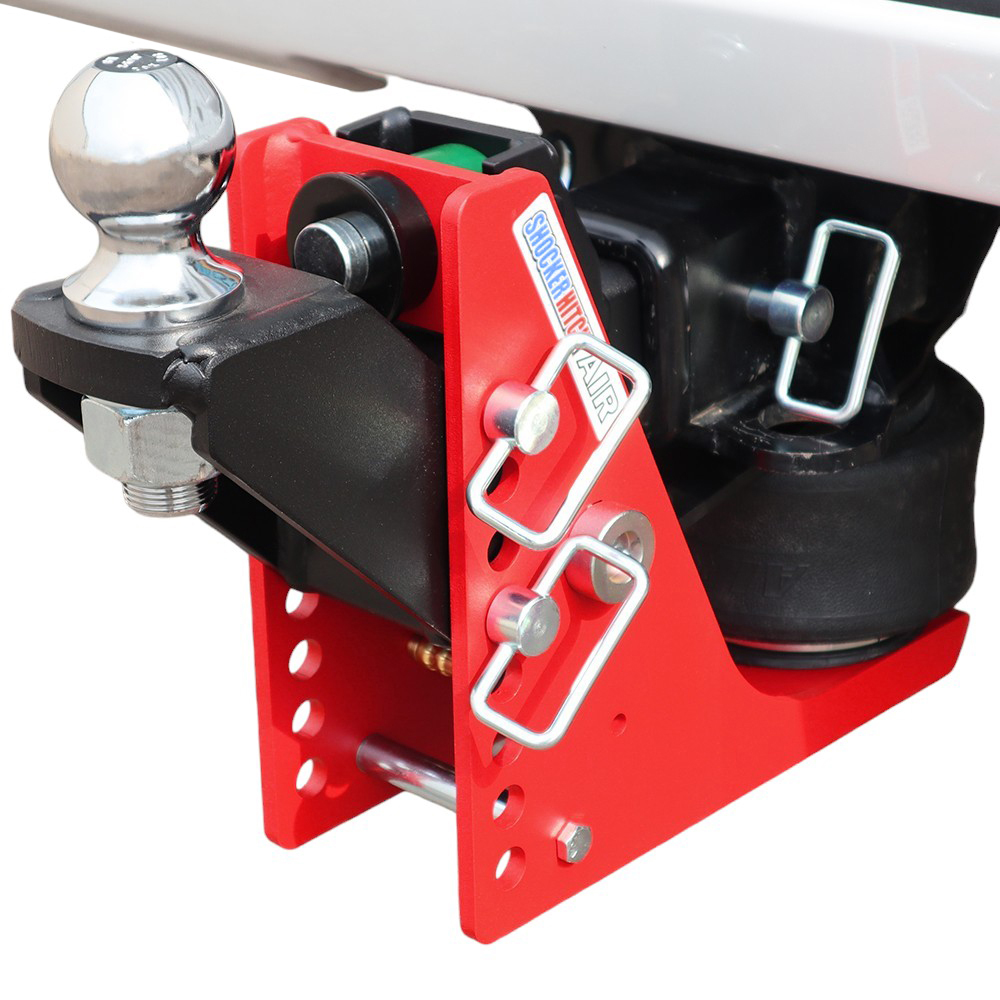

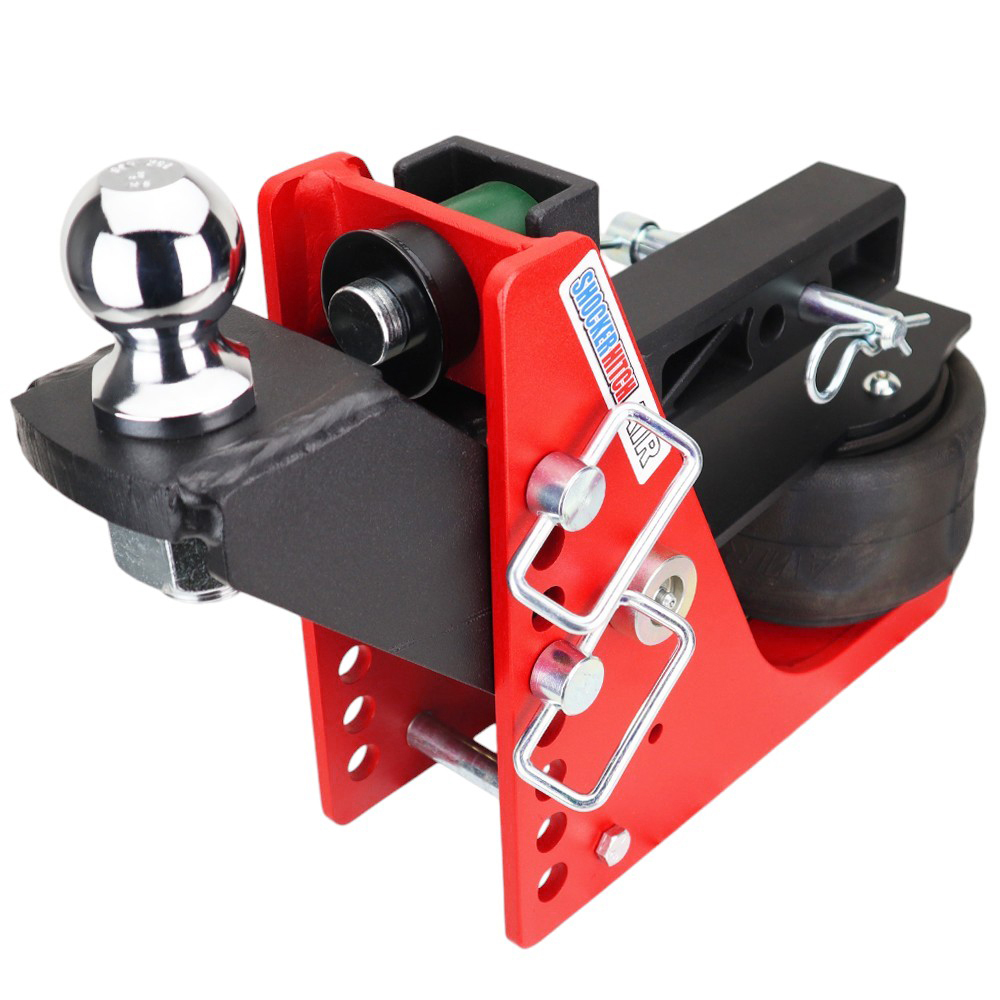

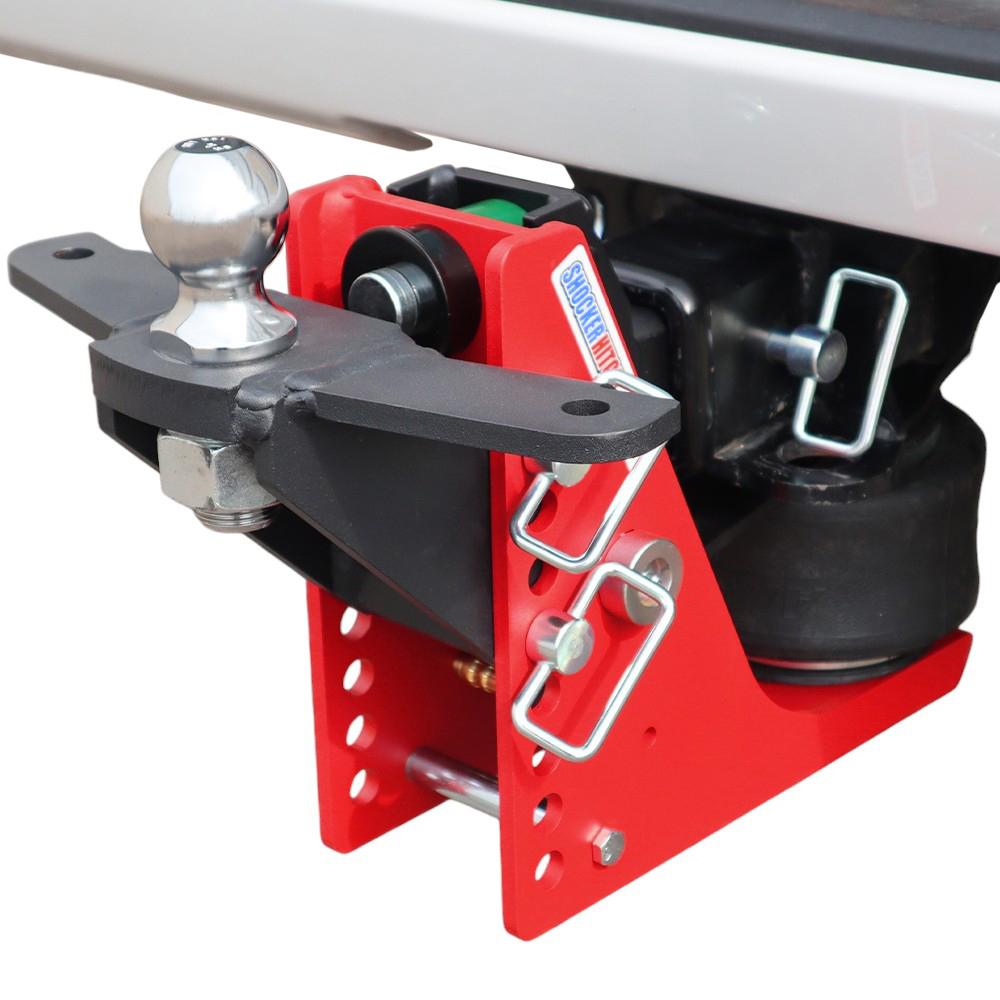

      – Raised Ball: 2″ Rise to 2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.

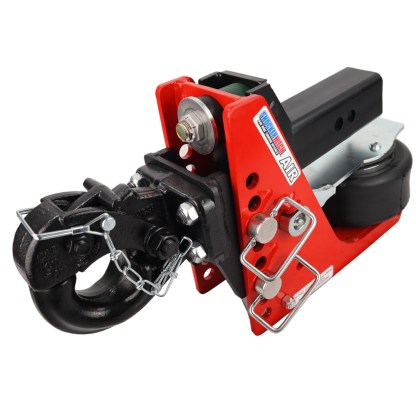

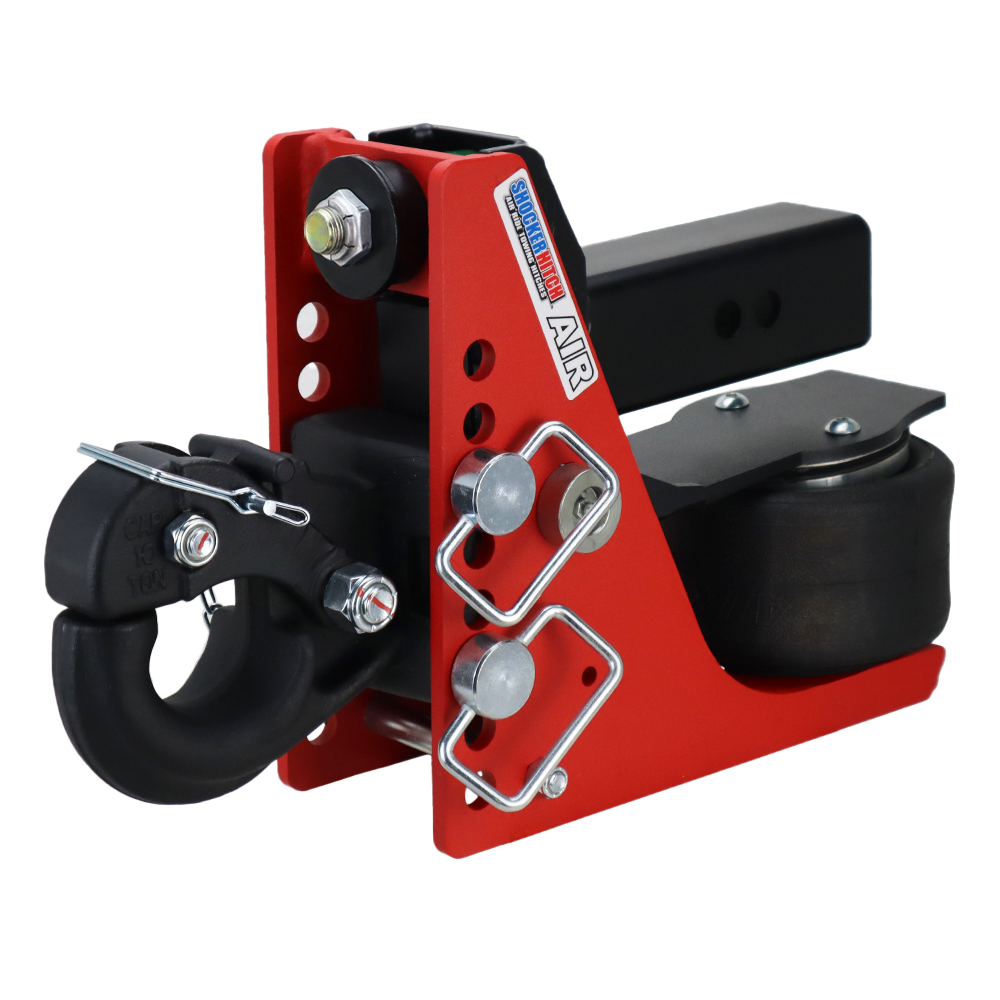

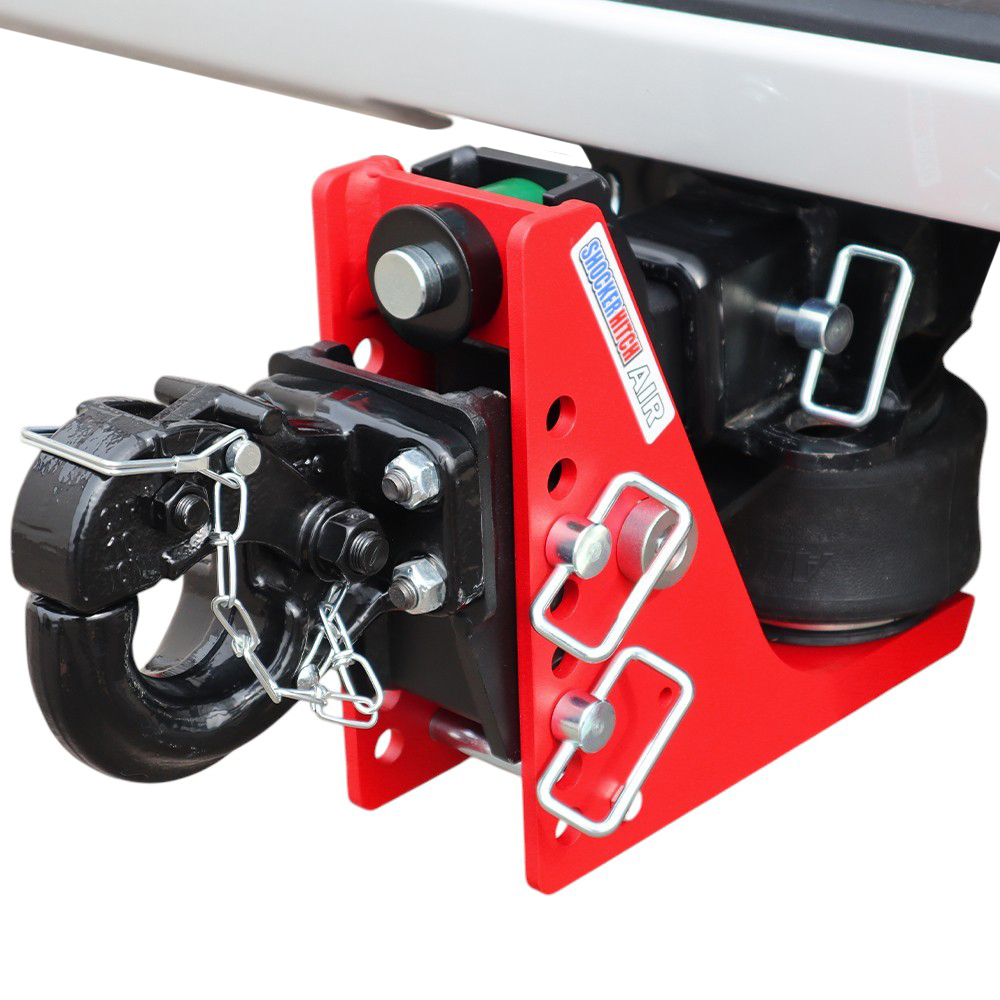

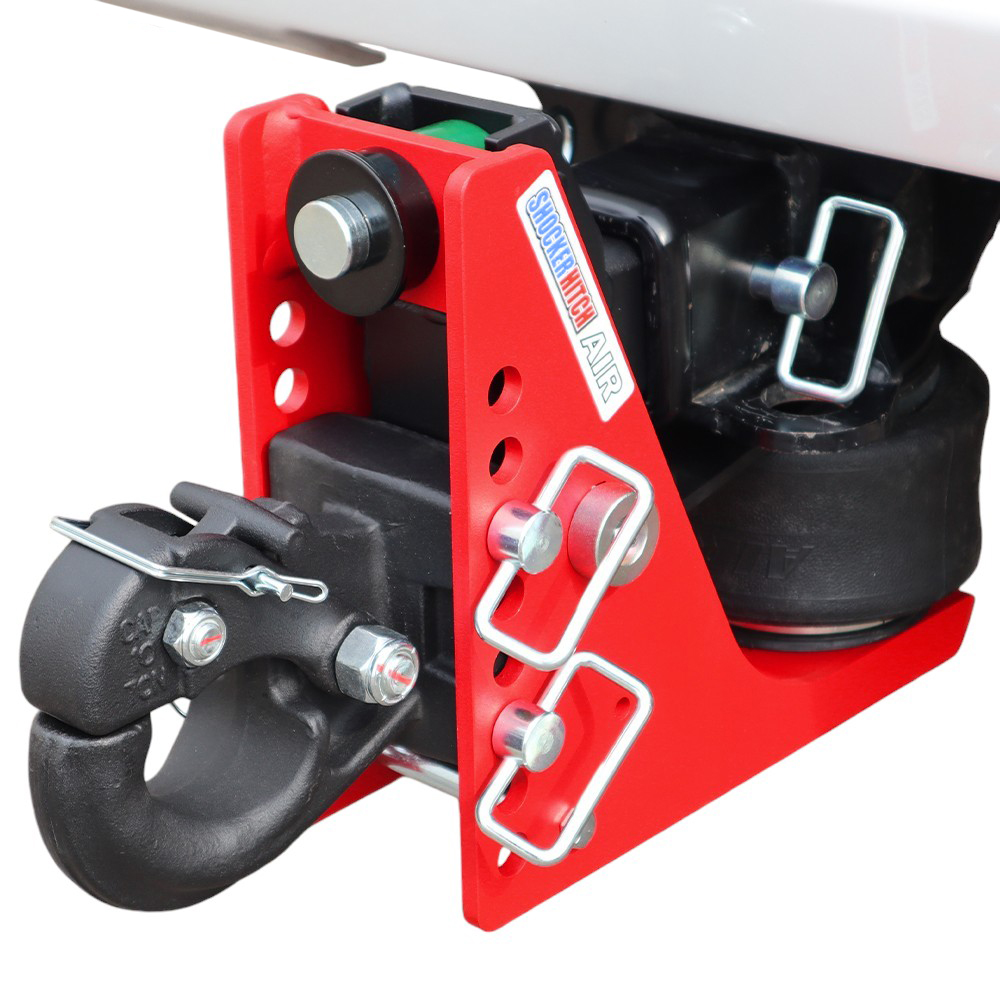

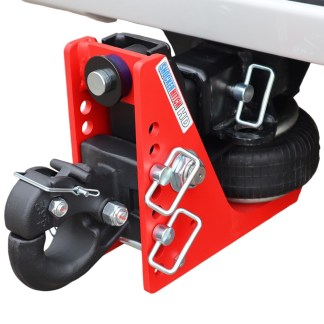

       Pintle Hook: 2.5″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.

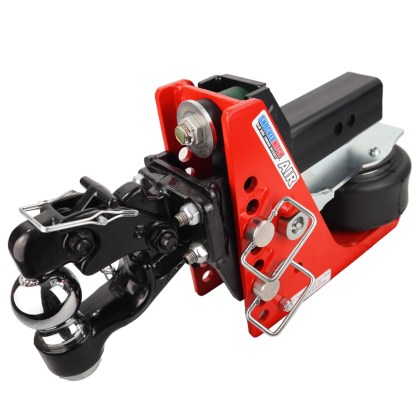

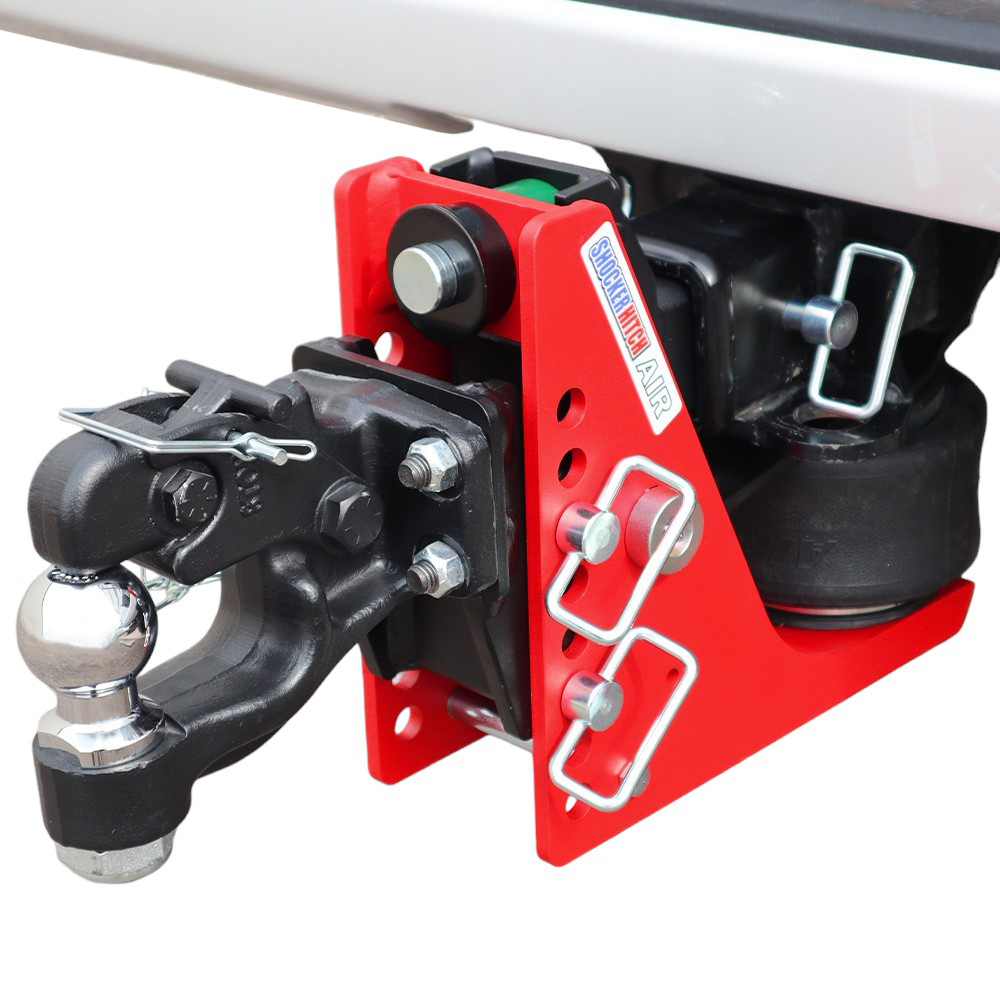

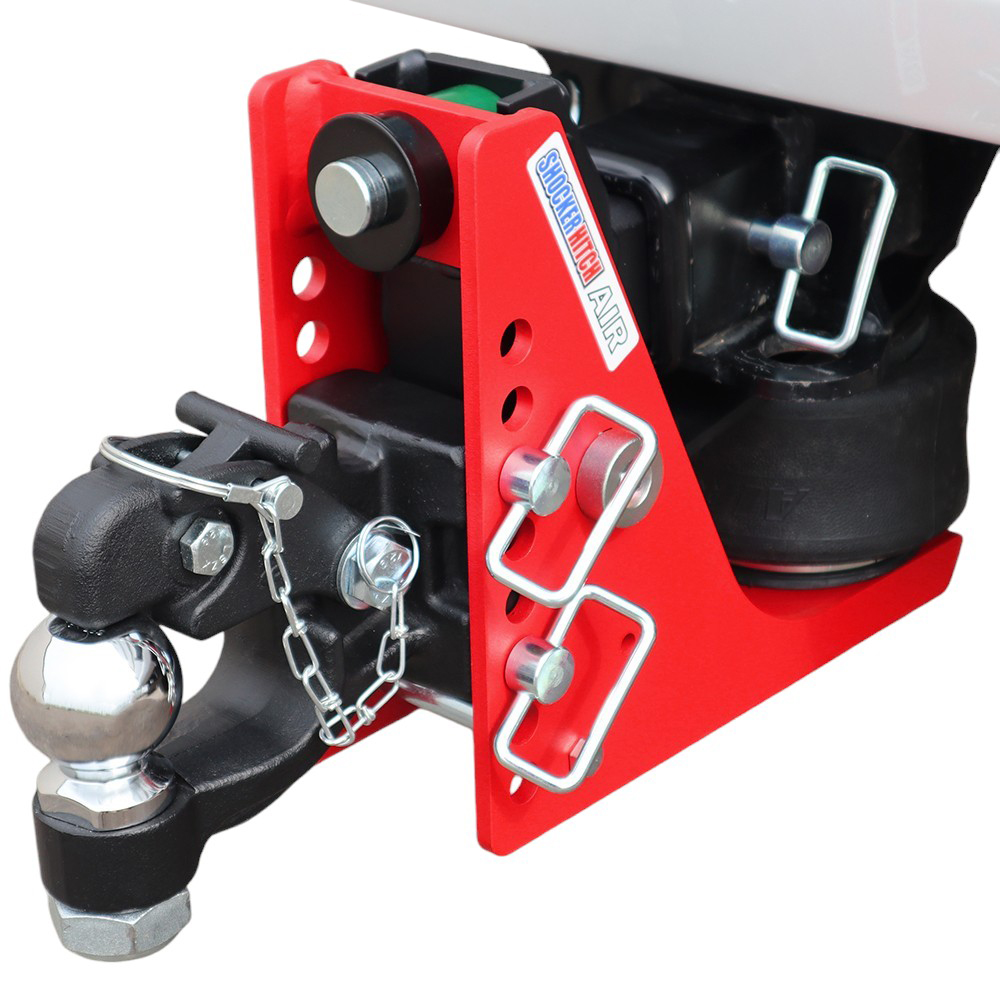

      – Pintle & Ball: 2.5″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).

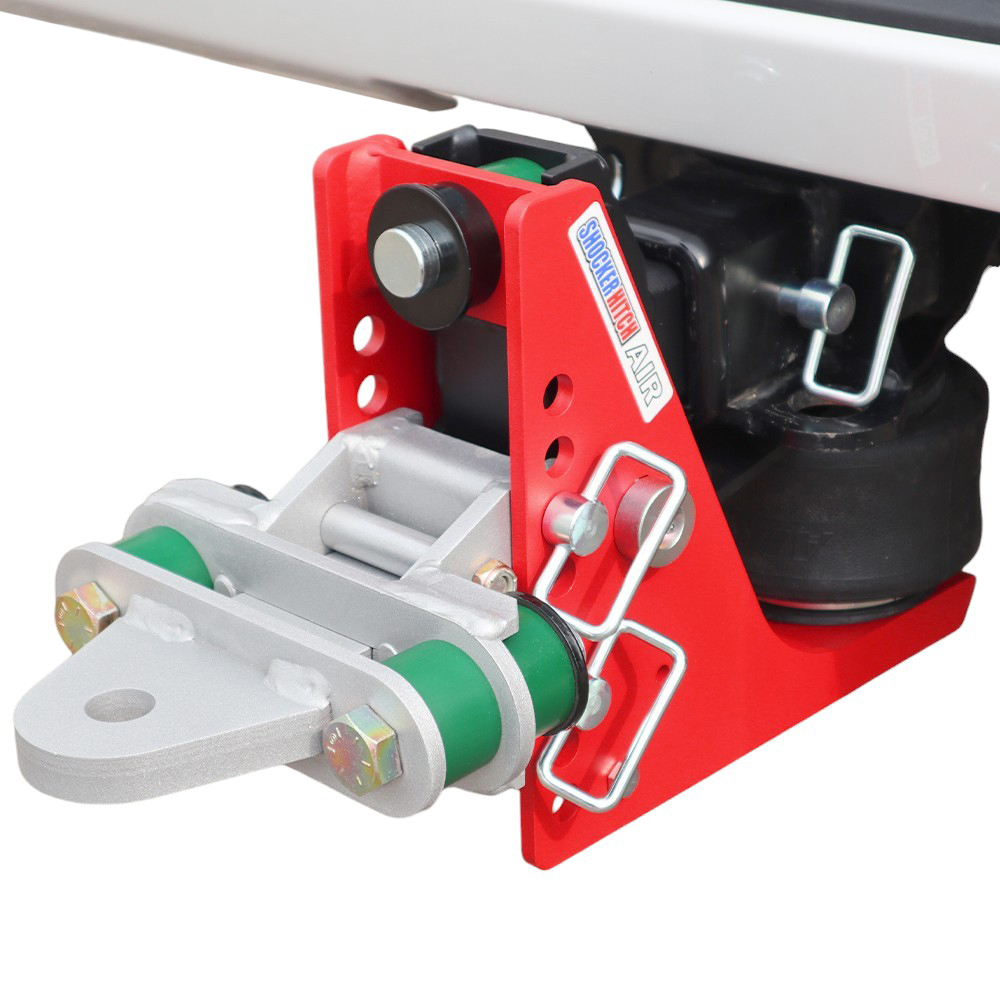

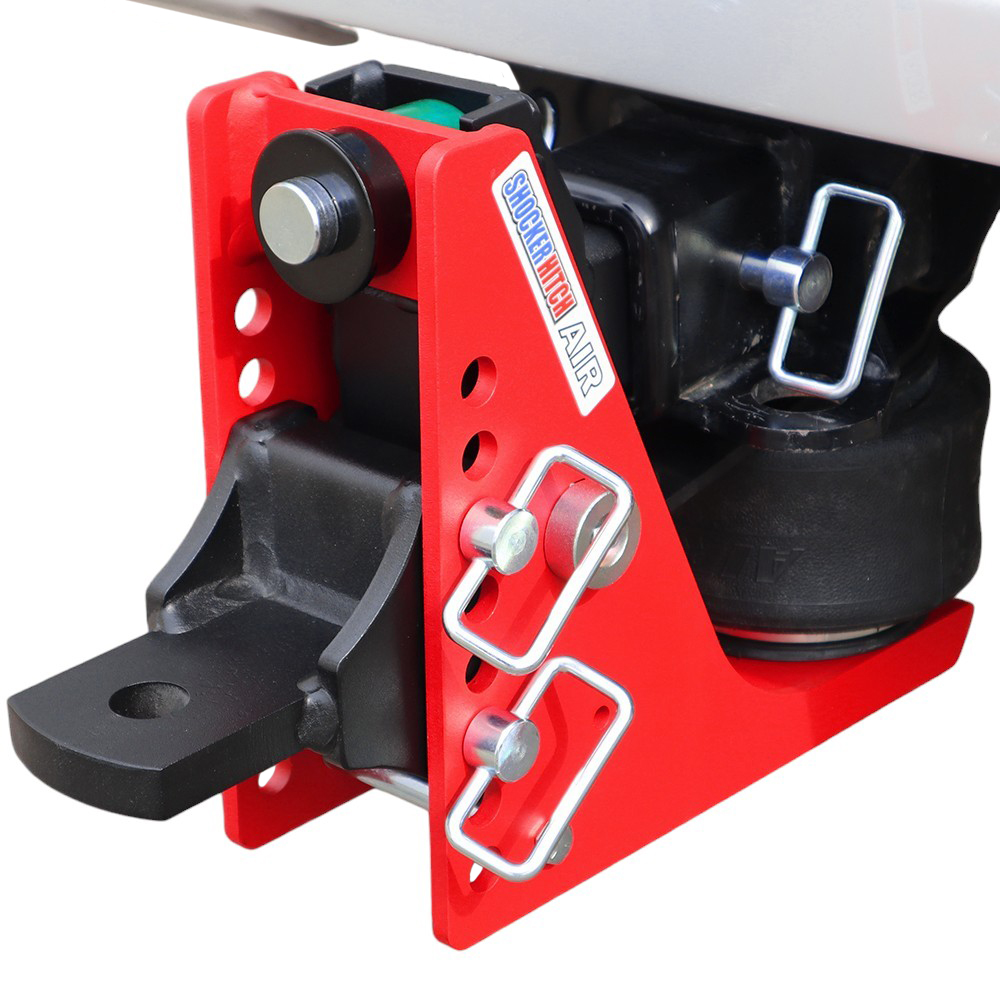

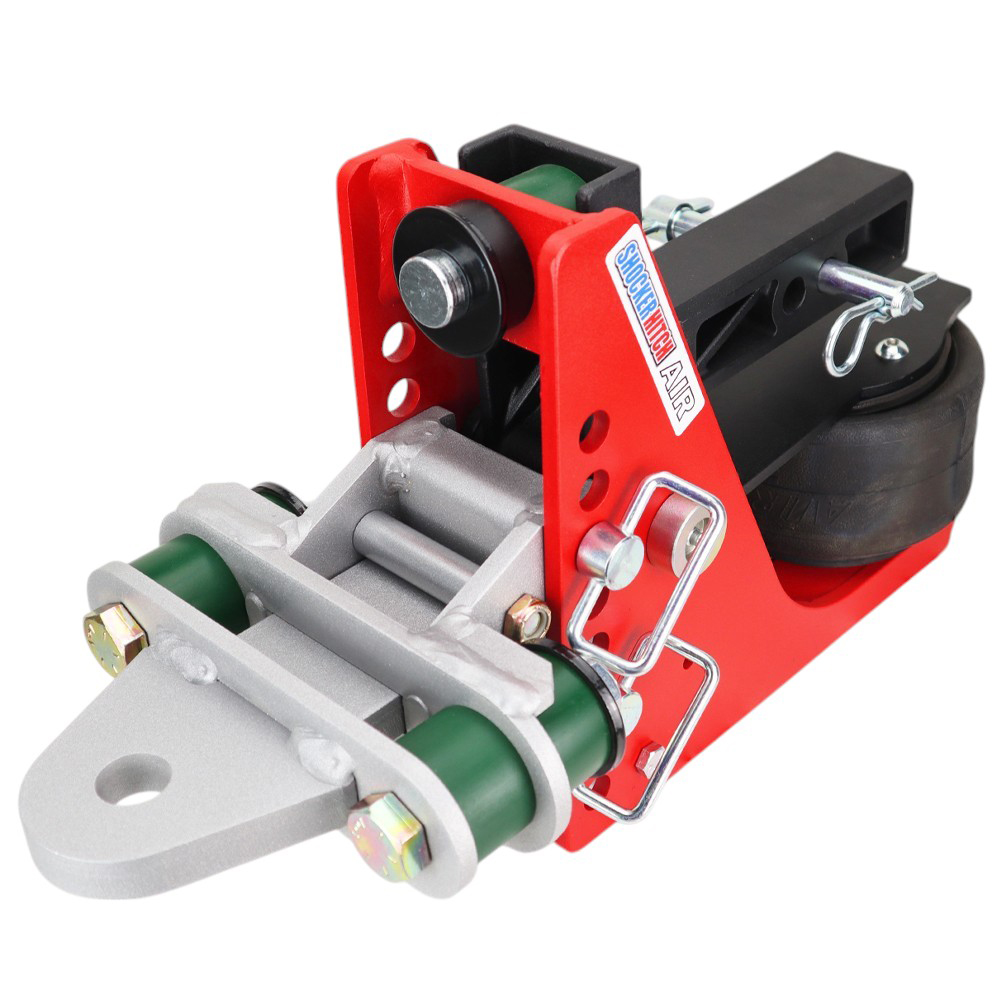

      – Drawbar: 0″ Rise to 4.5″ Drop | 20,000 lbs.

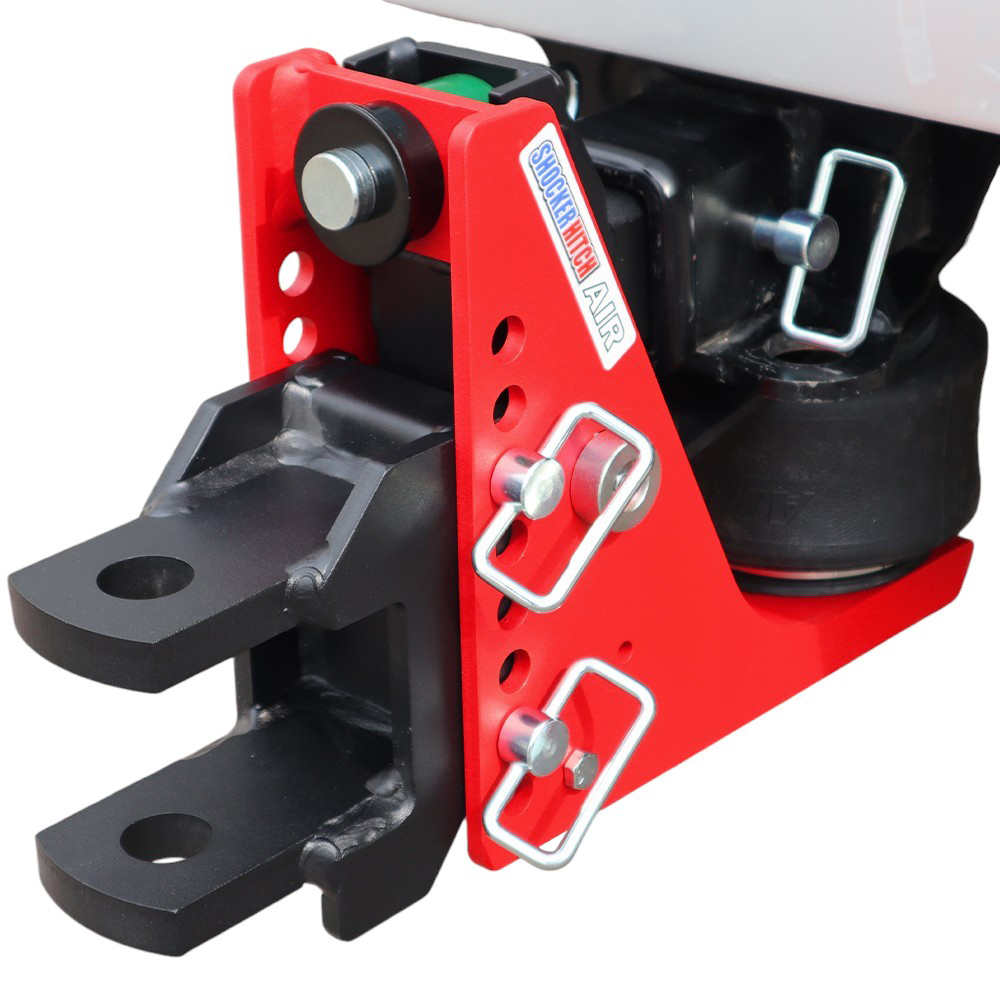

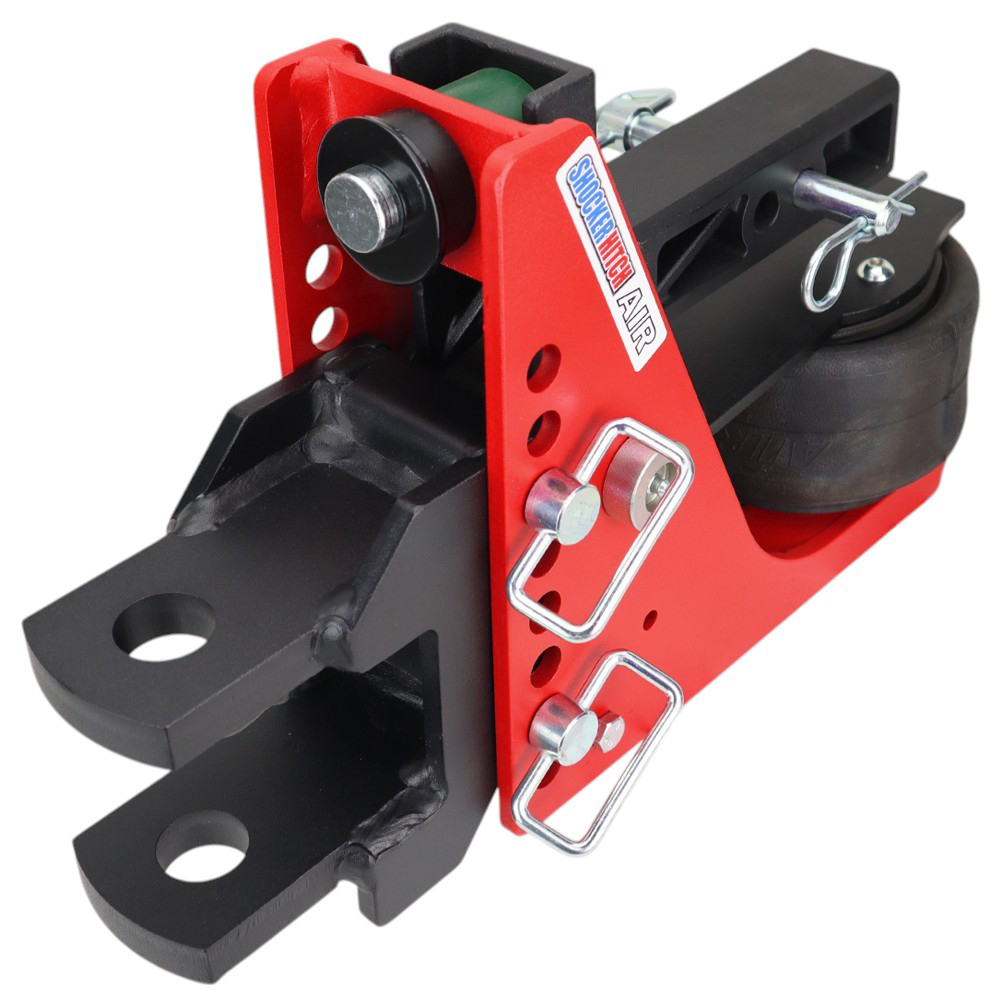

      – Clevis Mount: 3.5″ Drop to 5.5″ Drop | 20,000 lbs.

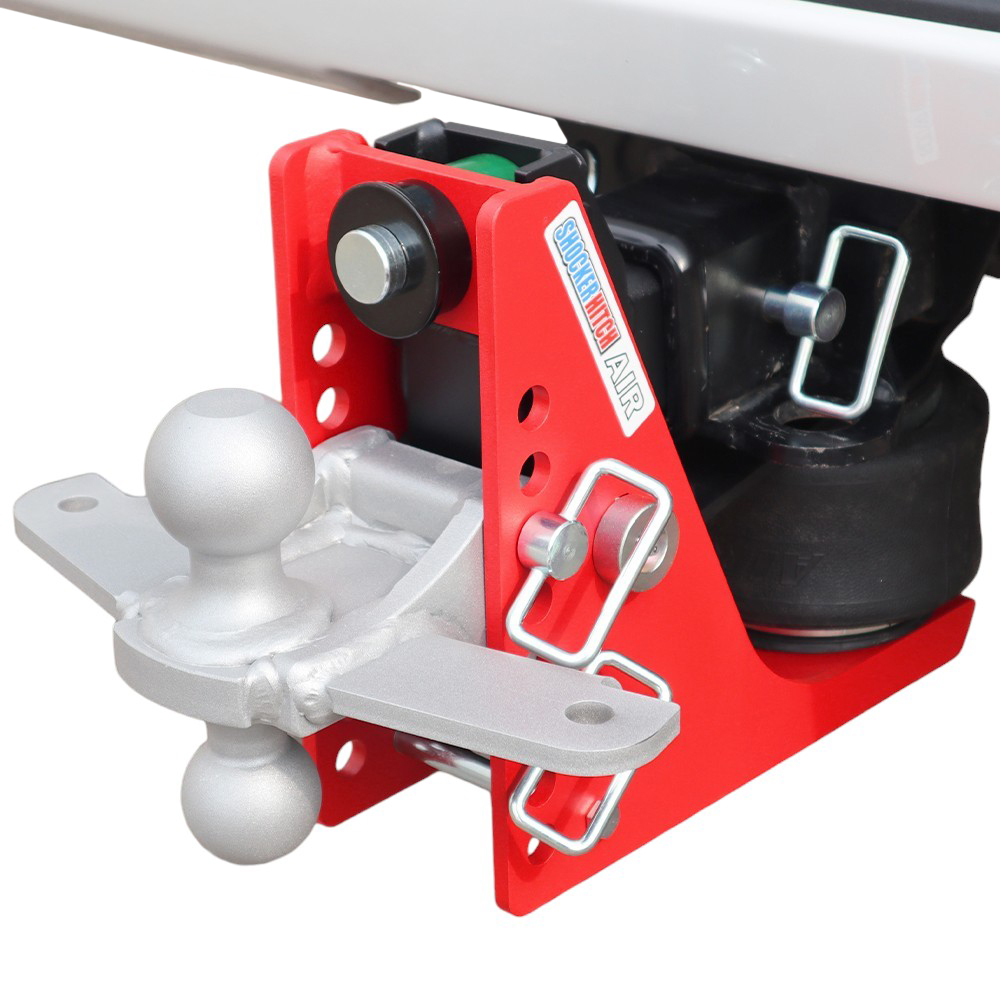

      – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above.

    Safety Notice: It’s important you read and follow the tongue & gross towing weight recommendations of all components of your trailer towing set up. This includes the tow vehicle, receiver hitch, tow hitch, ball mount attachment, trailer coupler & the ratings of the trailer you are towing. Never exceed max for any of the components you are using.  If the coupler rating is 8,000 lbs and the hitch is 12,000 lbs, then don’t tow over 8,000 lbs.

    Check out our guide to find out how much drop or rise you need.

  • Install arrow

    Install

    Shocker Air Bumper Hitch Installation Instructions

    The Shocker Air Bag Hitch ball mount is easy to install.  It comes complete with easy-to-understand instructions along with everything you need.  You can download the installation instructions or view the video below.

    Shocker Air Installation: First you must compress the air bag. Do this by depressing the air valve and pushing down on air bag. Once the bag has been compressed, you can install the unit into the receiver tube. Next, install the hitch pin.

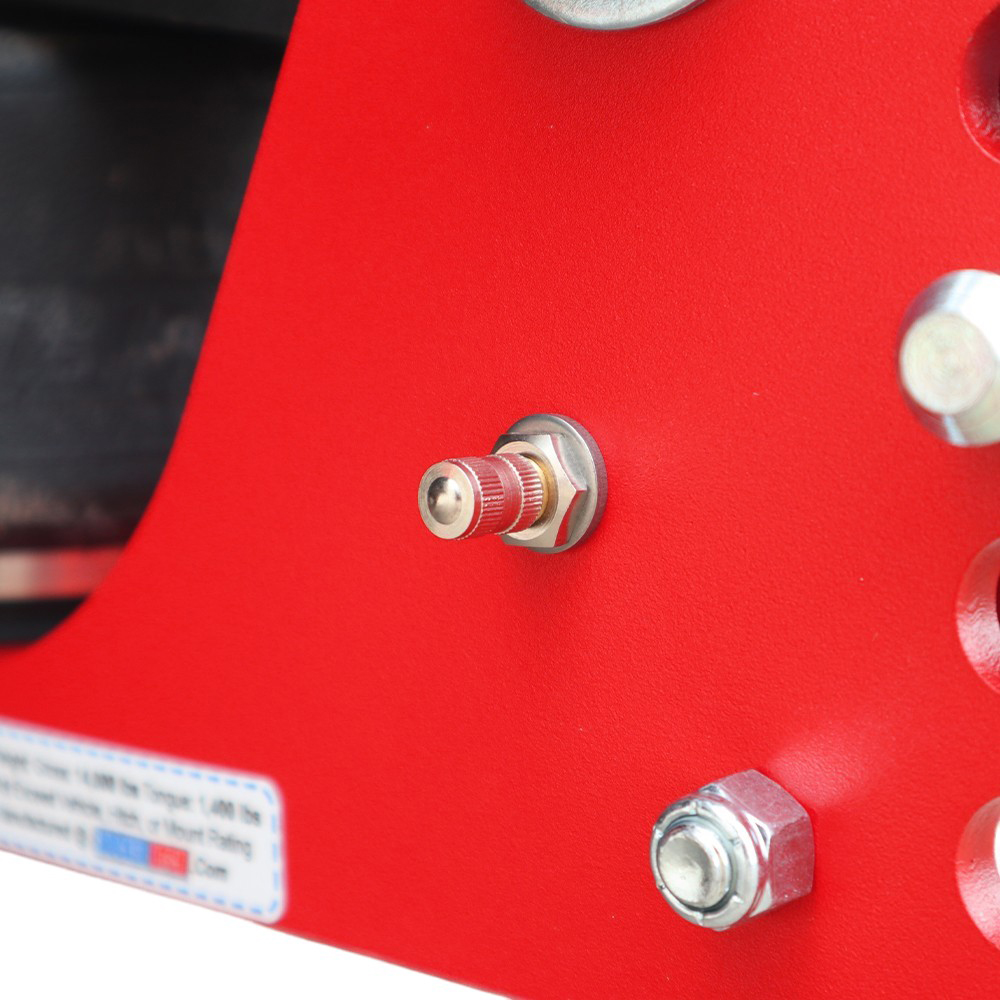

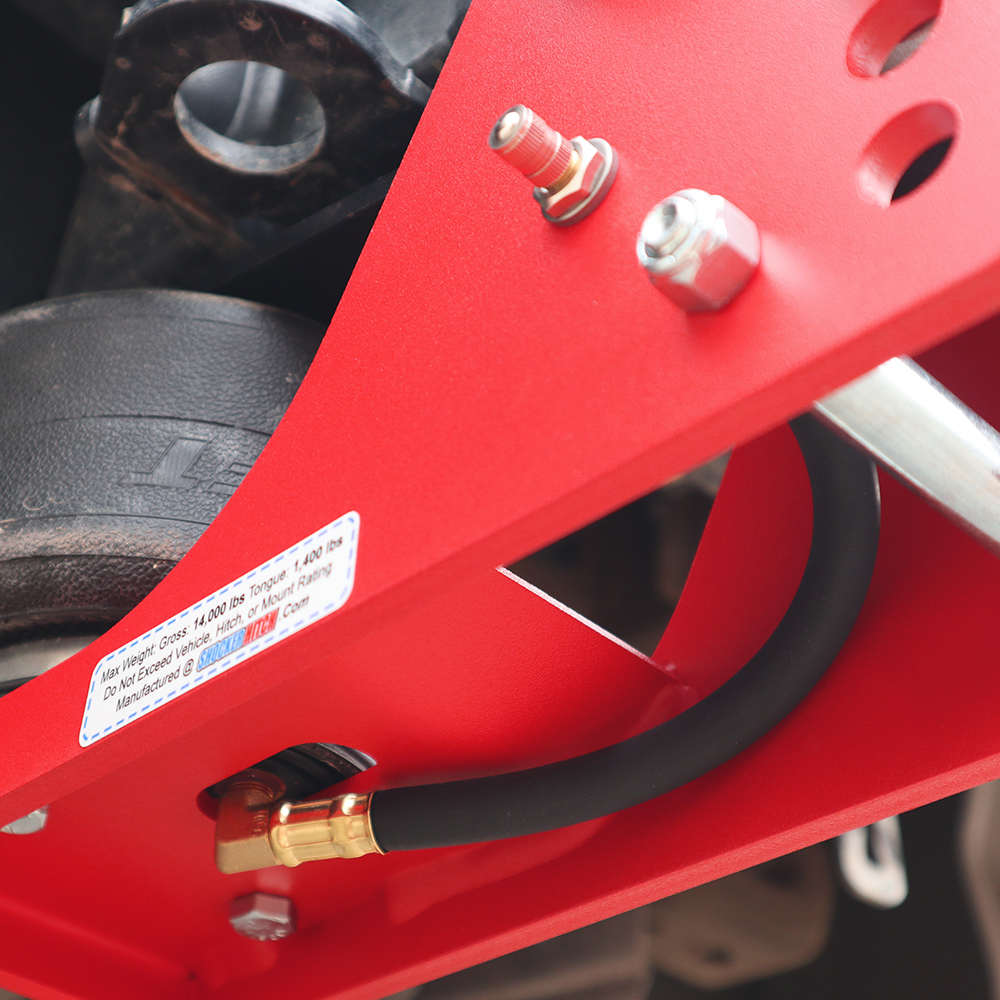

    To Set Air: Hook up a trailer using a properly selected ball adaptor and height adjustment in order to a level trailer when loaded. Next, inflate the air bag. As air pressure increases, the unit will rotate lifting the hitch point. Install enough air to lightly compress top bushing or until bump stop clearance is approximately 1/8″.

    Shocker Air Bumper Hitch Air Pressure Setting Video

    Additional Set Up Notes:

    • When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
    • Spacer block included and may be required when using 2″ shank (see spacer block install manual below)
    • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
    • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY.

    Maximum Air Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

    Shocker Air Receiver Hitch Install Instructions

    Shocker Air Hitch Install Video

    Note: Always use a good hitch ball with the proper recommended tow weight.

    Installation Issues

    We want you to have the best possible towing experience with your product and proper installation is important. If you need help, we are here for you. Just give us a call at 701-707-2666 or use our contact us form. You can also look up the items product page on our website and view the installation tab. Most products on our website have a set-up guide and installation video.

    We’re here to help. Contact Us

  • FAQ arrow

    FAQ

    Answers to Frequently Asked Questions

    How much air do I put in the Shocker Air Bumper Mount Receiver Hitch?
    With your trailer hooked up to the tow vehicle, and loads positioned for transport, air up shocker until main frame rotates and lightly compresses top bushing (about 1/8″ of squeeze or pinch in the bushing). See our quick How To Set PSI in Shocker Bumper Hitch Video.

    Will the Shocker Air Bumper Hitch work with Equalizer or Weight-Distribution?  If you are just use sway bars that hook to a mini ball, then yes, if you order the combo sway control ball mount attachment. If you have a equalizer or weight distribution hitch then it will not. However, check out our Air Equalizer for weight distribution hitches.  Note: If your pickup suspension can handle the weight of your trailer and doesn’t “squat” when you hook up your trailer to pickup, then you really don’t need a weight distribution hitch. A load leveling weight distribution hitch, distributes the weight between the pickup and trailer and is generally used if your pickup can’t handle the static trailer tongue weight load.

    How long will it hold air? This is a sealed system that will hold air for weeks or months. If you haul the same trailer with the same load weight, it should be good for quite some time.

    How long will the airbag last? Our airbags are an industrial bag and will last for years and years. They are similar to truck airbags but have been beefed up internally for our towing applications.

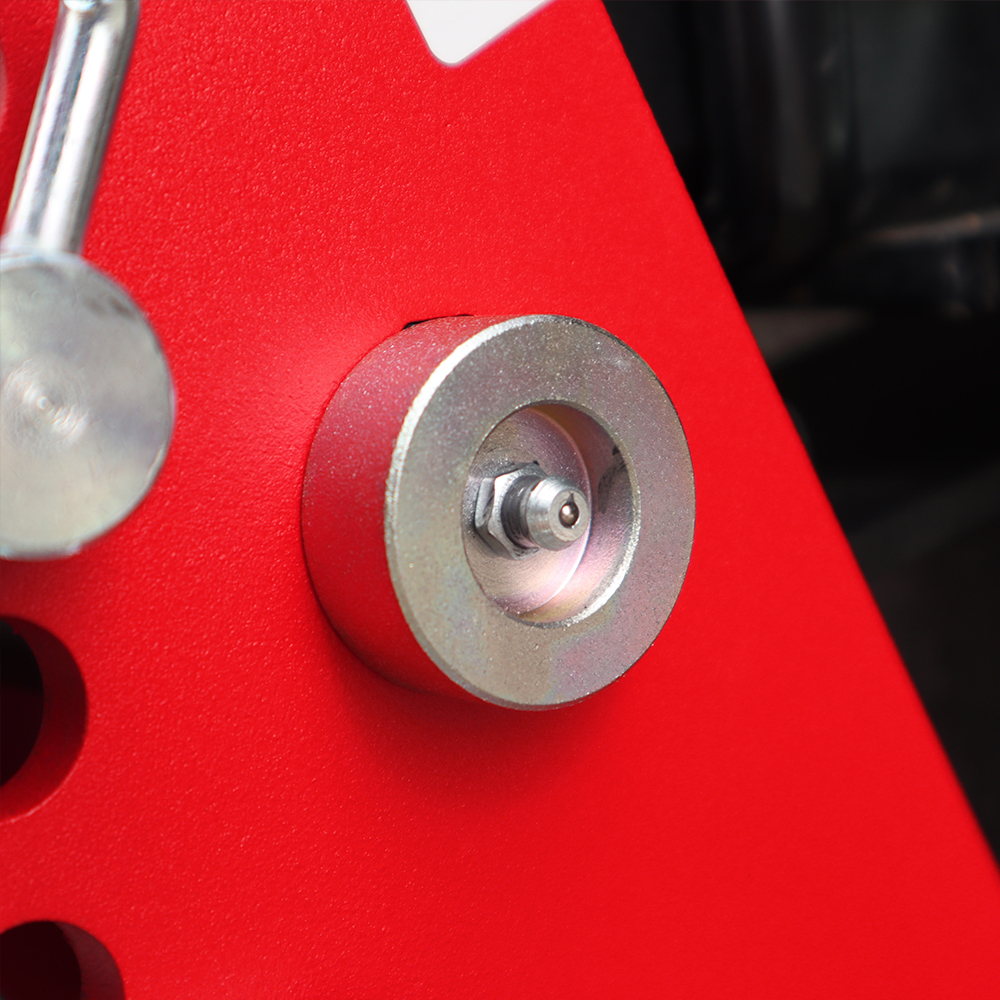

    How strong is the center pivot bolt?  The main pivot bolt with grease zerk, or center pivot bolt, used on the shocker air bumper hitch, is a custom made 1 inch diameter 1045 medium carbon steel bolt. Strategically heat treated to prevent wear and includes a machined grease passage for easy lubrication and maintenance. It should be noted that the yield strength of the 1″ pivot bolt exceeds the two 5/8″ bolts used to hold the typical ball coupler or receiver hitch.

    How do I know the Shocker Air receiver hitch will fit my truck?
    We have made sure that the receiver air shocker will fit into most Ford, Chevy, GMC Dodge, Toyota, Nissan & Honda Pickups, Vans & SUV’s (SUV’s were the receiver is under the bumper). There are some clearance issues with the Chevy Envoy, Ford Explorer, some imports and service body vehicles where the body extends below the receiver tube or the receiver tube is inside the bumper.  The Shocker Air receiver hitch is available in a 2″, 2 1/2″ & 3″ shank.

    How far below my pickup does the receiver air shocker hang? Five inches below bottom of receiver tube.

    How often do I grease it? The grease does not just lube the pivot; it also keeps water and dirt out. You cannot over grease it, once every few months should do it.

    Does the receiver air hitch work with sway bars?
    Yes, it works with the friction style sway control bar, however you want to order a ball mount with sway bar tabs. See our sway bar tab ball mount attachments.

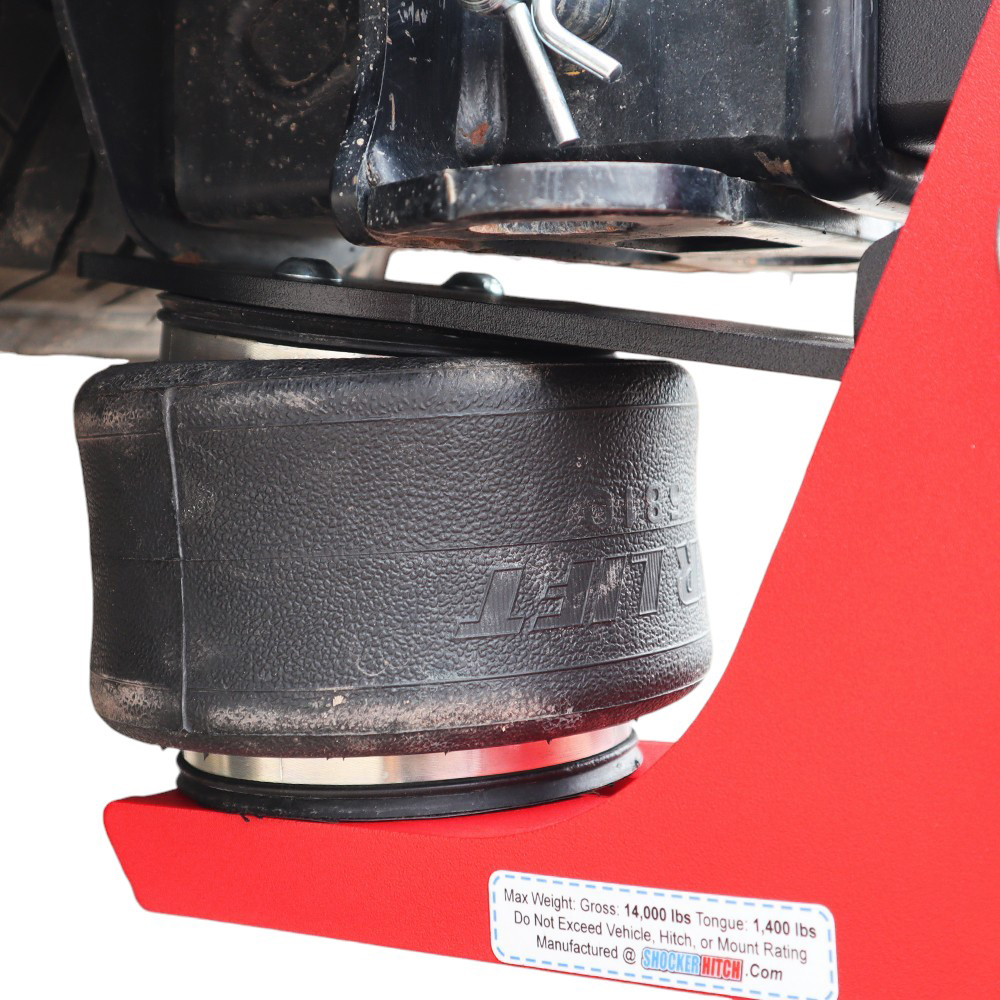

    How does the Air hitch work? The Receiver air shocker is like a teeter totter. One end is an air bag, a pivot in the middle, and a ball at the other end. This gives a “pillow” effect at the ball end.

    Should I tighten up the top jam nut on the receiver shocker? No. The air shocker needs at least one half inch of play to work properly.

    How long do the bump cushions last? This depends on if the hitch is left on the truck year round or not. If they bump cushions become mushy, you should replace them. Typical life expectancy is 5-7 years.

    How much does an Shocker Air bag receiver hitch weigh? The Receiver Air Shocker weighs 50-55 pounds

  • Warranty arrow

    Warranty

    This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch ✅ 60 Day Money Back Smooth Towing Guarantee!. View our online Warranty Registration Form to register your Shocker Hitch.

    60-DAY MONEY BACK GUARANTEE

    We want you to be 100% satisfied. You’ve got 60 days to ensure your hitch fits your lifestyle.

    SMOOTHER TOWING

    We guarantee whatever you are towing, the ride on your pickup and trailer will be smoother with any of our air & cushion products period.
    Installation Help

    FREE SHIPPING* & FREE RETURNS

    If you are not satisfied, you can return it for free the first 60 days. See our free shipping* & free return policy.

    HOMETOWN CUSTOMER SERVICE

    We are here to help. We are happy, when you are happy.
    Made in the USA

    INSTALL HELP

    We’re glad to answer any questions you have. support is here 8am‐5pm, Mon‐Fri at 701-707-2666 or you can email anytime.

    MADE IN THE USA

    All of our products are custom made with good all American folks in Jamestown, ND USA
    The Shocker Hitch Guarantee applies to products purchased from ShockerHitch.com.
  • Q & A (29) arrow

    Questions and answers of the customers

      I tow a 32' travel trailer that weighs approximately 6500 lbs empty and has a tongue weight of 660 lbs. My tow vehicle is a Ram 2500. We experience a good bit of bouncing on uneven / rough highways. What model of your hitch do you recommend? You do not recommend weight distribution bars with your hitch correct?
    1. 0 votes
      Q I tow a 32' travel trailer that weighs approximately 6500 lbs empty and has a tongue weight of 66...... Read more
      A

      For your setup, we would recommend our 12K Air Bumper Hitch as this is rated for 12,000 lbs GTW and 1,200 lbs TW. This hitch will help absorb that bouncing and tugging feeling that you feel down the road, check out our Shocker Air Bumper Hitch 101 video for more details. Also, with this specific model, you cannot use weight distribution as it is not designed for that. If you are having sagging issues with your trailer, check out our Air Equalizer for Weight Distribution which is made for that type of towing issue.

    2. Do you have a hitch rated for 20,000 pounds and like a 2500 pound tongue weight?
    3. 0 votes
      Q Do you have a hitch rated for 20,000 pounds and like a 2500 pound tongue weight?
      A Yes, if you take a look at the drop down menu above, you can choose our 20,000 lbs air hitch. That system has a 20,000 lbs GTW and a 2,000 TW.
      A Our HD air bumper hitch is rated at 20,000 lbs GTW (towing capacity) and a 2,000 lbs tongue weight. Most factory 2" receiver hitches are 12,000 lbs gtw & 1,200 lbs tw / 2.5" receiver hitches are 16,000 to 18,000 lbs gtw & 1,800 lbs tw & 3" receiver hitches are 22,000 lbs gtw & 2,200 lbs tw.
    4. Do you have a diagram showing overall dimensions?
    5. 0 votes
      Q Do you have a diagram showing overall dimensions?
      A

      We do not provide overall dimensions for our hitches but if you let us know a certain measurement you are looking for we would be more than happy to help you out.

    6. What is the distance between the two hitch pin holes, center to center, and the ball on the 2-1/2 12,000# ?
    7. 0 votes
      Q What is the distance between the two hitch pin holes, center to center, and the ball on the 2-1/2...... Read more
      A

      We do offer two pin holes on our shank. The distance between the pin holes to the center of the ball is 9-1/2 to 10-1/2 inches.

    8. Since this style of hitch doesn't accommodate weight distribution, but vehicle manufacturers clearly state that WD is recomended over 5000lb tow wt, how do you propose navigating legal issues if involved in an accident (if I were to purchase)?
    9. 0 votes
      Q Since this style of hitch doesn't accommodate weight distribution, but vehicle manufacturers clea...... Read more
      A Our hitch is able to accommodate 12,000 to 20,000 lbs GTW Capacity. However, you are not to exceed the weight limits of your own vehicle. If you have more questions please contact us at 701-707-2666.  We also manufacture a air equalizer for w-d hitches that can be found here.
    10. Is it safe on a trailer extension bar?
    11. 0 votes
      Q Is it safe on a trailer extension bar?
      A

      We do not recommend using our Shocker Air hitch with a trailer extension bar.

    12. After loaded do I need refill or deflate the air to adjust the airbag?
    13. 0 votes
      Q After loaded do I need refill or deflate the air to adjust the airbag?
      A

      Adding air should be the last step in setting your Shocker Hitch up, after loading your trailer. You will want to make sure to remove any excess air when the hitch isn't in use to prevent wear and tear on the hitch itself.

    14. I haul equipment often, will this 20k bumper pull hitch handle more than 10% tongue weight like your gooseneck variants?
    15. 0 votes
      Q I haul equipment often, will this 20k bumper pull hitch handle more than 10% tongue weight like y...... Read more
      A

      The max tongue weight for our Shocker HD Air Receiver hitch is 2,000 lbs, or 10% of its total weight capacity.

    16. 05 Nissan Titan V8 I haul 16 ft atv trailer . What style hitch would I need ?
    17. 0 votes
      Q 05 Nissan Titan V8 I haul 16 ft atv trailer . What style hitch would I need ?
      A

      We offer a verity of hitches that would work with your vehicle. The two that would work the best would be the Impact Cushion Hitch and the Shocker Air Hitch. Both of these hitches will provide a smoother safer ride. The Impact Cushion offers a simple design without the air spring but still alleviates the jerking and jarring. Here is a link to our Cushion Hitches.  https://shockerhitch-vip.md-staging.com/product-category/receiver-hitches/cushioned-ball-mounts/

      With the second option being the Air Hitch which will give you even more filtration of the bumps, jarring and jerking. The air spring is adjustable to your trailer and load by adding or letting out air through the valve. With the ability to adjust the air pressure you are able to nearly eliminate all of the unwanted surging. Here is a link to our air hitch.    https://shockerhitch-vip.md-staging.com/product-category/receiver-hitches/air-bag-hitches/

    18. Will this help stop front end bounce or Porpoising when towing?
    19. 0 votes
      Q Will this help stop front end bounce or Porpoising when towing?
      A

      This hitch should take out about 80-90% of the bounce and Porpoising .

    Send me a notification for each new answer.
