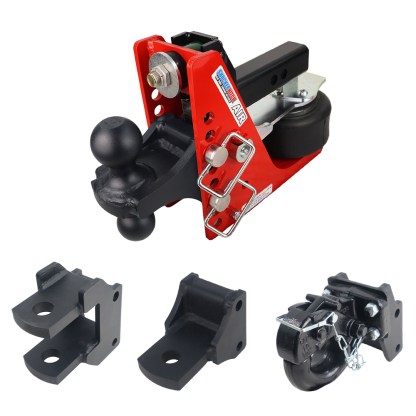

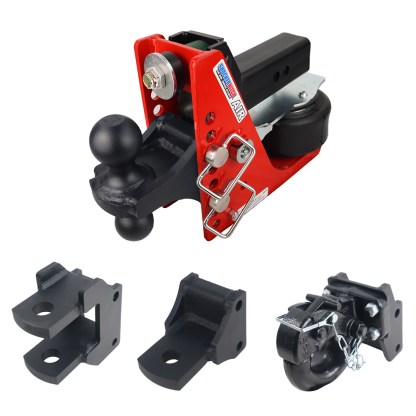

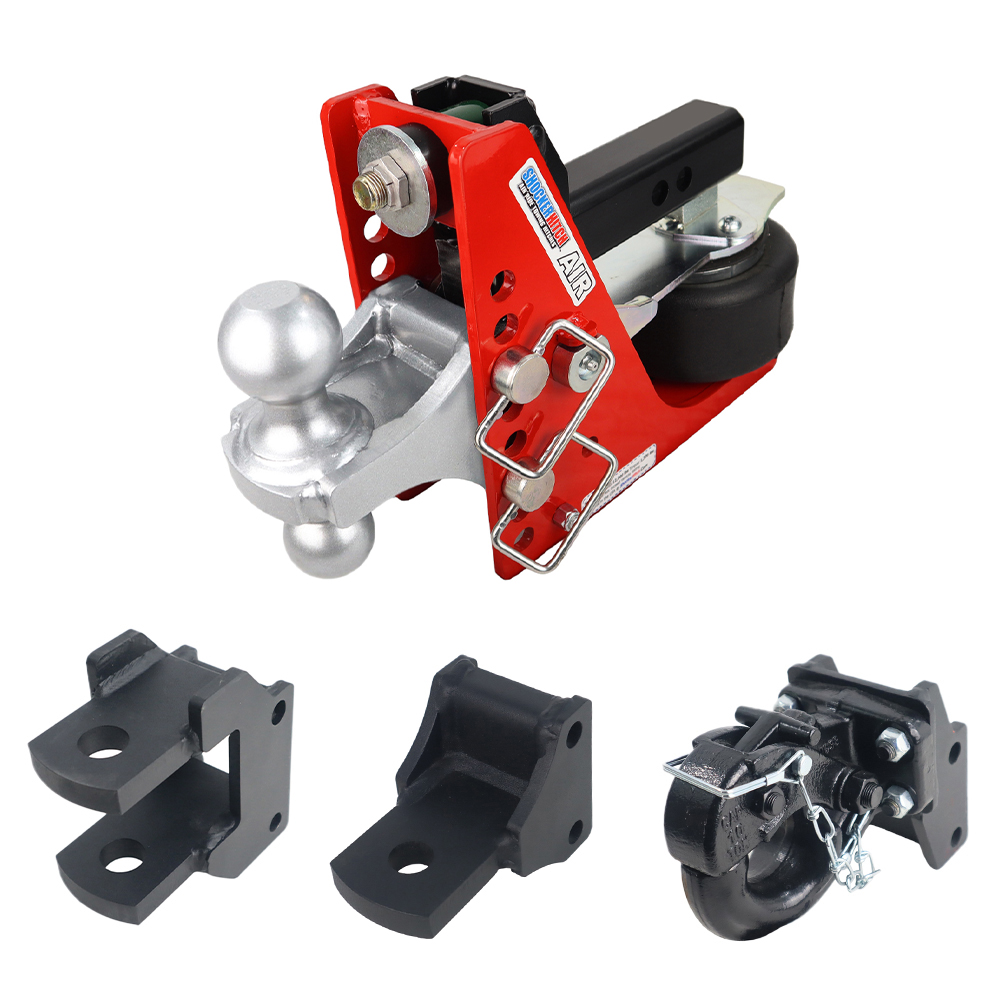

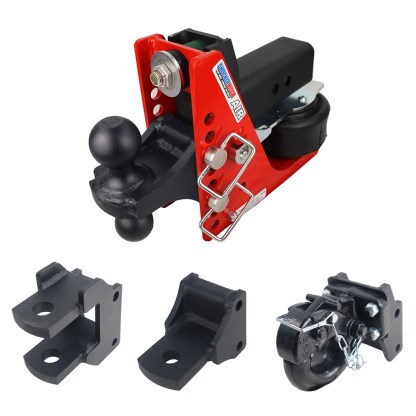

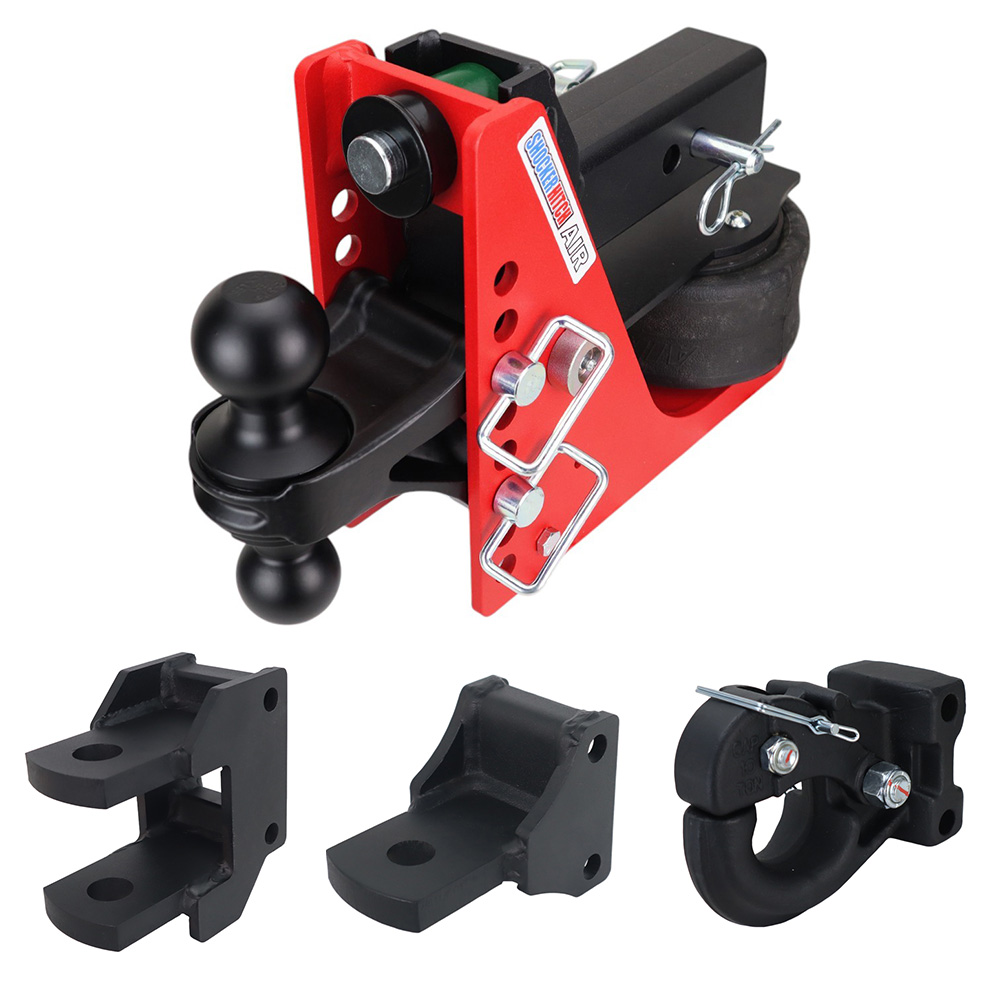

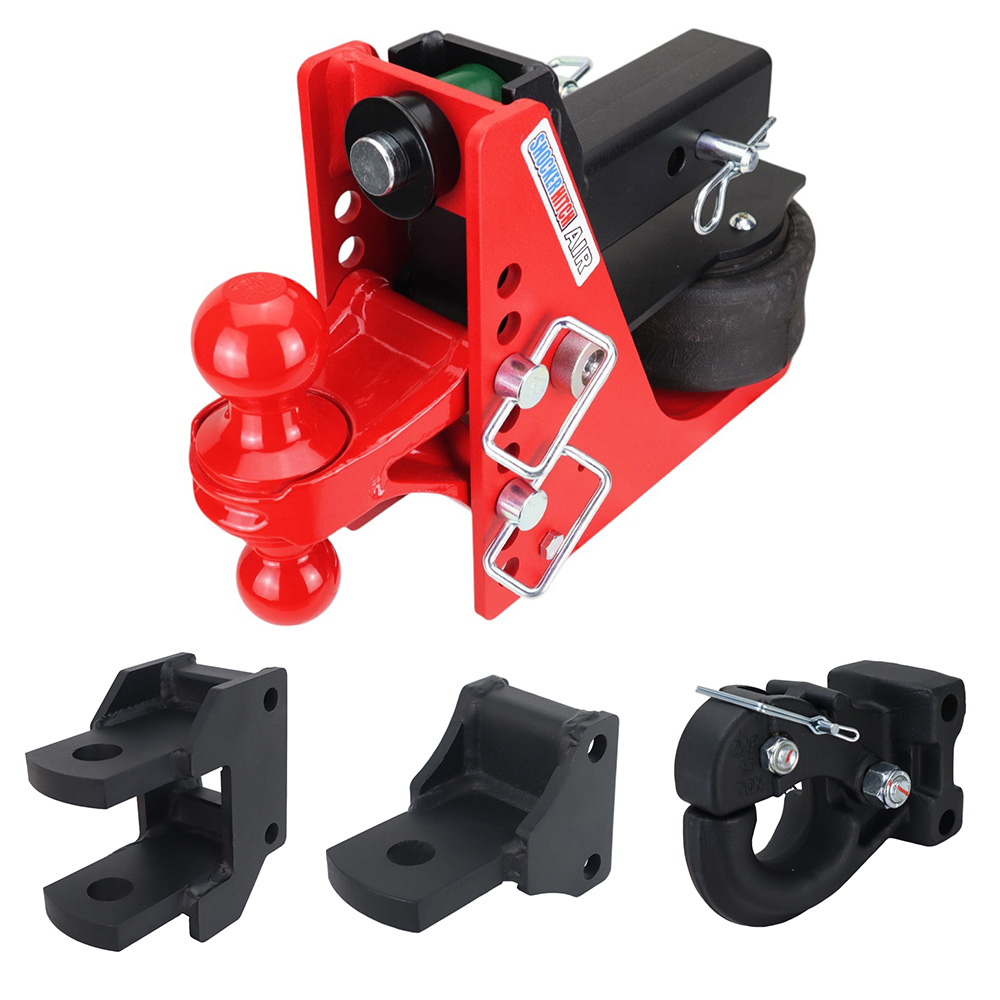

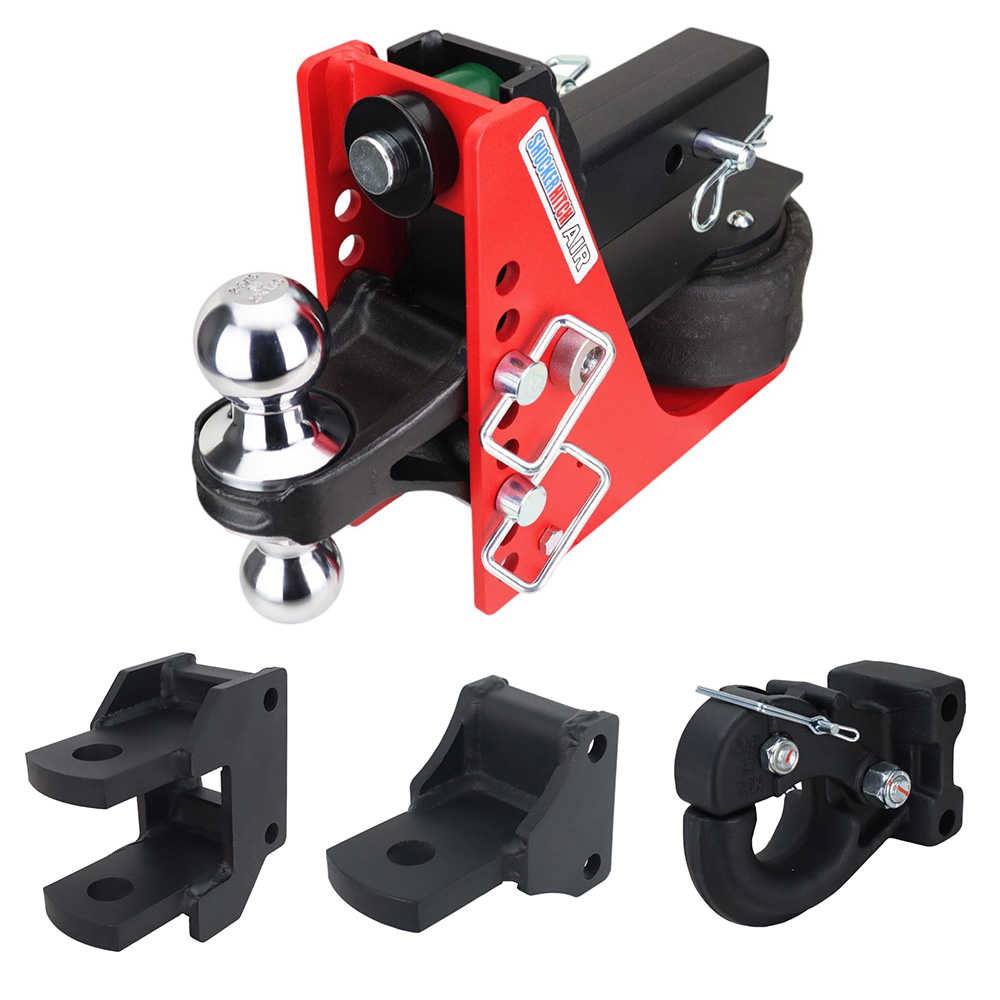

Shocker Air Hitch Combo Ball & Farm Mount Towing Kit

Rated 5.00 out of 5 based on 2 customer ratings

$892.36$1,039.56$1,059.96$1,229.96

Money IconExtra 8% OFF, hurry limited time offer.
Free Ground Shipping*
Usually Ships on or Before Thu 10/10/24
Usually Ships on or Before Thu 10/10/24
Usually Ships on or Before Thu 10/10/24
Usually Ships on or Before Thu 10/10/24
Usually Ships on or Before Thu 10/10/24
Usually Ships on or Before Thu 10/10/24
Clear
OR

  • Videos arrow

    Videos

    Shocker Air Receiver Hitch Videos

  • Drop/Rise Guide arrow

    Drop/Rise Guide

    • Air Bumper Hitch Mount Drop & Rise + Tow Rating Guide

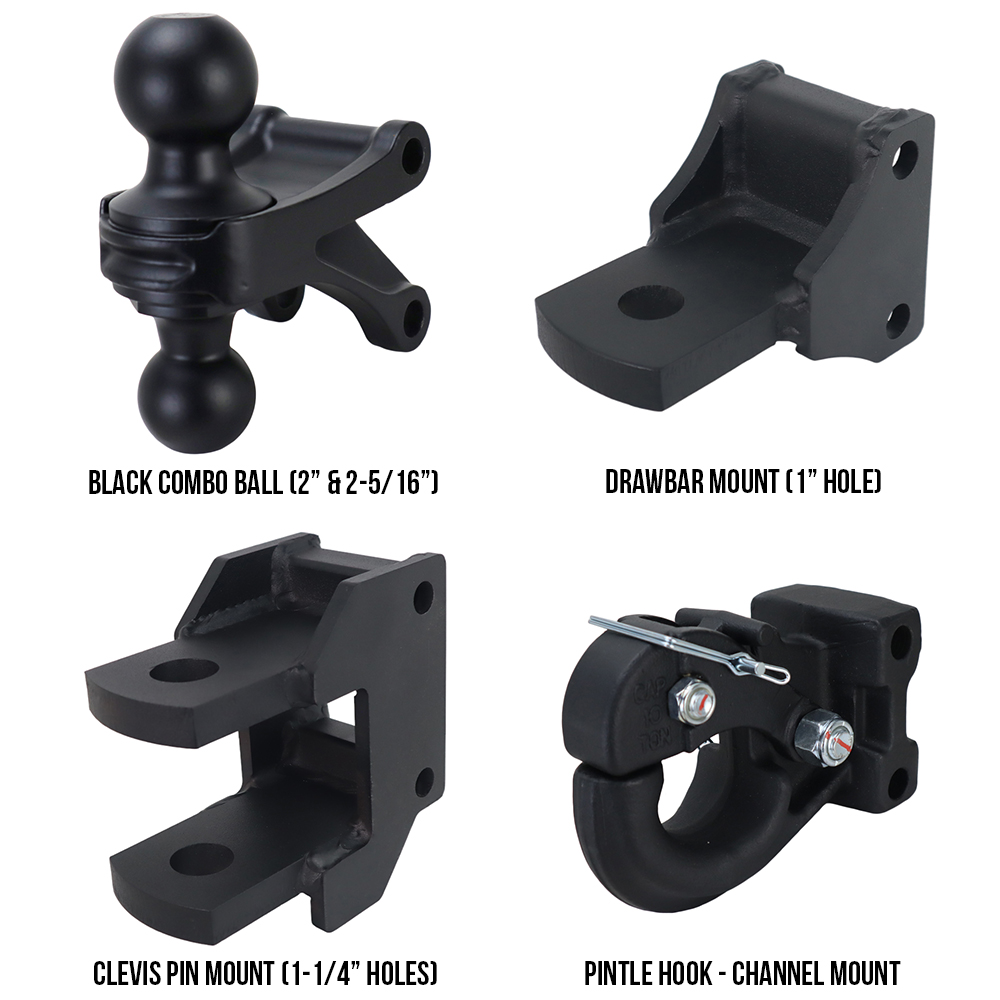

      – Combo Ball: 0″ Rise to 4.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Drop Ball: 4.5″ to 8.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Raised Ball: 2″ Rise to 2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
       Pintle Hook: 2.5″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
      – Pintle & Ball: 2.5″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Drawbar: 0″ Rise to 4.5″ Drop | 20,000 lbs.

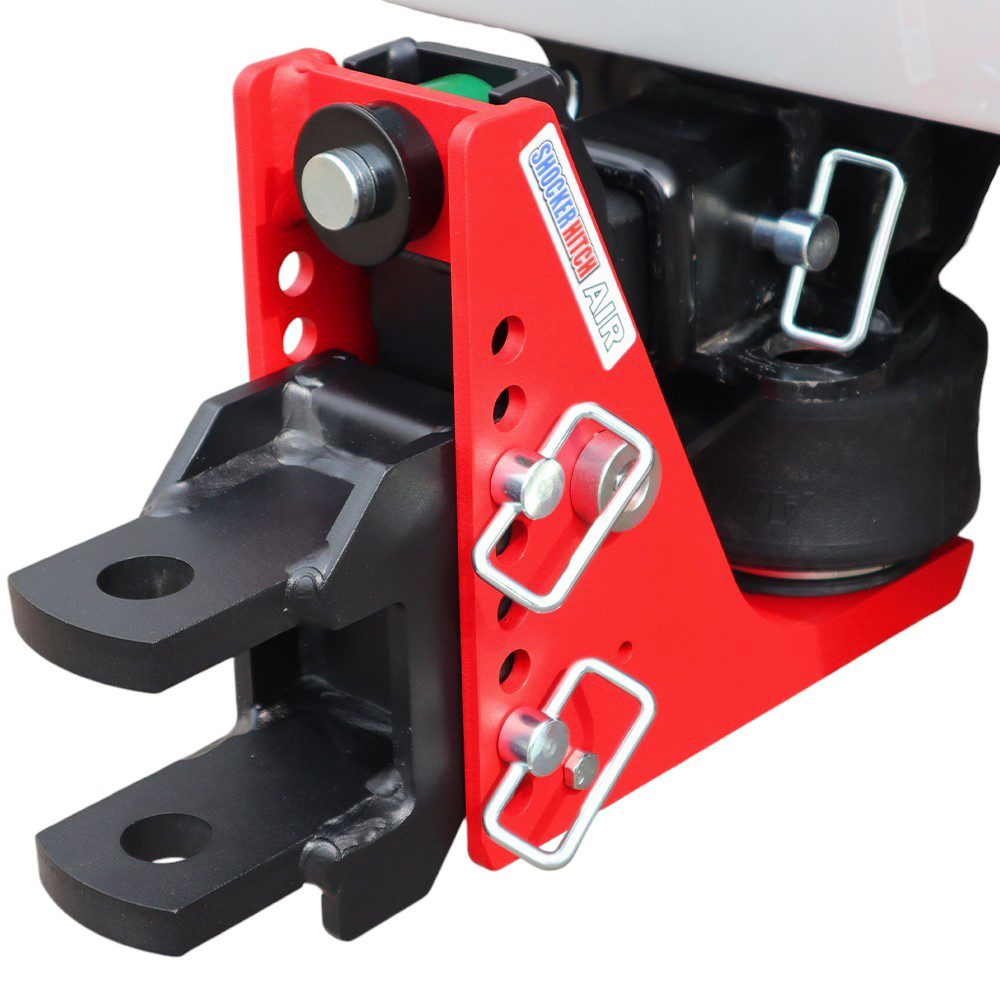

      – Clevis Mount: 3.5″ Drop to 7.5″ Drop | 20,000 lbs.
      – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above.

    Safety Notice: Towing capacity is limited by lowest rated component.

    Check out our guide to find out how much drop or rise you need.

  • Install arrow

    Install

    Shocker Air Bumper Hitch Installation Instructions

    The Shocker Air Bag Hitch ball mount is easy to install.  It comes complete with easy-to-understand instructions along with everything you need.  You can download the installation instructions or view the video below and learn How much PSI for my Shocker Air Bumper Hitch?

    Shocker Air Installation: First you must compress the air bag. Do this by depressing the air valve and pushing down on air bag. Once the bag has been compressed, you can install the unit into the receiver tube. Next, install the hitch pin.

    To Set Air: Hook up a trailer using a properly selected ball adaptor and height adjustment in order to a level trailer when loaded. Next, inflate the air bag. As air pressure increases, the unit will rotate lifting the hitch point. Install enough air to lightly compress top bushing or until bump stop clearance is approximately 1/8″.

    Shocker Air Bumper Hitch Air Pressure Setting Video

    Shocker Air Receiver Hitch Install Instructions

    Shocker Air Hitch Install Video

    Additional Set Up Notes:

    • When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
    • Spacer block included and may be required when using 2″ shank (see spacer block install manual below)
    • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
    • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY.

    Maximum Air Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

    Note: Always use a good hitch ball with the proper recommended tow weight.

    Will the Shocker Air Bumper Hitch work with Equalizer or Weight-Distribution?  If you have an equalizer or weight distribution hitch then it will not. However, check out our Shocker Air Equalizer for weight distribution hitches. If you are just using friction sway bars that hook to a mini ball (such as the shocker sway control arm bar kit), then yes, if you also have one of our sway bar tab mounts such as the combo sway control ball mount attachment.

    Safety Notice: Towing capacity is limited by lowest rated component..

    Installation Issues

    We want you to have the best possible towing experience with your product and proper installation is important. If you need help, we are here for you. Just give us a call at 701-707-2666 or use our contact us form. You can also look up the items product page on our website and view the installation tab. Most products on our website have a set-up guide and installation video.

    We’re here to help. Contact Us

  • Warranty arrow

    Warranty

    This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch ✅ 60 Day Money Back Smooth Towing Guarantee!. View our online Warranty Registration Form to register your Shocker Hitch.

    60-DAY MONEY BACK GUARANTEE

    We want you to be 100% satisfied. You’ve got 60 days to ensure your hitch fits your lifestyle.

    SMOOTHER TOWING

    We guarantee whatever you are towing, the ride on your pickup and trailer will be smoother with any of our air & cushion products period.
    Installation Help

    FREE SHIPPING* & FREE RETURNS

    If you are not satisfied, you can return it for free the first 60 days. See our free shipping* & free return policy.

    HOMETOWN CUSTOMER SERVICE

    We are here to help. We are happy, when you are happy.
    Made in the USA

    INSTALL HELP

    We’re glad to answer any questions you have. support is here 8am‐5pm, Mon‐Fri at 701-707-2666 or you can email anytime.

    MADE IN THE USA

    All of our products are custom made with good all American folks in Jamestown, ND USA
