Shocker Air Equalizer & Sway Control Kit for Weight Distribution Hitch – 12,000 lbs

Rated 5.00 out of 5 based on 2 customer ratings

$791.17$809.57$919.99$932.99

Money IconExtra 8% OFF, hurry limited time offer.
Free Ground Shipping*
Usually Ships on or Before Wed 03/20/24
Usually Ships on or Before Wed 03/20/24
Usually Ships on or Before Wed 03/20/24
Usually Ships on or Before Wed 03/20/24
Usually Ships on or Before Wed 03/20/24
Clear
OR

-

  • Video arrow

    Video

    Shocker Air Equalizer for WD Hitch Videos

  • Install arrow

    Install

    The Shocker Hitch Air Equalizer is really easy to install.  Just bolt your existing equalizer / weight distribution head to the air equalizer and then insert into your pickup receiver.  Important, when installing, make sure there is no air in the airbag.  Take out the valve core so the air is totally removed. Then hook up your load bars / weight distribution bars, attach to tow vehicle, then air up air equalizer airbag until forward washers free up (washers closest to the truck).

    Download Installation Guide:  Shocker Air Equalizer Instructions – Setup Guide

    How to Install Air Equalizer Hitch Video


    Step 1: Attach air equalizer and XR base mount to your pickup truck.

    Step 1: Attach Air Equalizer & XR Base Frame to Pickup Truck Receiver Hitch
    Step 1: Attach Air Equalizer & XR Base Frame to Pickup Truck Receiver Hitch

    Step 2: Bolt your existing weight-distribution head to the air equalizer

    Bolt equalizer head to air equalizer
    Bolt equalizer head to air equalizer

    Step 3: Hook up your weight distribution as you did prior to installing air equalizer.

    Hook up your weight-distribution bars as you did before
    Hook up your weight-distribution bars as you did before

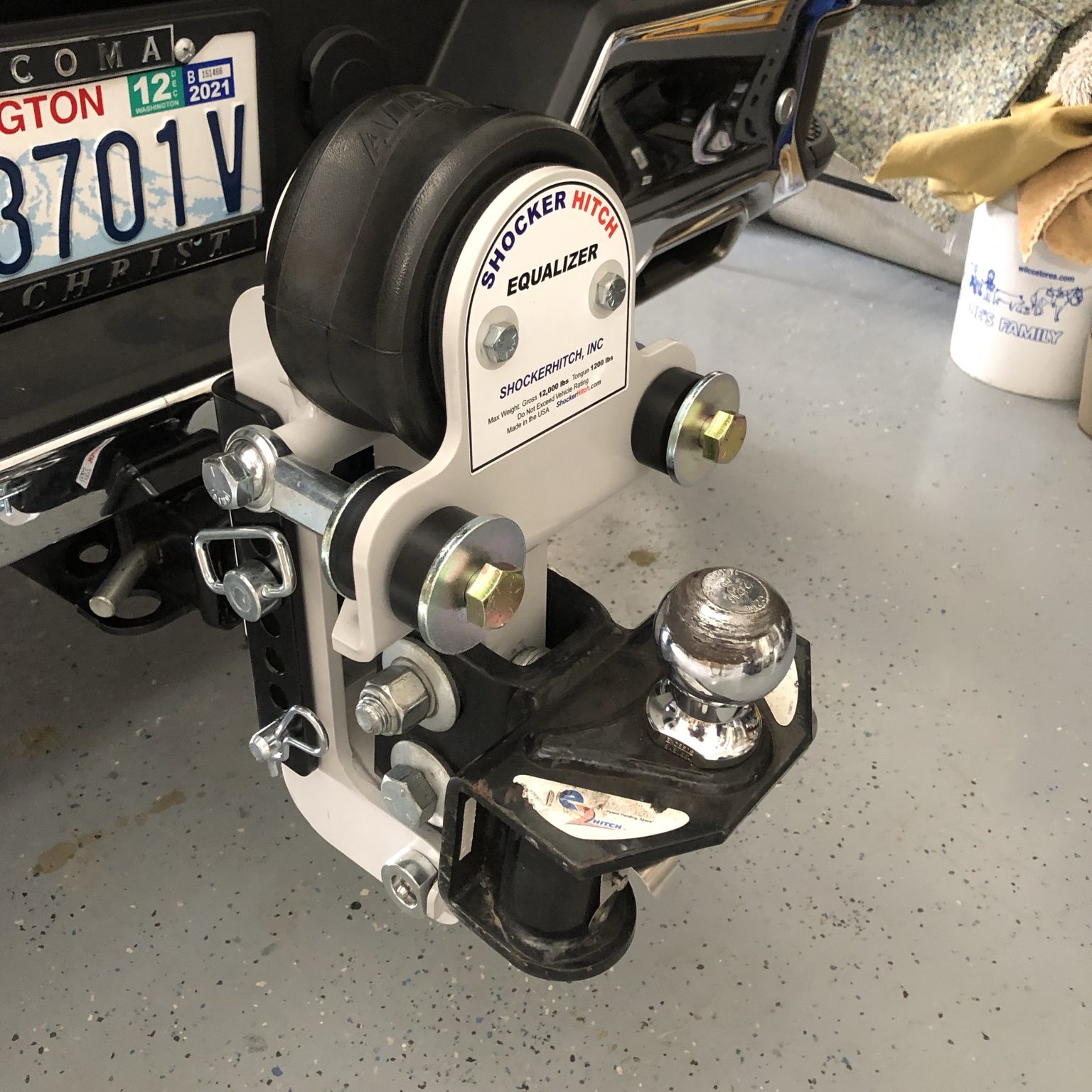

    Just Bolt Your Equalizer Head to the Shocker Air Equalizer
    Just Bolt Your Equalizer Weight Distribution Head to the Shocker Air Equalizer

    Optional Shocker Friction Sway Bar Kit Install Video

    Installation Issues

    We want you to have the best possible towing experience with your product and proper installation is important. If you need help, we are here for you. Just give us a call at 701-707-2666 or use our contact us form. You can also look up the items product page on our website and view the installation tab. Most products on our website have a set-up guide and installation video.

    We’re here to help. Contact Us

  • FAQ arrow

    FAQ

    Will it work on my equalizer, weight-distribution or load leveling hitch?  Yes on most brands. Your weight-distribution head bolts to our air equalizer. Measure the head bolt pattern (not the shank). Our air equalizer fits 2-1/2″ center to center or 3-3/4″ center to center bolt patterns. Fits & bolts to most major brands of weight-distribution hitch heads: Fastway E2, Equalizer, Reese, Husky, Pro Series, Torklift, Blue OX, Camco Eaz Lift & Curt round bar & Curt trutrack or trunnion head. (Does not work with Anderson chain style weight-distribution hitch)

    How easy it is to install?  Plan about 20-30 minutes. Check out the install video.

    How much air pressure does the air equalizer need?  You add air until the airbag is about 1/8″ off of the truck side, forward bump cushions. Here is a quick video showing how to set air pressure on air equalizer.

    Do I have to adjust or reset my current weight-distribution bars or my sway control arm(s)? Generally no. When you attach your existing weight distribution head to the air equalizer, Set it up at the same height on your pickup as you had the hard connection shank. The air equalizer has 2 pin holes in the shank, use the pin hole that is closest to your previous length on your solid connection shank. If this is done, you should be a the same height and length of your previous connection and not have to adjust the length of your weight-distribution or sway control bars.

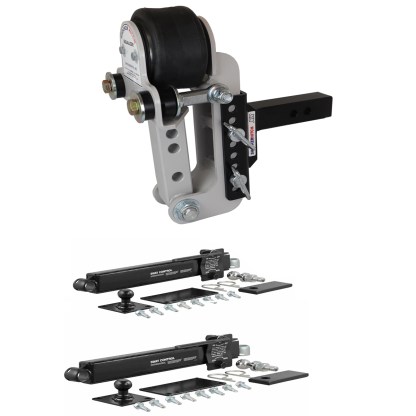

    Does Shocker Hitch sell weight-distribution or sway control bars?  Yes, we have them available with the Shocker Air Equalizer with WD Hitch, Air Equalizer with WD Hitch & Sway Bars or a Shocker Air Equalizer & Sway Bars Kit for your existing WD Hitch. This air equalizer is along made for existing weight distribution hitches on the market. Here is a list of the w-d hitches it works with. Fits & bolts to most major brands of weight-distribution hitch heads: Fastway E2, Equalizer, Reese, Husky, Pro Series, Torklift, Blue OX, Camco Eaz Lift & Curt round bar & Curt trutrack or trunnion head. (Does not work with Anderson chain style weight-distribution hitch) It does however work with friction sway control arms. You can check out our sway control & air equalizer combo kit here:

  • Warranty arrow

    Warranty

    This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Smooth Towing Guarantee. View our online Warranty Registration Form to register your Shocker Hitch.



  • Q & A (2) arrow

    Questions and answers of the customers

      Do you make an equalizer for an ice castle fish house. I think they call them pole tongues.
    1. 0 votes
      Q Do you make an equalizer for an ice castle fish house. I think they call them pole tongues.
      A

      We don't specifically make a hitch for an ice castle fish house. If you could send some images to service@shockerhitch.com, we would be happy to see if we have anything that works!

    2. Do you offer a 6” or 8” drop down ? I have your weight distribution hitch
    3. 0 votes
      Q Do you offer a 6” or 8” drop down ? I have your weight distribution hitch
      A The air equalizer does only have a 2" drop. We do have a ball mount attachment that does come in a 4-1/2"-8-1/2" drop -https://shockerhitch-vip.md-staging.com/product/drop-ball-mount-attachment/ which you can use in the base you received with the air equalizer.
