Product Description
- Sway Control Cushion Hitch Towing Kit: Includes Cushion Hitch, Combo Ball with Sway Bar Tab Mounts and 1 or 2 Friction Sway Arm Bar Kits.
- Dual Cushion Design: Cushions road shock, bumps and bangs from towing & reduces trailer sway for a smooth, safe, and straight towing experience.
- Great for Reducing Trailer Sway: Cushion hitch absorbs road shock and smooths out the ride and the friction sway bar helps prevent trailer sway. Use 1 system for trailers under 10,000 lbs and 2 sway kits for trailers over 10,000 lbs. Adjustable Friction Bar: Can be adjusted to fine-tune your towing experience.
- Silver Combo Ball with Sway Bar Mount Tabs: 2″ and 2-5/16″ silver powder coated combo ball with sway tabs. Combo ball rating is 20,000 lbs GTW on 2-5/16″ Ball & 10,000 lbs GTW on 2″ Ball.

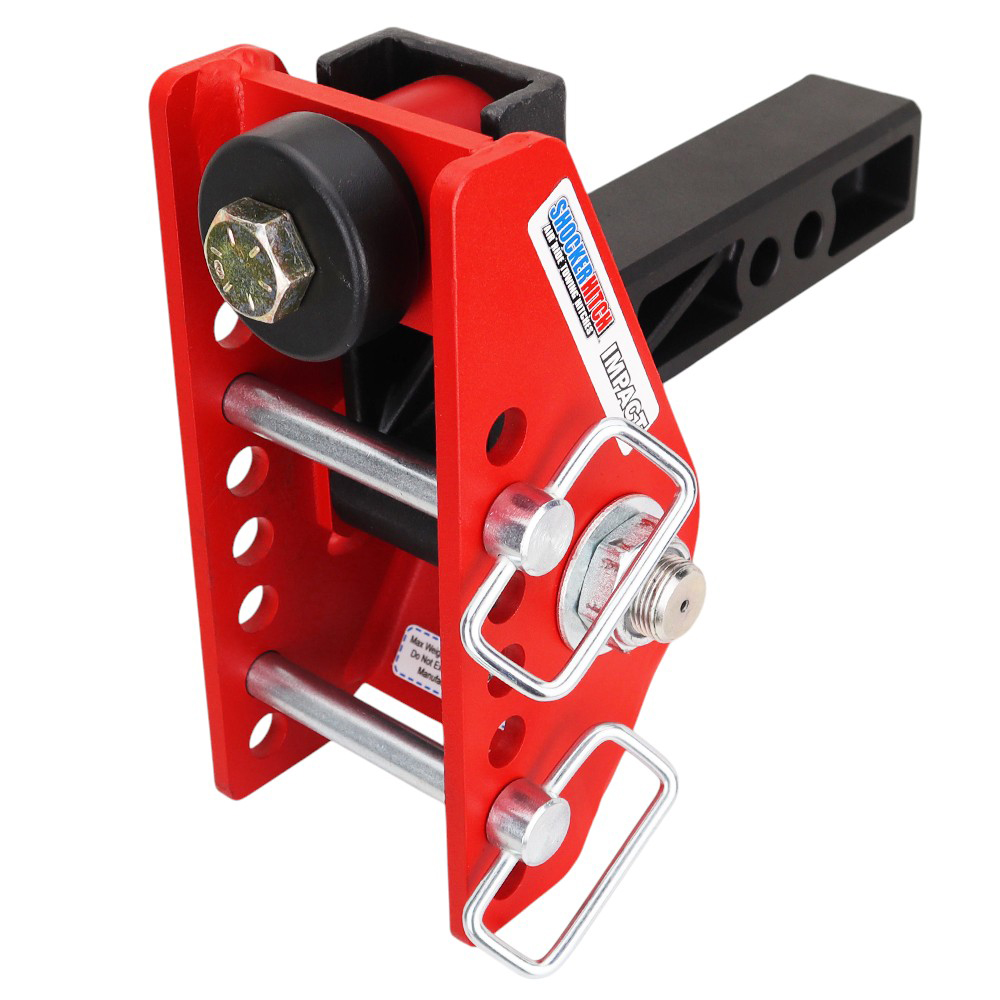

- Flip Around Design: Entire hitch frame can be an be flipped around for more drop or rise (4″ of rise to 4″ of drop). Allows for 7″ of Adjustment – 4″ of rise to 4″ of drop.
- 2 Hitch Pins for Length Adjustment: 2 hitch pin holes allow adjustment on the shank length and there is plenty of room on the receiver shank to accommodate hitch mounted towing mud flaps or shocker bumper tow flaps.
- Safety Red Powder Coat Finish: Impact Resistant Premium Powder-Coat Finish on Base Frame.
- Great All Around Hitch: Dual bump cushion design for all types of trailer towing from utility, boat & ice house trailers, camper, and enclosed trailer towing.
- 12,000 lbs GTW: 12,000 lbs towing capacity and a 1,200 lbs tongue weight. Works great on pickup trucks, vans, suvs, cuvs and minivans for pulling campers & other trailers.

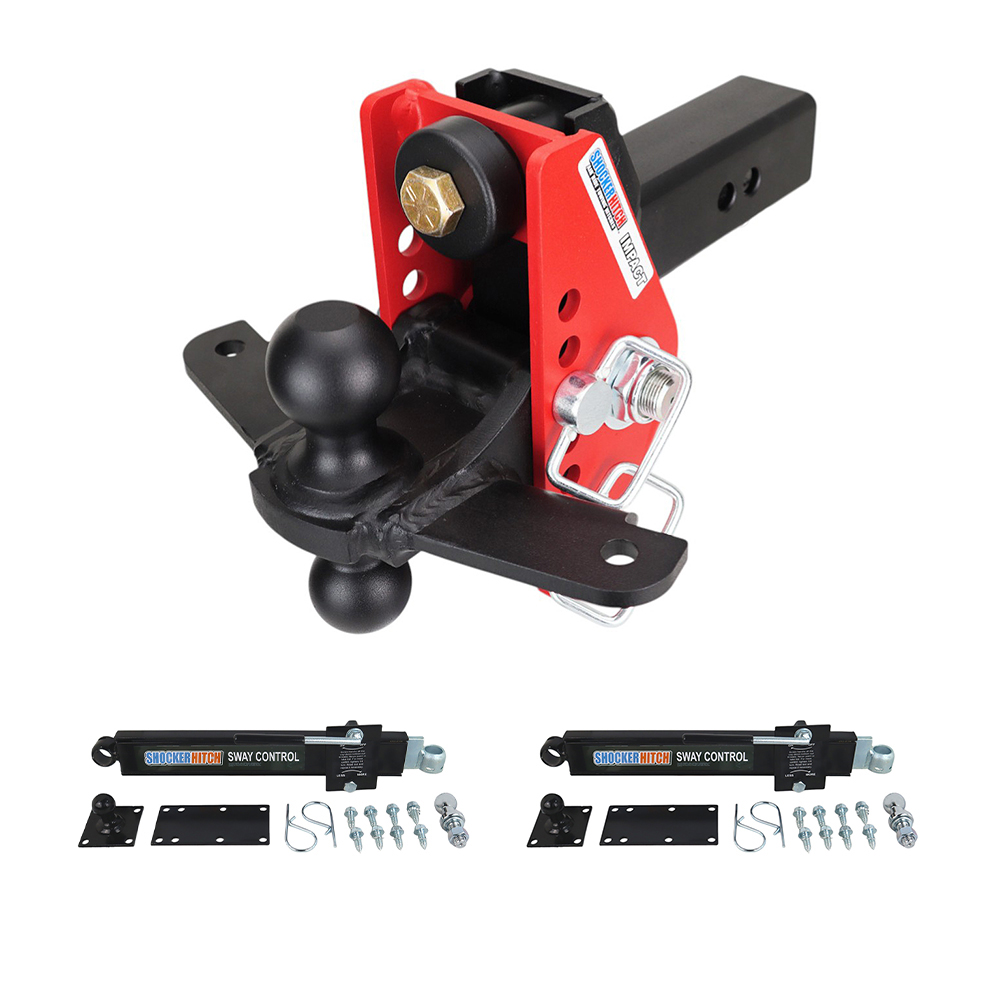

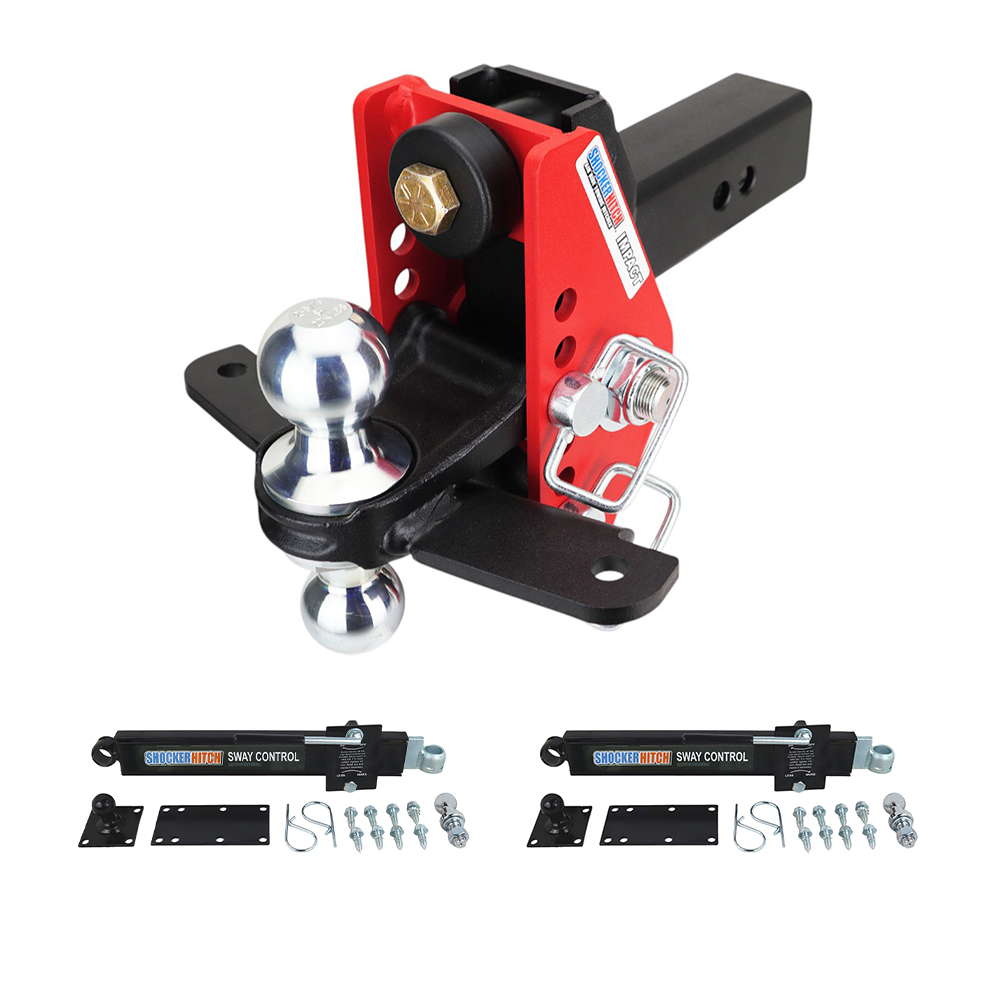

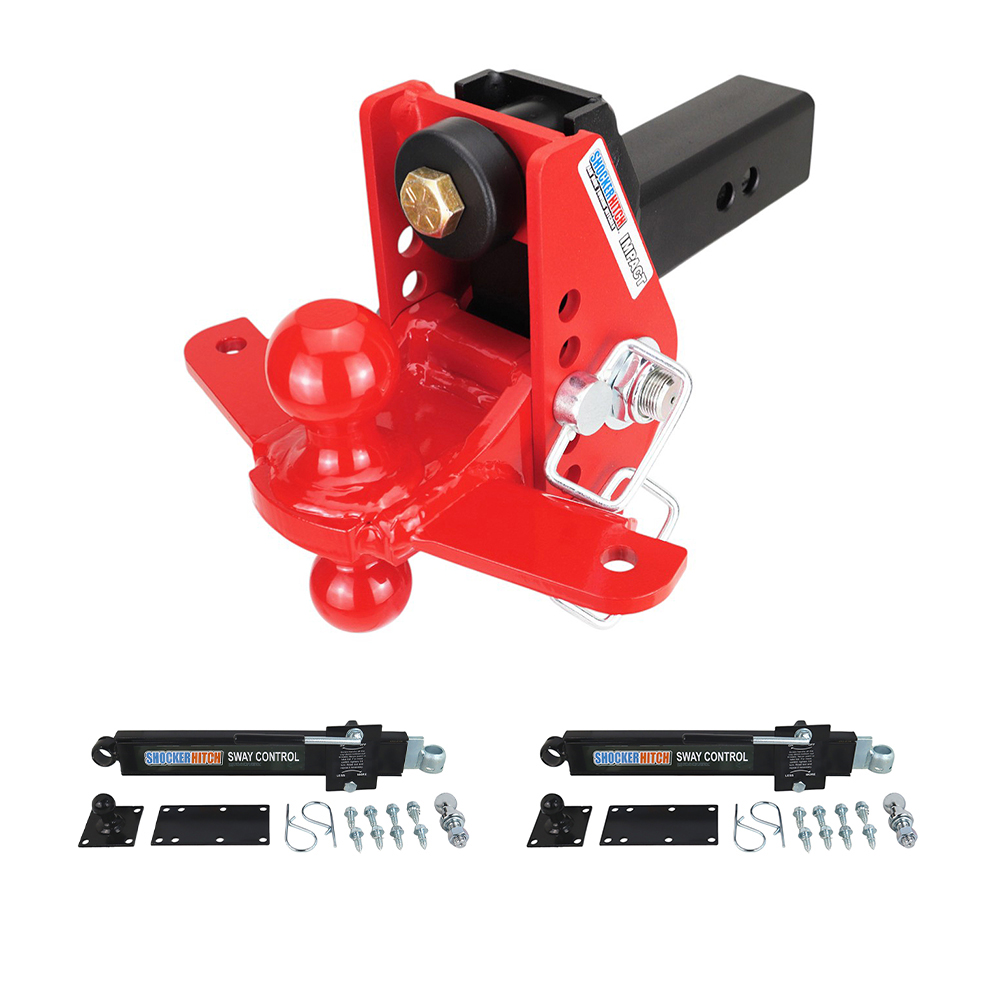

- Sway Towing System Includes: Complete adjustable Shocker impact cushion hitch, dual combo ball mount with 2″ & 2-5/16″ hitch balls with 2 sway bar mount tabs, 2 d-handle ball mount attachment pins with clips & one or tow friction sway control arm kits. Choose between a single or dual sway control system.
- 3 Hitch Sizes Available: Choose for a 2″, 2-1/2″ or 3″ receiver hitch.
- 10+ Ball Mount Options (Sold Separately): Huge selection of ball mount attachments available from combo ball, drop, raised, drawbar, clevis pin, sway tab options, pintle hook, pintle & ball attachments and more.
- A single sway control arm kit comes with the sway control friction arm assembly, 1 1-1/4″ trailer mounted mini ball, 1 1-1/4″ hitch mounted ball with a lock washer and nut for your sway control ball mount tab along with 4 metal lag screws and 2 retaining clips. This is great for travel camping trailers, heavy-duty trailers, race trailers, and toy haulers.
- Safety Notice: Weight rating is limited by the lowest rated component. Manufactured by Shocker Hitch® USA in Jamestown, ND.
- What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″ or 3″ receiver tube? Measure inside to inside. Check out our guide on How to measure receiver your hitch tube size.
- How Much Drop or Rise Do I Need? Check out our guide to find out how much drop or rise you need.
Fix trailer sway and cushion your trailer towing with the Shocker Impact combo cushion hitch with sway control towing kit. Reduce and prevent trailer sway and cushion the road shock with the Shocker Hitch Impact Cushion Hitch Sway Control Towing Starter kit. Designed specifically to reduce trailer sway when towing this kit includes Shocker unique combo ball mount with welded sway tabs. The perfect sway control for a bumper pull trailer, camper trailer, car trailer, cargo, utility or equipment trailer under 12,000 lbs. The Shocker cushioned hitch combo ball has mounting tabs for the adjustable friction sway control arm bars which include everything you need; the sway arm kit with mini hitch ball. The unique design of the impact dual cushion hitch allow you to flip the entire hitch around for more drop or rise. Shocker Impact sway control cushion hitch with combo ball mount is designed to cushion the towing experience. The dual bump cushion design is rated up to 12,000 lbs. Featuring a combo multi-ball mount with both a 2″ hitch ball and a 2-5/16″ hitch ball. It has 7″ of height adjustment range from 4″ of rise to 4″ of drop. 12,000 lbs tow rating capacity and 1,200 lbs tongue weight. Shocker Impact cushioned hitch ball mount provides versatility and a way smoother towing experience than a solid ball mount. The Impact ball mount has built-in adjustability maximum versatility with 7 adjustment holes for your towing needs for pulling campers to enclosed trailers. This trailer hitch with stabilizer bars always comes in handy.
Note: This kit is offered with 1 or 2 sway control kits. It is suggested to get 1 kit if towing under 10,000 lbs and 2 kits if towing over 10,000 lbs.

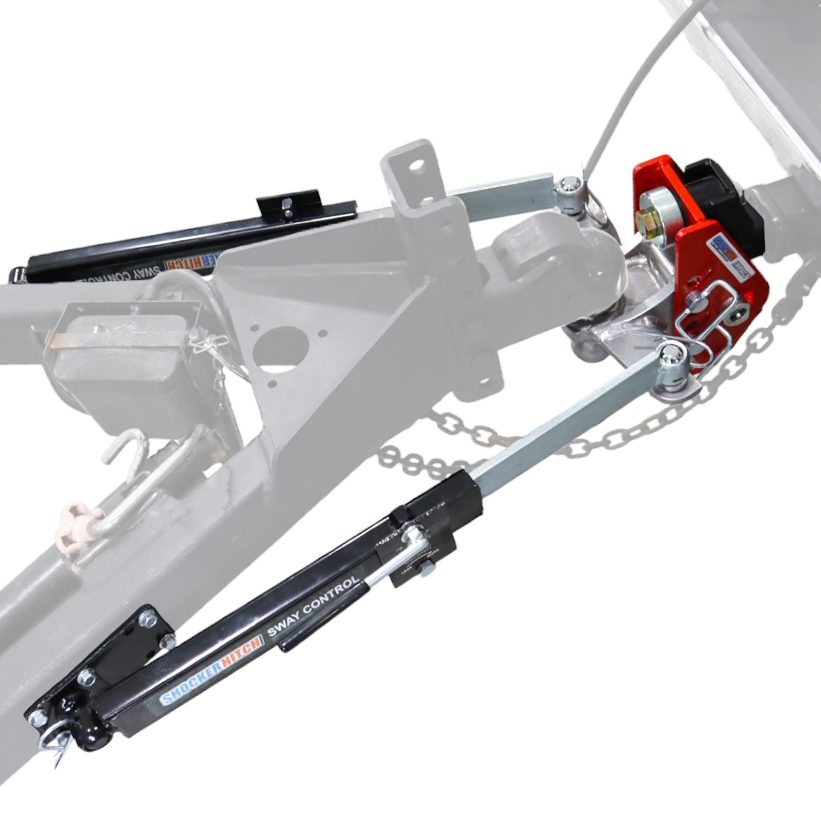

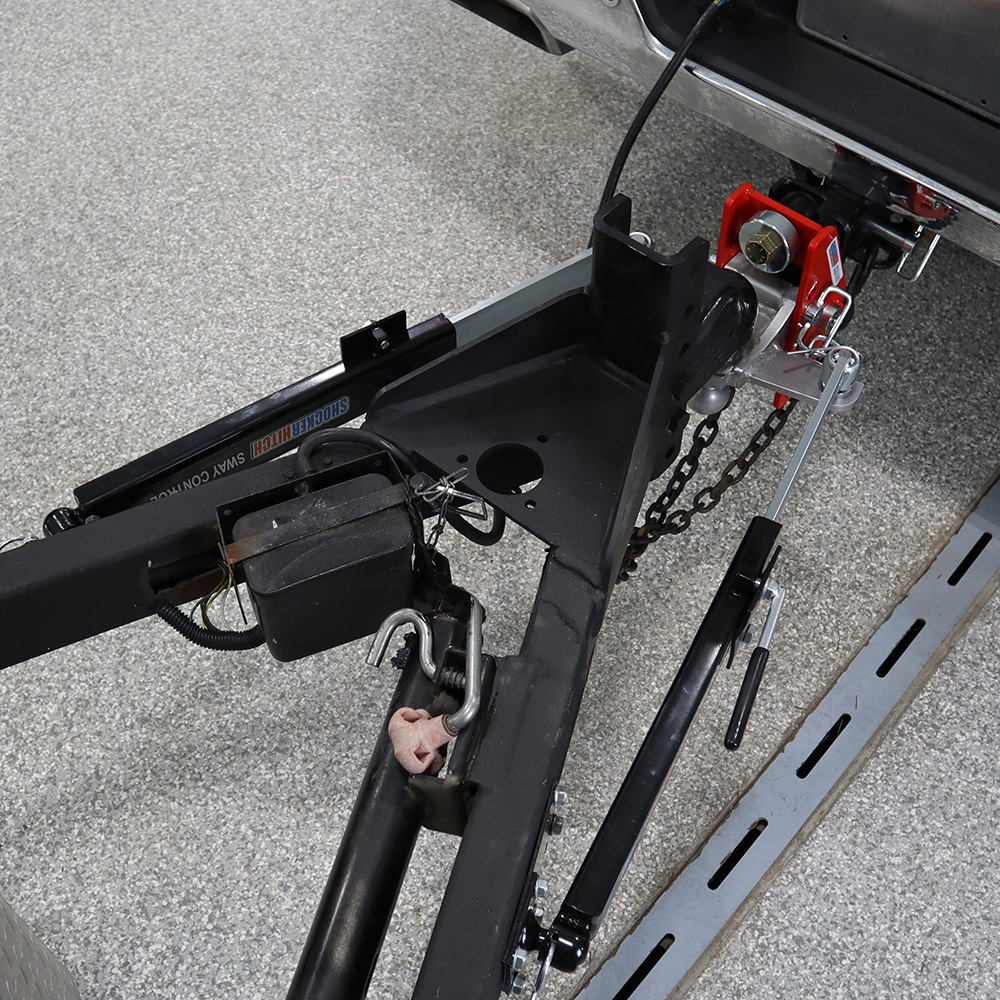

When towing a trailer, you may experience trailer sway from wind, passing vehicles, and rough uneven road surfaces. This sway control arm kit system is made to prevent the trailer from swaying. We offer a sway control arm bar system kit that connects from the Shocker sway control ball mount with built-in sway bar mount tabs on the hitch, to the side trailer a-frame. This sway control system is used to stiffen the connection between the truck and trailer, keeping it straight and in line with the towing vehicle.
You will want to use one (1) friction sway control arm kit when towing up to 10,000 pounds and/or 24′ trailers & when towing over 10,000 pounds and/or trailers longer than 24′, use two (2) friction sway control arm kits. A single sway control arm kit comes with the sway control friction arm assembly, 1 1-1/4″ trailer mounted mini ball, 1 1-1/4″ hitch mounted ball with lock washer and nut for your sway control ball mount tab along with 4 metal lag screws and 2 retaining clips. This is great for travel camping trailers, heavy duty trailers, race trailers and toy haulers.
This Shocker Impact cushioned sway bar combo ball mount attaches by sliding into a standard receiver tube. Use this adjustable ball mount however you need to for tons of versatility. Works great on motorhomes, rv’s, pickup trucks, vans, suvs, cuvs and minivans. Plus the shank has 2 holes for the pin for length adjustability as well as allowing it to work with hitch-mounted mud flaps. Sway Bar combo ball mounts come with impact resistant silver powder coat finish. Made by Shocker Hitch® USA
California Residents: Prop 65 Warning
Shocker Sway Control Towing Starter Kit Features
