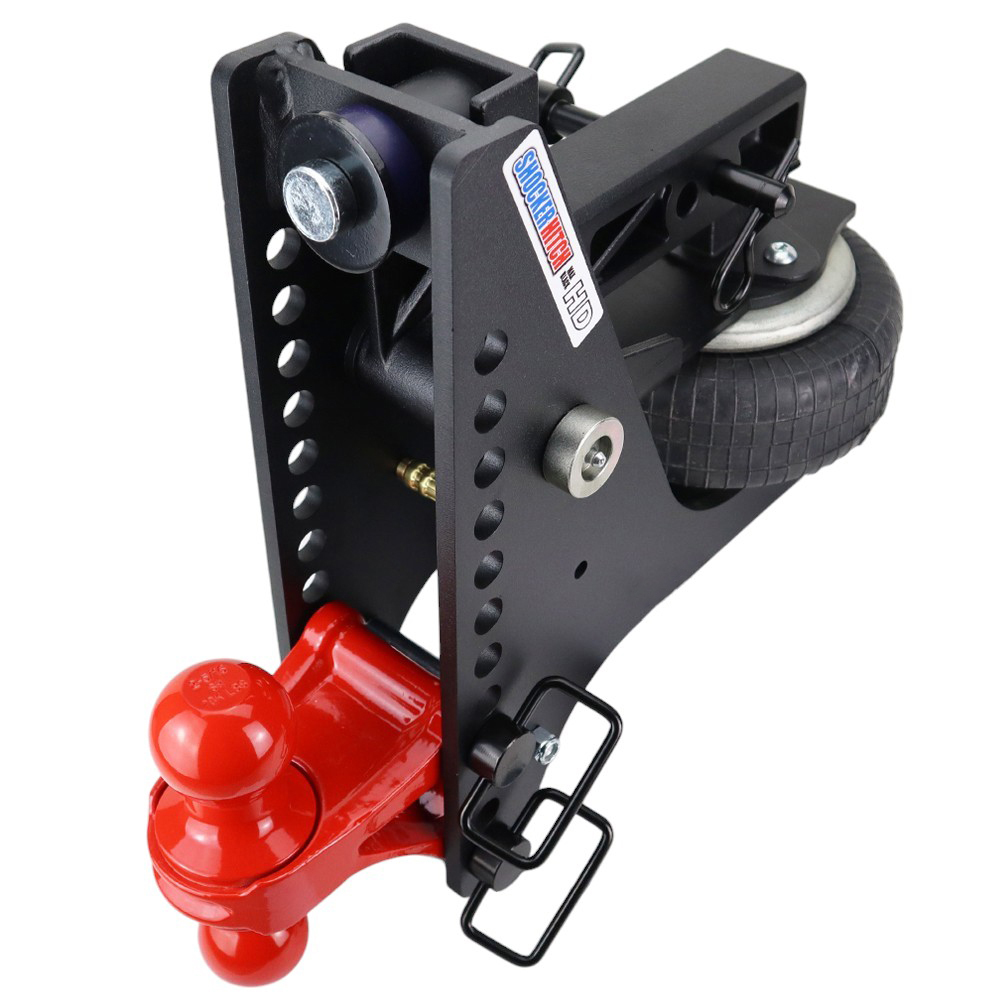

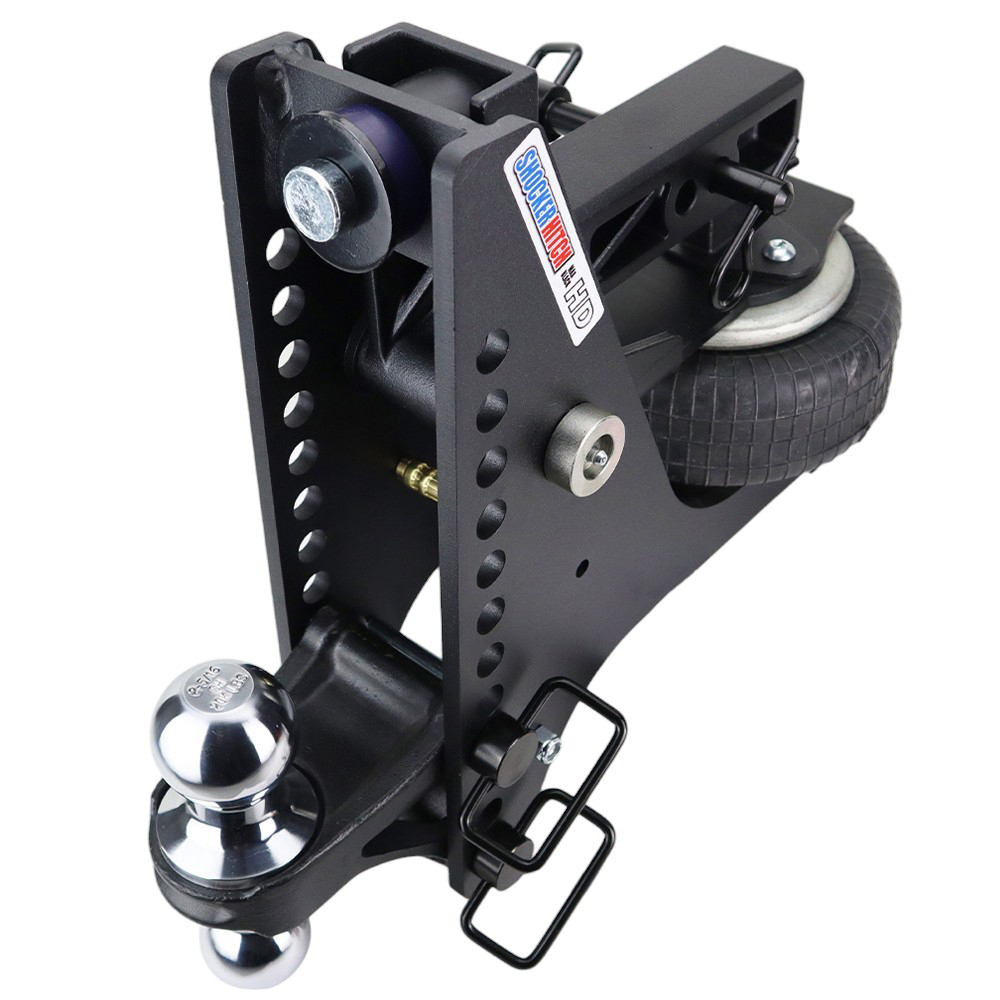

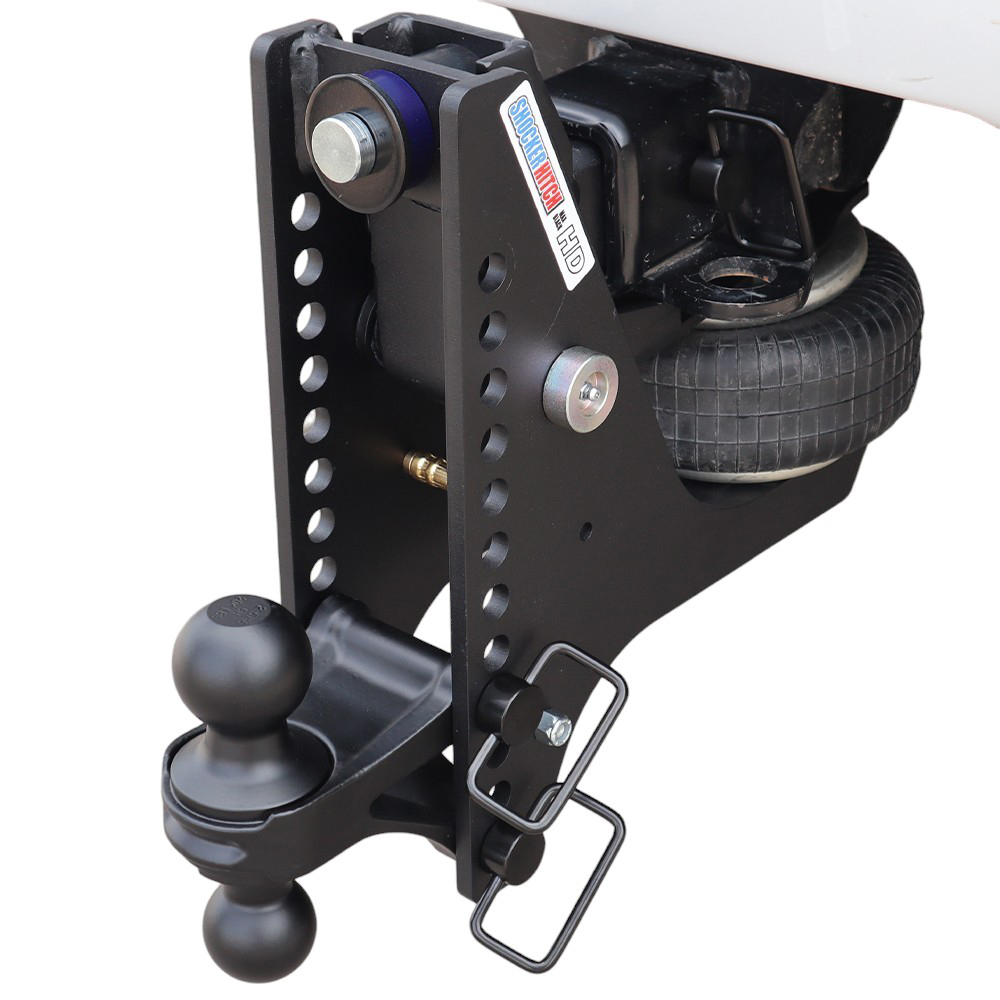

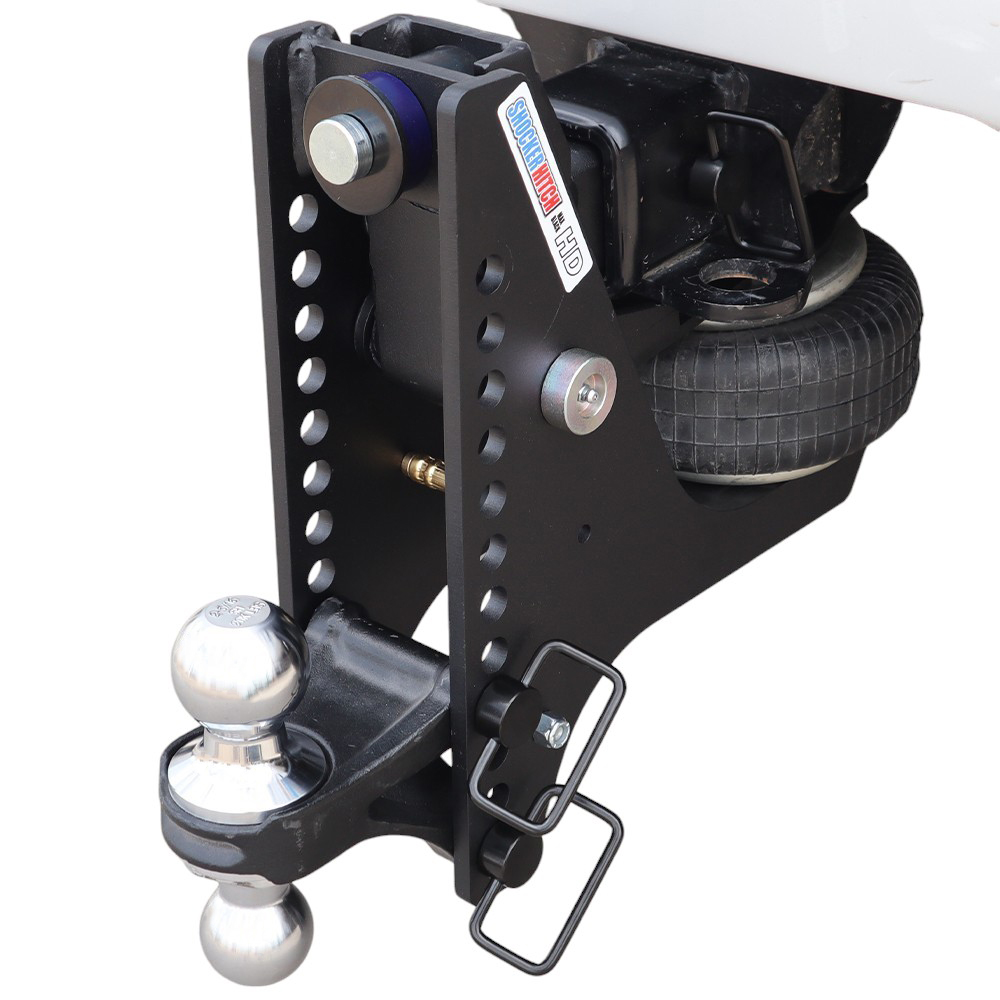

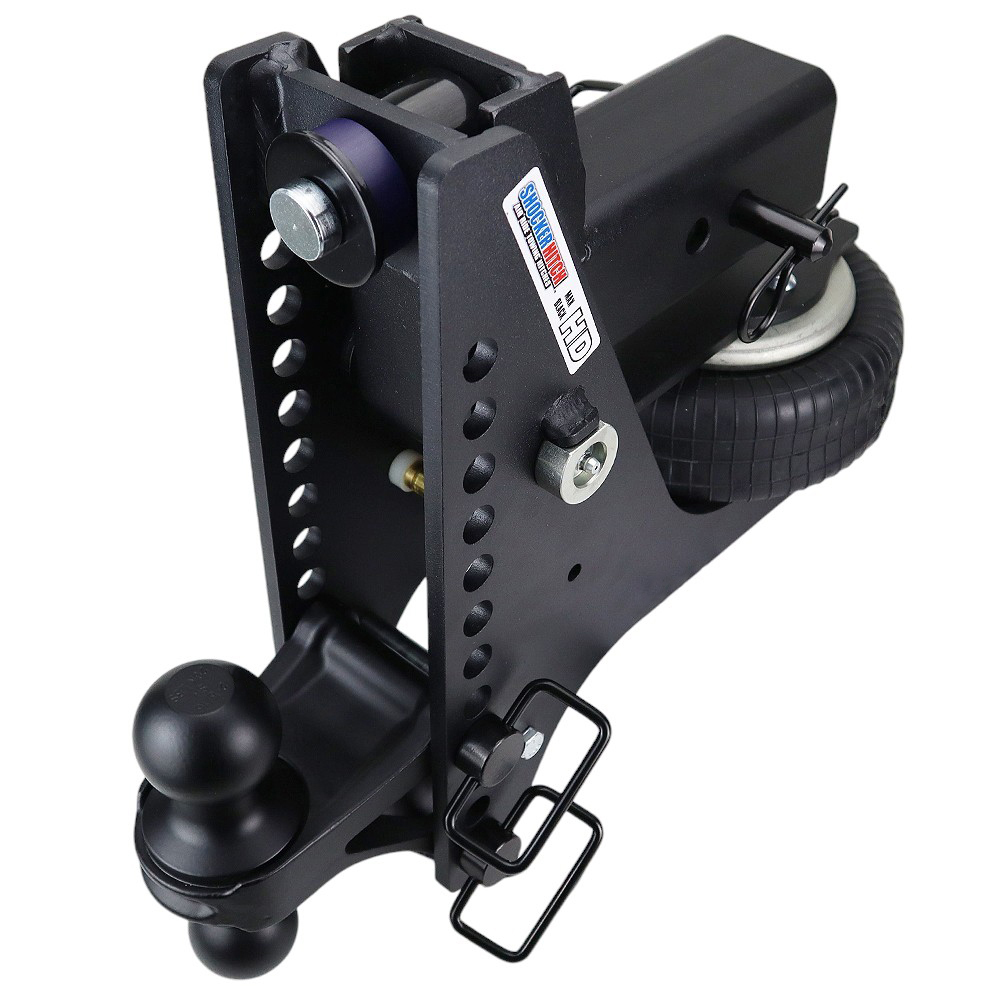

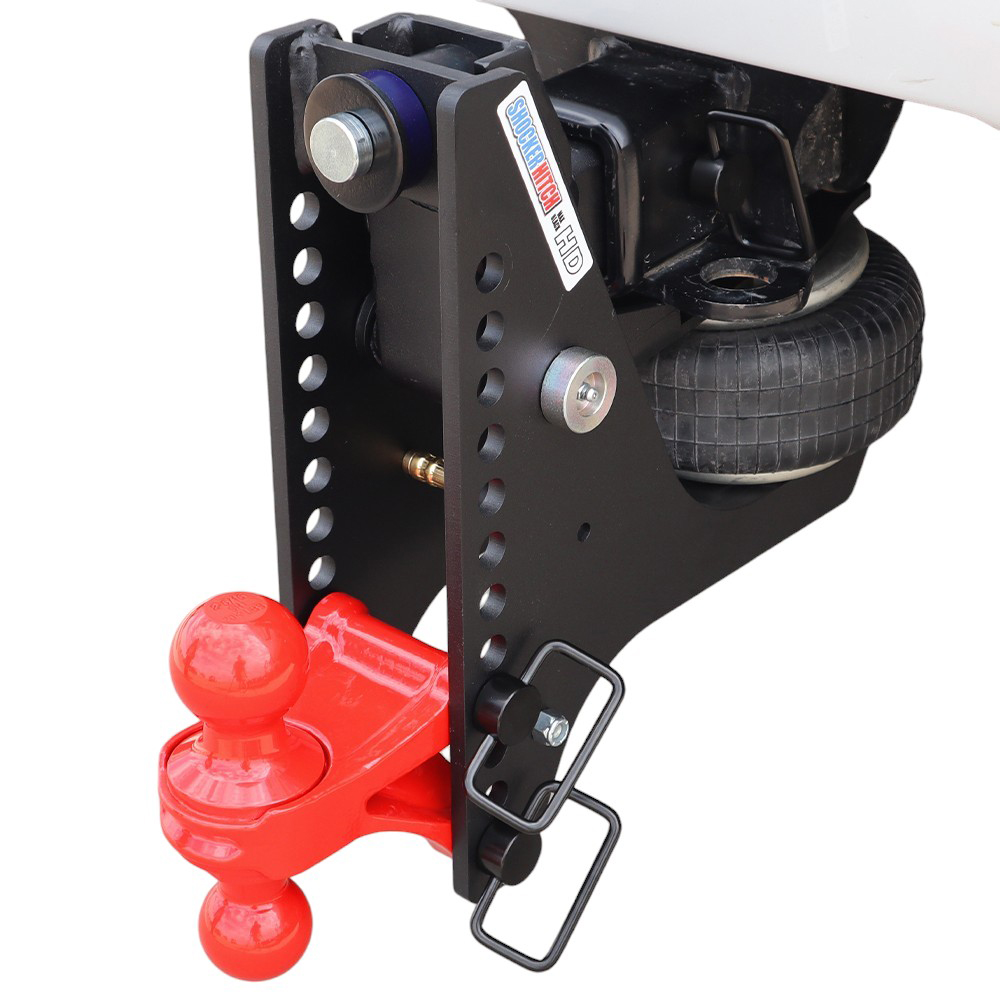

Shocker HD Max Black Super Drop Air Hitch with Combo Ball

Rated 0 out of 5

$779.99$849.99$819.99$889.99

Free Ground Shipping*
Usually Ships on or Before Thu 12/05/24
Usually Ships on or Before Thu 12/05/24
Usually Ships on or Before Thu 12/05/24
Usually Ships on or Before Thu 12/05/24
Usually Ships on or Before Thu 12/05/24
Usually Ships on or Before Thu 12/05/24
Usually Ships on or Before Thu 12/05/24
Usually Ships on or Before Thu 12/05/24
Usually Ships on or Before Thu 12/05/24
Clear
OR

-

  • Videos arrow

    Videos

    Shocker HD Max Black Super Drop Air Hitch Videos

  • Drop/Rise Guide arrow

    Drop/Rise Guide

    • HD Super Drop Air Hitch Mount Drop & Rise + Tow Rating Guide
      – Combo Ball: 0″ Rise to 8.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Drop Ball: 4.5″ to 12.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Raised Ball: 2″ Rise to 6″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      Channel Pintle Hook: 3″ Drop to 11″ Drop | 10-Ton 20,000 lbs.
       Pintle Hook: 2.5″ Rise to 10.5″ Drop | 10-Ton 20,000 lbs.
      Channel Pintle & Ball: 3″ Drop to 11″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Pintle & Ball: 2.5″ Rise to 10.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Drawbar: 0″ Rise to 8.5″ Drop | 20,000 lbs.
      – Clevis Mount: 3.5″ Drop to 11.5″ Drop | 20,000 lbs.
      – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above.

    Safety Notice: Towing capacity is limited by the lowest rated component.

    Check out our guide to find out how much drop or rise you need.

  • Install arrow

    Install

    Shocker HD Air Bumper Hitch Installation Instructions

    The Shocker HD Air Receiver Hitch ball mount is easy to install.  It comes complete with easy-to-understand instructions along with everything you need.  You can download the installation instructions or view the video below and learn How much PSI for my Shocker HD Air Bumper Hitch?

    Shocker HD Air Hitch Installation: First you must let all the air out of the air bag. Do this by depressing the air tank valve located on the left side of the frame and pushing down on paddle above the air spring bag. Once all the air has been let out of the air ride system, you can install the unit into the receiver tube. Next, install the hitch pin.

    To Set Air: Hook up a trailer using a properly selected ball mount attachment and height adjustment in order to a level trailer when loaded. Next, inflate the air ride system. As air pressure increases, the unit will rotate lifting the hitch up. Add air pressure until the top of the hitch frame touches the (tailgate side) top bump cushion. Add enough air pressure to lightly compress top bump cushion or until top (tailgate side) bump cushion is compressed is approximately 1/8″.  If the weight of your trailer changes or there is a huge temperature, you may need to add or reduce air pressure.

    Shocker HD Air Receiver Hitch Install Video

    Additional Set Up Notes:

    • When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
    • Spacer block included in the 2″ & 2-1/2″ hitches and may be required (see spacer block install in instructions below)
    • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
    • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY & Set at the Factory. Safety Notice: Towing capacity is limited by lowest rated component.

    Maximum Air Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

    Shocker HD Air Receiver Hitch Install Instructions

    Air Pressure Setting for the Shocker HD Air Receiver Hitch

    Installation Issues

    We want you to have the best possible towing experience with your product and proper installation is important. If you need help, we are here for you. Just give us a call at 701-707-2666 or use our contact us form. You can also look up the items product page on our website and view the installation tab. Most products on our website have a set-up guide and installation video.

    Will the Shocker HD Air Bumper Hitch work with Equalizer or Weight-Distribution?  If you have an equalizer or weight distribution hitch then it will not. However, check out our Shocker Air Equalizer for weight distribution hitches. If you are just using friction sway bars that hook to a mini ball (such as the shocker sway control arm bar kit), then yes, if you also have one of our sway bar tab mounts such as the combo sway control ball mount attachment.
