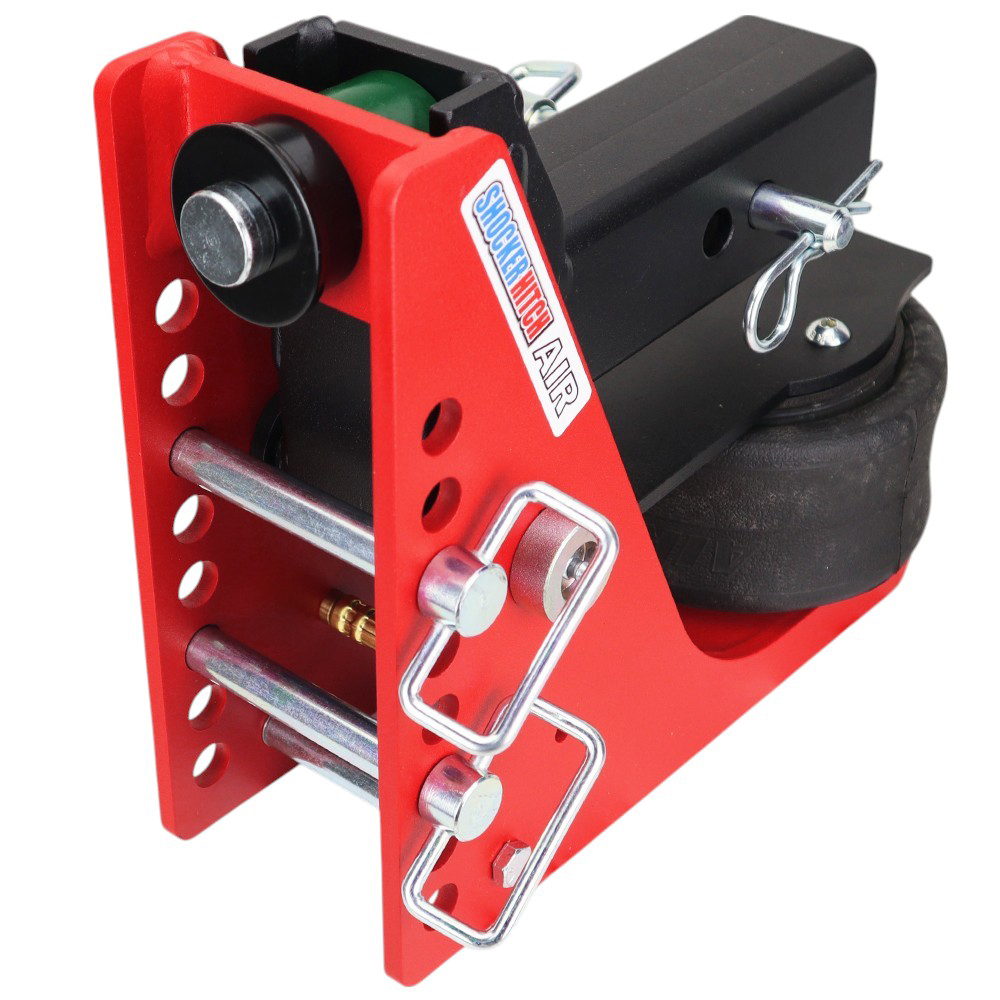

Shocker 12K Air Hitch Base Frame Assembly Complete – No Ball Mount

Rated 5.00 out of 5 based on 1 customer rating

$520.00$570.00$540.00$590.00

Free Ground Shipping*
Usually Ships on or Before Thu 10/10/24
Usually Ships on or Before Thu 10/10/24
Usually Ships on or Before Thu 10/10/24
Clear
OR

  • Video arrow

    Video

    Shocker HD Air Hitch Videos

    Shocker HD Installation

    Shocker HD vs Shocker Original Air Hitch

    Setting the Shocker HD Air Pressure

  • Install arrow

    Install

    Shocker HD Air Hitch Ball Mount Installation Instructions

    The Shocker HD Air Hitch ball mount is easy to install. The HD air bumper hitch comes complete with easy to understand instructions along with everything you need.  You can download the installation instructions or view the video below and learn How much PSI for my Shocker Air Bumper Hitch?

    Shocker Air Installation: First you must compress the air bag. Do this by depressing the air valve and pushing down on air bag. Once the bag has been compressed, you can install the unit into the receiver tube. Next install hitch pin.

    Shocker HD Air Hitch Install Video

    To Set Air: Hook up trailer using properly selected ball adaptor and height adjustment in order to a level trailer when loaded. Next, inflate the air bag. As air pressure increases, the unit will rotate lifting the hitch point. Install enough air to slightly compress top bushing or until bump stop clearance is approximately 1/8″.

    Shocker HD Air Hitch PSI Air Pressure Setting Guide Video

    Additional Set Up Notes:

    • When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
    • Spacer block included and may be required when using 2″ shank (see install manual below)
    • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
    • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY.

    Maximum Air Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

    Will the Shocker Air Bumper Hitch work with Equalizer or Weight-Distribution?  If you have an equalizer or weight distribution hitch then it will not. However, check out our Shocker Air Equalizer for weight distribution hitches. If you are just using friction sway bars that hook to a mini ball (such as the shocker sway control arm bar kit), then yes, if you also have one of our sway bar tab mounts such as the combo sway control ball mount attachment.

    Shocker HD Air Receiver Hitch Install Instructions

    Note: Always use a good hitch ball with the proper recommended tow weight.

  • Warranty arrow

    Warranty

    This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch ✅ 60 Day Money Back Smooth Towing Guarantee!. View our online Warranty Registration Form to register your Shocker Hitch.

    60-DAY MONEY BACK GUARANTEE

    We want you to be 100% satisfied. You’ve got 60 days to ensure your hitch fits your lifestyle.

    SMOOTHER TOWING

    We guarantee whatever you are towing, the ride on your pickup and trailer will be smoother with any of our air & cushion products period.
    Installation Help

    FREE SHIPPING* & FREE RETURNS

    If you are not satisfied, you can return it for free the first 60 days. See our free shipping* & free return policy.

    HOMETOWN CUSTOMER SERVICE

    We are here to help. We are happy, when you are happy.
    Made in the USA

    INSTALL HELP

    We’re glad to answer any questions you have. support is here 8am‐5pm, Mon‐Fri at 701-707-2666 or you can email anytime.

    MADE IN THE USA

    All of our products are custom made with good all American folks in Jamestown, ND USA
    The Shocker Hitch Guarantee applies to products purchased from ShockerHitch.com.
  • FAQ arrow

    FAQ

    Answers to Frequently Asked Questions

    How much air do I put in the Shocker Air Bumper Mount Receiver Hitch?
    With your trailer hooked up to the tow vehicle, and loads positioned for transport, air up shocker until main frame rotates and lightly compresses top bushing (about 1/8″ of squeeze or pinch in the bushing). See our quick How To Set PSI in Shocker Bumper Hitch Video.

    Will the Shocker Air Bumper Hitch work with Equalizer or Weight-Distribution?  If you are just use sway bars that hook to a mini ball, then yes, if you order the combo sway control ball mount attachment. If you have a equalizer or weight distribution hitch then it will not. However, check out our Air Equalizer for weight distribution hitches.  Note: If your pickup suspension can handle the weight of your trailer and doesn’t “squat” when you hook up your trailer to pickup, then you really don’t need a weight distribution hitch. A load leveling weight distribution hitch, distributes the weight between the pickup and trailer and is generally used if your pickup can’t handle the static trailer tongue weight load.

    How long will it hold air? This is a sealed system that will hold air for weeks or months. If you haul the same trailer with the same load weight, it should be good for quite some time.

    How long will the airbag last? Our airbags are an industrial bag and will last for years and years. They are similar to truck airbags but have been beefed up internally for our towing applications.

    How strong is the center pivot bolt?  The main pivot bolt with grease zerk, or center pivot bolt, used on the shocker air bumper hitch, is a custom made 1 inch diameter 1045 medium carbon steel bolt. Strategically heat treated to prevent wear and includes a machined grease passage for easy lubrication and maintenance. It should be noted that the yield strength of the 1″ pivot bolt exceeds the two 5/8″ bolts used to hold the typical ball coupler or receiver hitch.

    How do I know the Shocker Air receiver hitch will fit my truck?
    We have made sure that the receiver air shocker will fit into most Ford, Chevy, GMC Dodge, Toyota, Nissan & Honda Pickups, Vans & SUV’s (SUV’s were the receiver is under the bumper). There are some clearance issues with the Chevy Envoy, Ford Explorer, some imports and service body vehicles where the body extends below the receiver tube or the receiver tube is inside the bumper.  The Shocker Air receiver hitch is available in a 2″, 2 1/2″ & 3″ shank.

    How far below my pickup does the receiver air shocker hang? Five inches below bottom of receiver tube.

    How often do I grease it? The grease does not just lube the pivot; it also keeps water and dirt out. You cannot over grease it, once every few months should do it.

    Does the receiver air hitch work with sway bars?
    Yes, it works with the friction style sway control bar, however you want to order a ball mount with sway bar tabs. See our sway bar tab ball mount attachments.

    How does the Air hitch work? The Receiver air shocker is like a teeter totter. One end is an air bag, a pivot in the middle, and a ball at the other end. This gives a “pillow” effect at the ball end.

    Should I tighten up the top jam nut on the receiver shocker? No. The air shocker needs at least one half inch of play to work properly.

    How long do the bump cushions last? This depends on if the hitch is left on the truck year round or not. If they bump cushions become mushy, you should replace them. Typical life expectancy is 5-7 years.

    How much does an Shocker Air bag receiver hitch weigh? The Receiver Air Shocker weighs 50-55 pounds

  • Q & A arrow

    Questions and answers of the customers

    There are no questions yet. Be the first to ask a question about this product.
