Shocker 12K Max Black Air Bumper Hitch with Black Combo Ball
Shocker 12K Max Black Air Bumper Hitch with Black Combo Ball
Max Black Air Bumper Hitch with Combo Ball
Max Black Air Bumper Hitch with Combo Ball
Built-in Adjustable Air Ride System - 12K Max Black Air Bumper Air Hitch
Built-in Adjustable Air Ride System - 12K Max Black Air Bumper Air Hitch

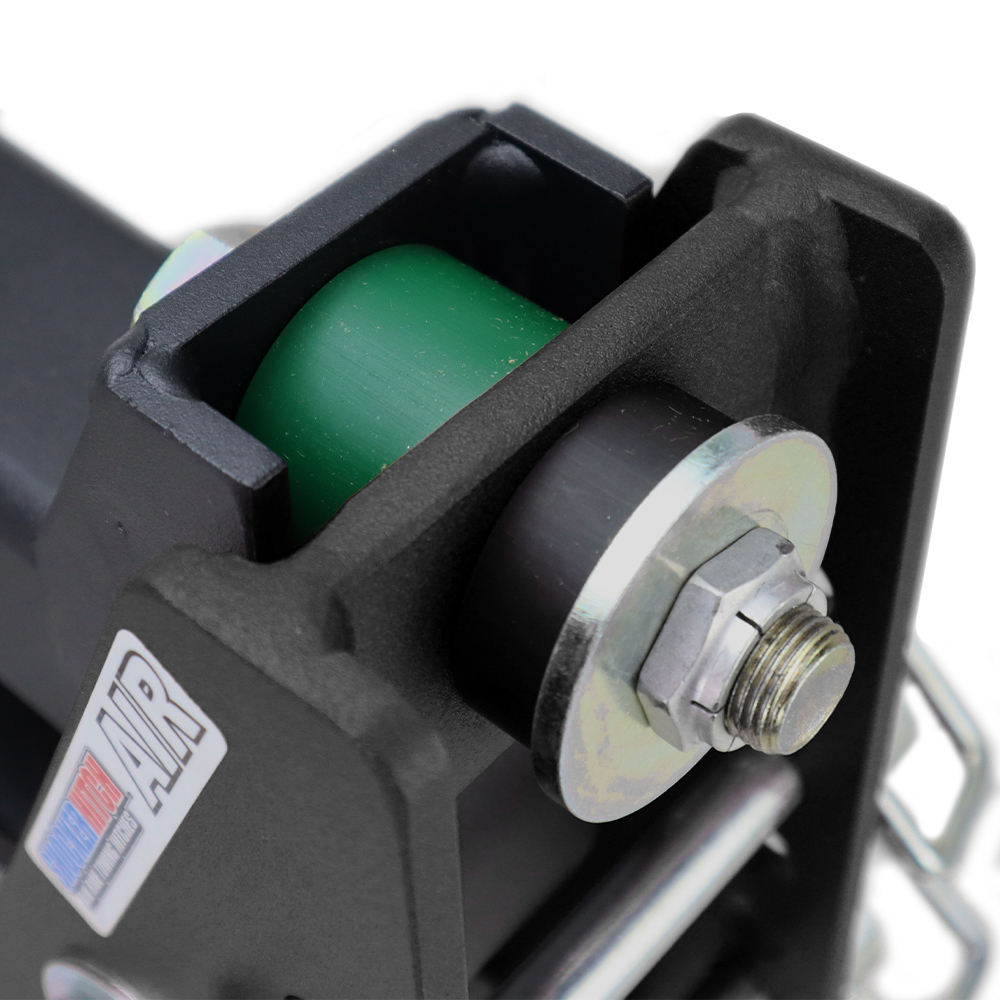

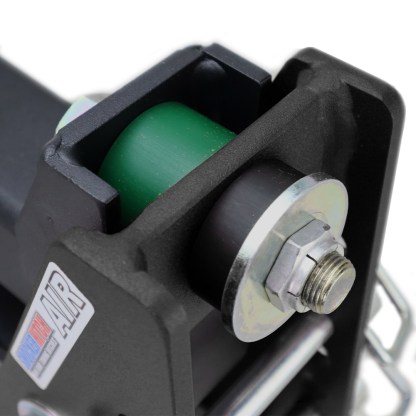

Dual Bump Cushions - 12K Max Black Air Bumper Air Hitch
Dual Bump Cushions - 12K Max Black Air Bumper Air Hitch
Shocker 12K Max Black Air Bumper Hitch with Pintle Hook & Ball Combo Mount
Shocker 12K Max Black Air Bumper Hitch with Pintle Hook & Ball Combo Mount
Shocker 12K Max Black Air Bumper Hitch with Silver Combo Ball Mount
Shocker 12K Max Black Air Bumper Hitch with Silver Combo Ball Mount
Shocker 12K Max Black Air Bumper Hitch with Pintle Hook Mount
Shocker 12K Max Black Air Bumper Hitch with Pintle Hook Mount

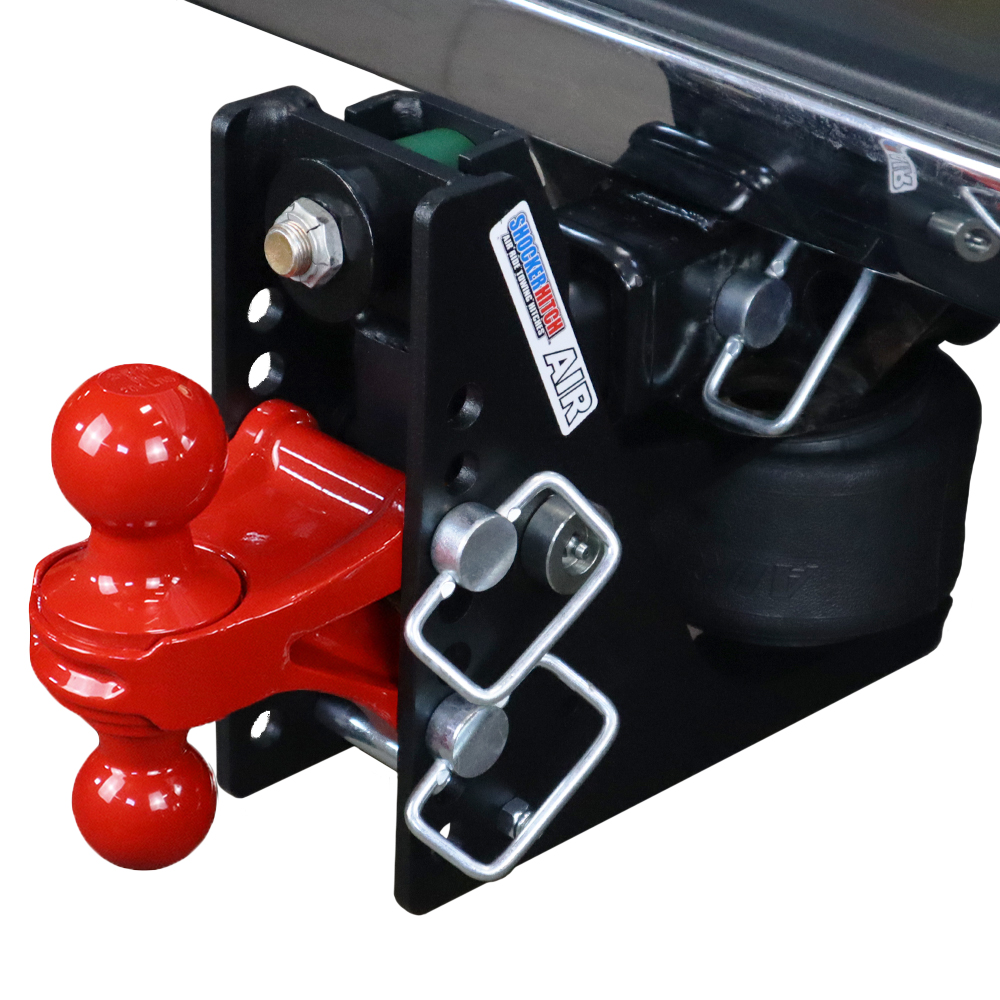

Shocker 12K Max Black Air Bumper Hitch with Red Combo Ball Mount Installed
Shocker 12K Max Black Air Bumper Hitch with Red Combo Ball Mount Installed
Shocker 12K Max Black Air Bumper Hitch with Drop Ball Mount
Shocker 12K Max Black Air Bumper Hitch with Drop Ball Mount
Shocker 12K Max Black Air Bumper Hitch with Drop Ball Mount with Sway Tabs
Shocker 12K Max Black Air Bumper Hitch with Drop Ball Mount with Sway Tabs
Shocker 12K Max Black Air Bumper Hitch with Raised Ball Mount with Sway Tabs
Shocker 12K Max Black Air Bumper Hitch with Raised Ball Mount with Sway Tabs
Shocker 12K Max Black Air Bumper Hitch with Raised Ball Mount
Shocker 12K Max Black Air Bumper Hitch with Raised Ball Mount

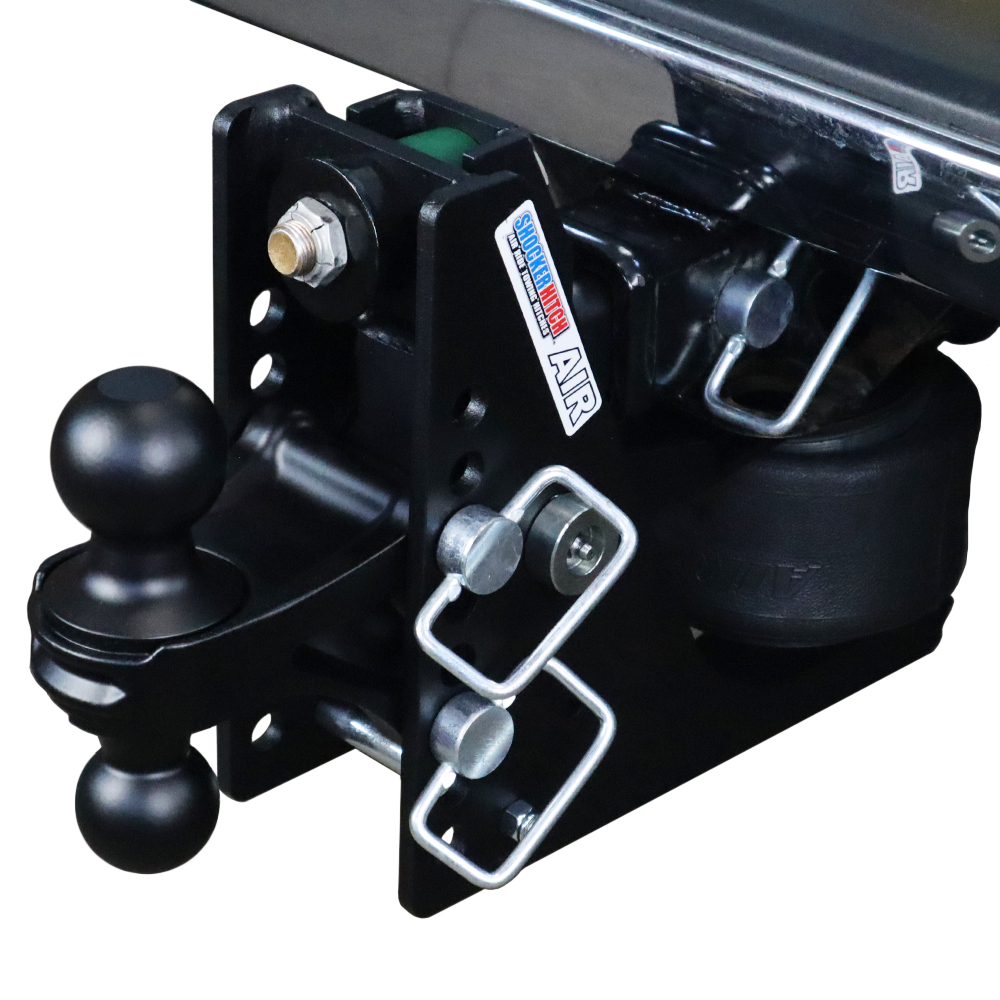

Shocker 12K Max Black Air Bumper Hitch with Black Combo Ball Mount with Sway Tabs
Shocker 12K Max Black Air Bumper Hitch with Black Combo Ball Mount with Sway Tabs

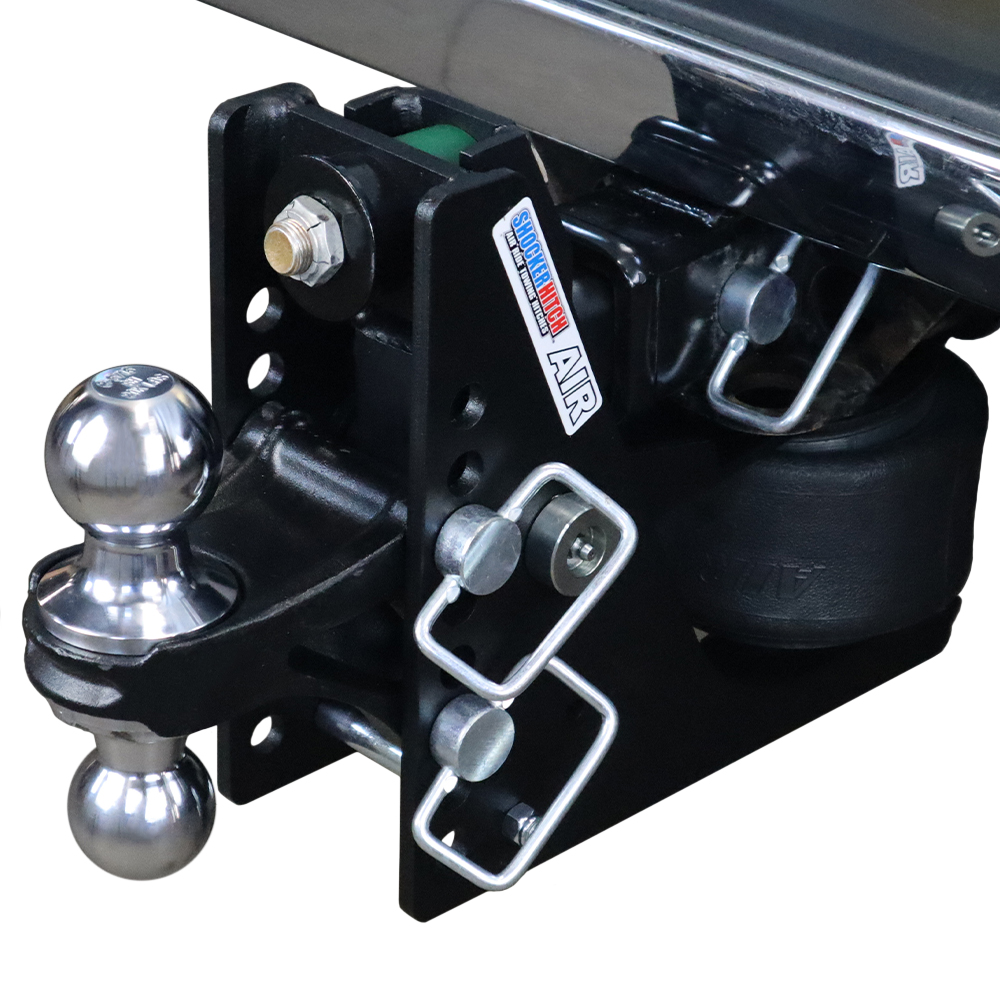

Shocker 12K Max Black Air Bumper Hitch with Silver Combo Ball Mount with Sway Tabs
Shocker 12K Max Black Air Bumper Hitch with Silver Combo Ball Mount with Sway Tabs
Shocker 12K Max Black Air Bumper Hitch with Cushioned Drawbar Mount
Shocker 12K Max Black Air Bumper Hitch with Cushioned Drawbar Mount
Shocker 12K Max Black Air Bumper Hitch with Clevis Pin Mount
Shocker 12K Max Black Air Bumper Hitch with Clevis Pin Mount
Shocker 12K Max Black Air Bumper Hitch with Drawbar Mount
Shocker 12K Max Black Air Bumper Hitch with Drawbar Mount
Shocker Max Black Drop Air Hitch Installed (Ball Cover Not Included)
Shocker Max Black Drop Air Hitch Installed (Ball Cover Not Included)
Built in Air Ride - Best Cushioning on the Planet
Built in Air Ride - Best Cushioning on the Planet
Shocker Max Black Air Hitch Installed on Chevy Silverado
Shocker Max Black Air Hitch Installed on Chevy Silverado
Shocker 12K Max Black Air Hitch with Raised Ball Mount Installed
Shocker 12K Max Black Air Hitch with Raised Ball Mount Installed
Shocker Max Black Air Hitch with Combo Ball Sway Bar Mount Attached
Shocker Max Black Air Hitch with Combo Ball Sway Bar Mount Attached

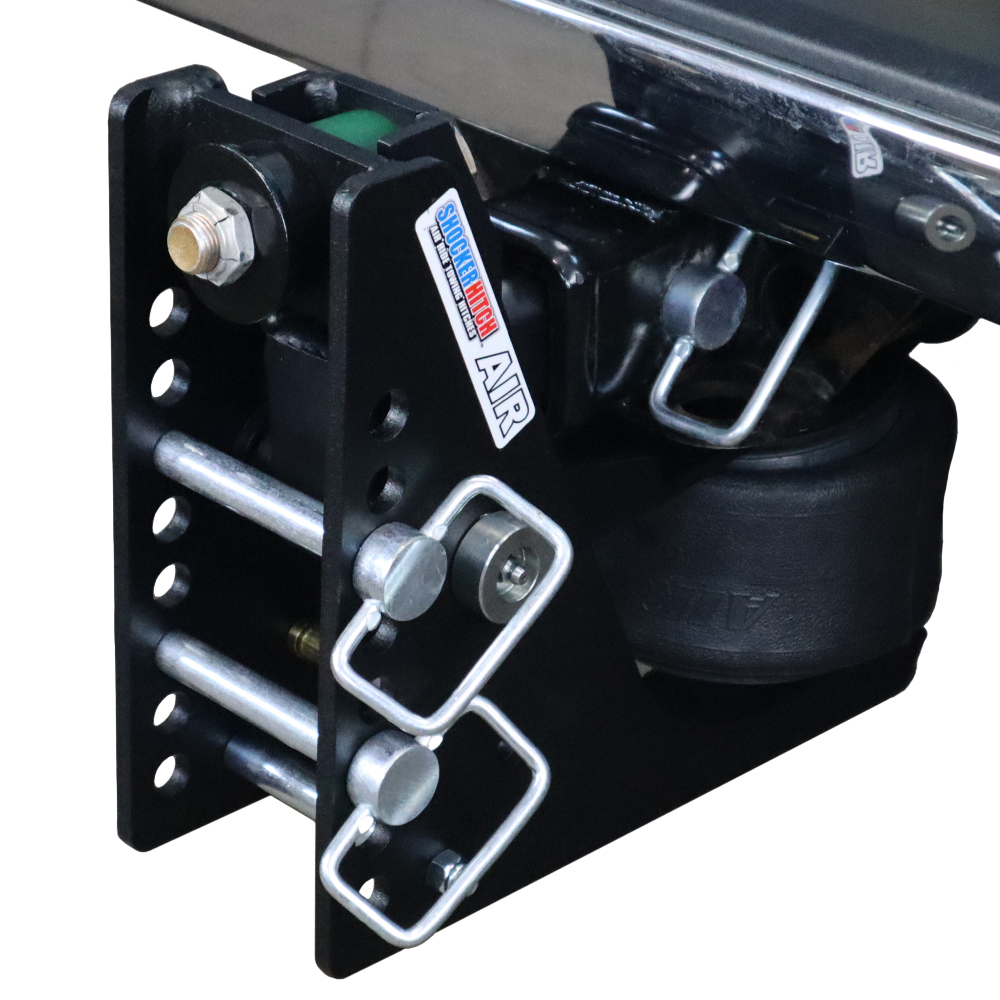

Shocker 12K Max Black Air Bumper Hitch Base Frame with Pins (No Mount)
Shocker 12K Max Black Air Bumper Hitch Base Frame with Pins (No Mount)

Shocker 12K Max Black Air Receiver Hitch (Build Your Own)

Rated 5.00 out of 5 based on 2 customer ratings
(2)

$520.00 – $739.99$540.00 – $779.99

Free Ground Shipping*
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Usually Ships on or Before Thu 01/02/25
Install Guide Install Video
Clear
OR

-

  • Video arrow

    Video

    Shocker 12K Max Black Air Receiver Hitch Videos

  • Drop/Rise Guide arrow

    Drop/Rise Guide

    • Air Bumper Hitch Mount Drop & Rise + Tow Rating Guide (8 Hole Frame) For Super Drop Air Hitch (12 Hole Frame: Add 4″ of Drop to Ranges Below)
      – Combo Ball: 0″ Rise to 4.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Drop Ball: 4.5″ to 8.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Raised Ball: 2″ Rise to 2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Bolt on Pintle Hook: 2.5″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
      – Channel Style Pintle Hook: 3″ to 7″ Drop | 10-Ton 20,000 lbs.
      – Bolt on Pintle & Ball: 2.5″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Channel Style Pintle & Ball: 3″ to 7″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Drawbar: 0″ Rise to 4.5″ Drop | 20,000 lbs.
      – Clevis Mount: 3.5″ Drop to 7.5″ Drop | 20,000 lbs.
      – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above.
    • Impact Cushion Hitch Mount Drop & Rise + Rating Guide:
      – Combo Ball: 4″ Rise to 4″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Drop Ball: 0″ Rise to 7.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Raised Ball: 5″ Rise to 3″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Bolt on Pintle Hook: 4″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
      – Channel Style Pintle Hook: 1″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
      – Bolt on Pintle & Ball: 4″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Channel Style Pintle & Ball: 1″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Drawbar: 4″ Rise to 4″ Drop | 20,000 lbs.
      – Clevis Mount: 1.5″ Rise to 5.5″ Drop | 20,000 lbs.
      – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above.
    • XR Series 8 Hole Hitch Mount Drop & Rise + Rating Guide: (Add 2″ if using 10-Hole Frame)
      – Combo Ball: 4″ Rise to 4″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Drop Ball: 0″ Rise to 7-1/2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Raised Ball: 5″ Rise to 3″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Bolt on Pintle Hook: 3.5″ Rise to 8.5″ Drop | 10-Ton 20,000 lbs.
      – Channel Style Pintle Hook: 1″ Rise to 7″ Drop | 10-Ton 20,000 lbs.
      – Bolt on Pintle & Ball: 3.5″ Rise to 8.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Channel Style Pintle & Ball: 1″ Rise to 7″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Drawbar: 4″ Rise to 4″ Drop | 20,000 lbs.
      – Clevis Mount: 1-1/2″ Rise to 6-1/2″ Drop | 20,000 lbs.
      – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above

    Safety Notice: Towing capacity is limited by the lowest rated component.

    Check out our guide to find out how much drop or rise you need.

  • Install arrow

    Install

    Shocker Air Bumper Hitch Installation Instructions

    The Shocker Air Bag Hitch ball mount is easy to install.  It comes complete with easy-to-understand instructions along with everything you need.  You can download the installation instructions or view the video below and learn How much PSI for my Shocker Air Bumper Hitch?

    Shocker Air Receiver Hitch Installation: First you must let all the air out of the air bag. Do this by depressing the air tank valve located on the left side of the frame and pushing down on paddle above the air spring bag. Once all the air has been let out of the air ride system, you can install the unit into the receiver tube. Next, install the hitch pin.

    To Set Air: Hook up a trailer using a properly selected ball mount attachment and height adjustment in order to a level trailer when loaded. Next, inflate the air ride system. As air pressure increases, the unit will rotate lifting the hitch up. Add air pressure until the top of the hitch frame touches the (tailgate side) top bump cushion. Add enough air pressure to lightly compress top bump cushion or until top (tailgate side) bump cushion is compressed is approximately 1/8″.  If the weight of your trailer changes or there is a huge temperature, you may need to add or reduce air pressure.

    Shocker Air Hitch Install Video

    Additional Set Up Notes:

    • When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
    • Spacer block included in the 2″ & 2-1/2″ hitches and may be required (see spacer block install in instructions below)
    • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
    • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY & Set at the Factory. Safety Notice: Towing capacity is limited by lowest rated component.

    Maximum Air Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

    Shocker Air Receiver Hitch Install Instructions

    Air Pressure Setting for the Shocker Air Receiver Hitch

    Installation Issues

    We want you to have the best possible towing experience with your product and proper installation is important. If you need help, we are here for you. Just give us a call at 701-707-2666 or use our contact us form. You can also look up the items product page on our website and view the installation tab. Most products on our website have a set-up guide and installation video.

    Will the Shocker Air Bumper Hitch work with Equalizer or Weight-Distribution?  If you have an equalizer or weight distribution hitch then it will not. However, check out our Shocker Air Equalizer for weight distribution hitches. If you are just using friction sway bars that hook to a mini ball (such as the shocker sway control arm bar kit), then yes, if you also have one of our sway bar tab mounts such as the combo sway control ball mount attachment.

    We’re here to help. Contact Us

  • Warranty arrow

    Warranty

    This product is backed by the Shocker Hitch Manufacturer Warranty and the Shocker Hitch ✅ 60 Day Money Back Smooth Towing Guarantee!. View our online Warranty Registration Form to register your Shocker Hitch.

    60-DAY MONEY BACK GUARANTEE

    We want you to be 100% satisfied. You’ve got 60 days to ensure your hitch fits your lifestyle.

    SMOOTHER TOWING

    We guarantee whatever you are towing, the ride on your pickup and trailer will be smoother with any of our air & cushion products period.
    Installation Help

    FREE SHIPPING* & FREE RETURNS

    If you are not satisfied, you can return it for free the first 60 days. See our free shipping* & free return policy.

    HOMETOWN CUSTOMER SERVICE

    We are here to help. We are happy, when you are happy.
    Made in the USA

    INSTALL HELP

    We’re glad to answer any questions you have. support is here 8am‐5pm, Mon‐Fri at 701-707-2666 or you can email anytime.

    MADE IN THE USA

    All of our products are custom made with good all American folks in Jamestown, ND USA
    The Shocker Hitch Guarantee applies to products purchased from ShockerHitch.com.
  • Q & A (1) arrow

    Questions and answers of the customers

      How does it perform on light or empty trailers
    1. 0 votes
      Q How does it perform on light or empty trailers
      A

      Please adjust accordingly based on your personal preference to see the best results with your trailers.
