Shocker Gooseneck Air Hitch & Coupler for Diamond C Trailers

Product Description

• Smoother Safer Towing: Improves your ride, reduces wear & tear on pickup & trailer made by Diamond C Trailers.
• Easy Install: Completely replaces your factory gooseneck stem & coupler with Gooseneck Surge Air System & Coupler. Installs in Minutes.
• Absorbs Road Shock: Helps eliminate tugs, jerks & bumps felt when towing on rough roads or concrete highways.
• 30,000 lbs & 7,000 lbs tongue weight: Available with 30k dual latching Shift Lock gooseneck coupler for 2-5/16″ ball.
• Built in Airbag: This hitch directs the tow resistance through an airbag, producing a smooth ride.
• Air Ride Technology: Protects your truck, gooseneck trailer and the contents with a smoother, safer tow. Heavy loads, just add air. The cure for choppy, bouncy, buckled, rough & busted up roads. No more booms, bangs and jerks when towing with your gooseneck.
• STEM SELECTION: Available for 4″ Round & 4″ Square Diamond C Gooseneck Flatdeck & Dump Trailers. A few 2021 models have 100mm (3-15/16″) round stems. Not sure what size round gooseneck stem you have? Check out our gooseneck stem selection guide.
• Fits 2-5/16″ gooseneck hitch balls: & has 3 height adjustment holes. (Standard Shift Lock™ coupler extends 3″ forward from your factory coupler or choose 9″ extension for short bed pickups)

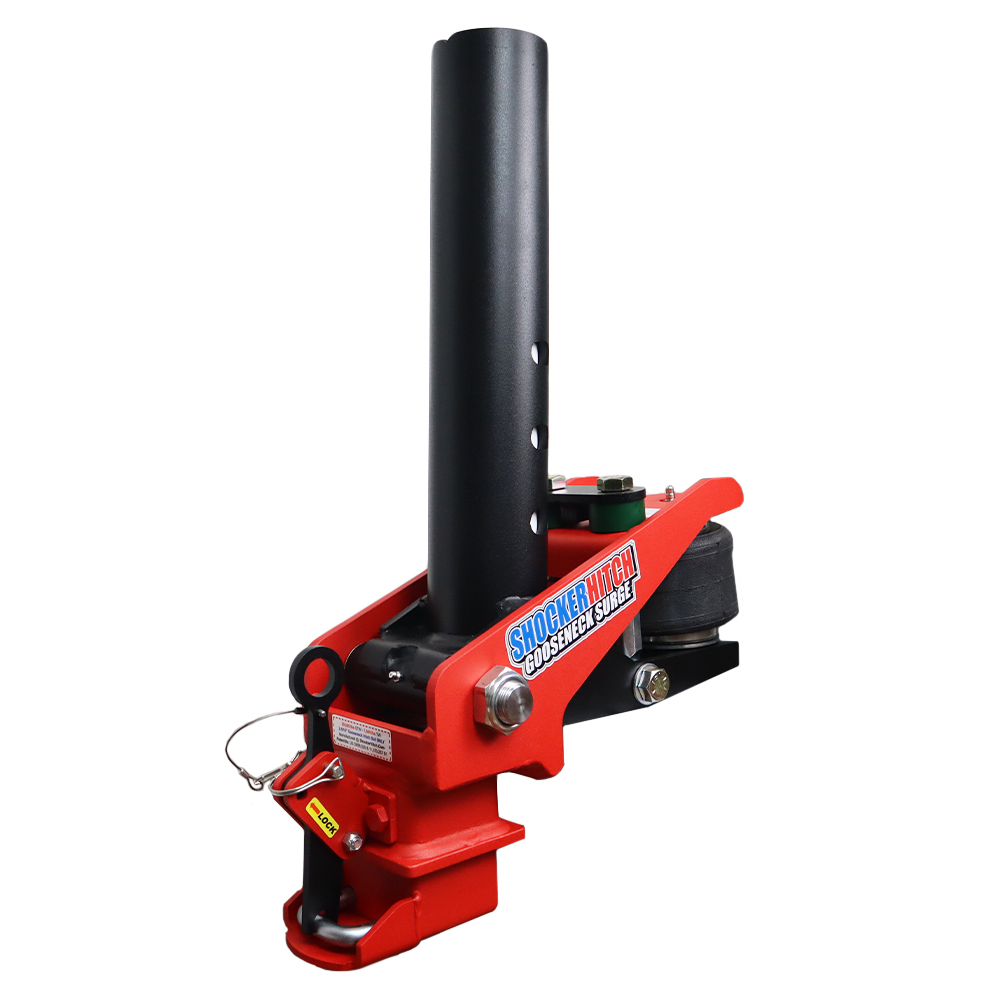

• Includes complete Shocker Gooseneck Surge® air hitch with built in airbag, replacement inner tube stem & 30,000 lb Shift Lock™ gooseneck coupler for 2-5/16″ ball.
• Have a different trailer brand? Click this link to Find Your Gooseneck Surge Air Hitches by Trailer Mfg

Round Tube Pin & Sizing Guide

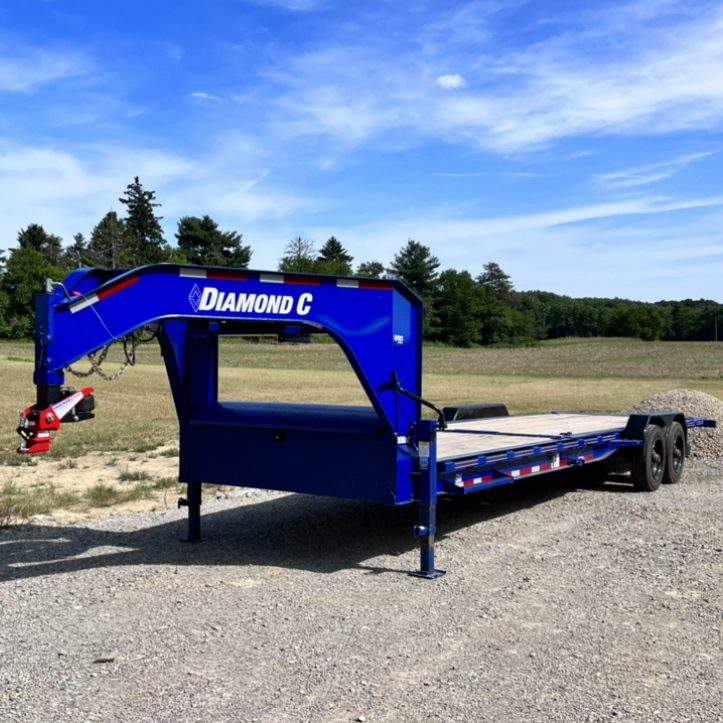

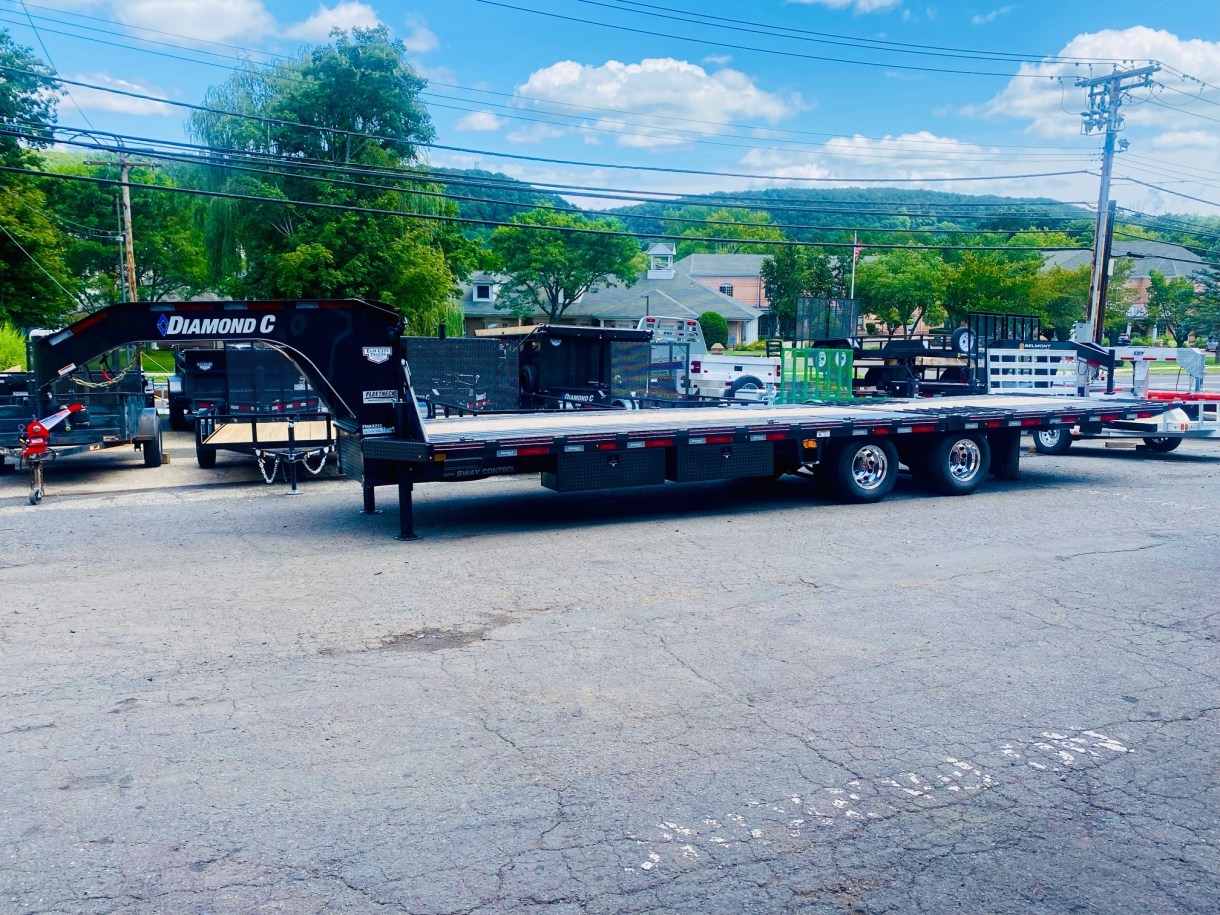

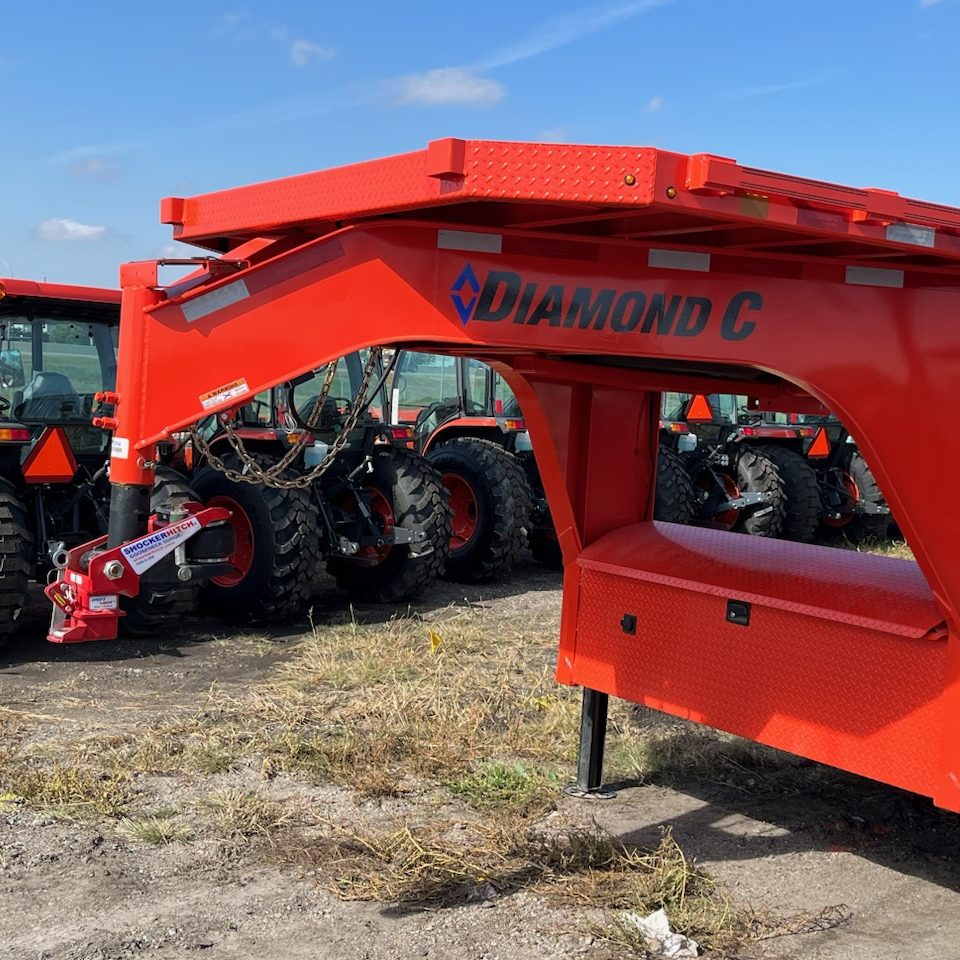

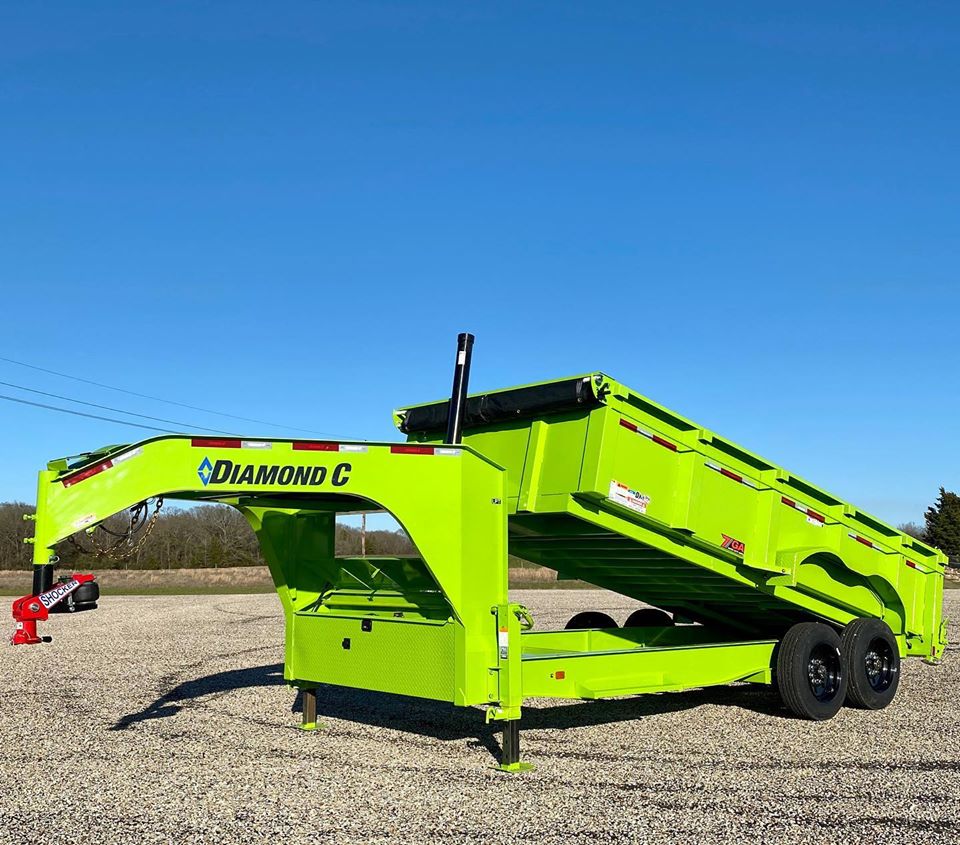

Air ride upgrade for your Diamond C gooseneck trailer. The Shocker Gooseneck Surge® air hitch & 30,000 lb coupler is the ultimate in gooseneck trailer towing for your Diamond C gooseneck trailer. This shock absorbing cushion hitch is the only air ride hitch to exclusively work in a forward and back motion, which is often times this is the biggest jerk you feel when towing a gooseneck trailer. Works great on Diamond C dump, flatbed, tilt & deckover  gooseneck trailers. The built in airbag absorbs the road shock and filters the bumps through the airbag creating a smoother, safer towing experience for you, your pickup, your trailer & the contents.  Featuring the 30K rated patented Shift Lock™ coupler for a 2-5/16″ hitch ball and completely replaces the factory 4″ round or 4″ square stem & coupler on a Diamond C gooseneck trailers.  The shock absorbing hitch for a Diamond C flat bed or dump gooseneck trailer is made for smooth and safe towing whether you are towing occasionally or a hot shot driver hauling cargo all over the country. Works great on Diamond C gooseneck style end dumps & flatbed trailers. The gooseneck surge hitch & coupler completely replaces your Diamond C factory stem & coupler. It Installs in minutes. Manufactured by Shocker Hitch®

Note:  Diamond C gooseneck trailers have 4″round stems with angled / slotted hole for the pin or a 4″ square tube stem with top crank. Some 2021 Diamond C trailers have 100mm stems with angled holes. The Shocker gooseneck surge air hitch attaches easily to your trailer in minutes. Replacement inner tube stem has 3 adjustment holes and the coupler extends 3″ forward from factory location or you can also order it with a 9″ offset coupler for short bed pickup trucks.

Air Ride Hitch Technology: Shocker Air is designed with a built-in air bag for a smoother towing experience. Just add air depending on the weight of your trailer and it’s contents.

Simple Pivot Design: Uses a rocker arm pivot design which produces a front and back motion, much different than other cushion hitches on the market. Our design eliminates the need for parallel linkages, shock absorbers, torsion arms and other over engineered gadgets.

Improves Safety: By giving you improved control of your tow vehicle and trailer. The Gooseneck surge air hitch system allows for better control of your pickup and the trailer it is towing.

Shock Dampening Action: Gooseneck air hitch effectively absorbs the jerking, tugging and damaging forces experienced with a typical hard connection when towing trailers. There is no reason to beat yourself or your equipment up with a hard connection.

Adjustable for Tow Weight: The air bag sits behind your gooseneck hitch and out of the way. You will find the advantage of the Air Shocker is your ability to adjust air pressure for best ride and load control. View our Shocker Air Pressure tuning guide.

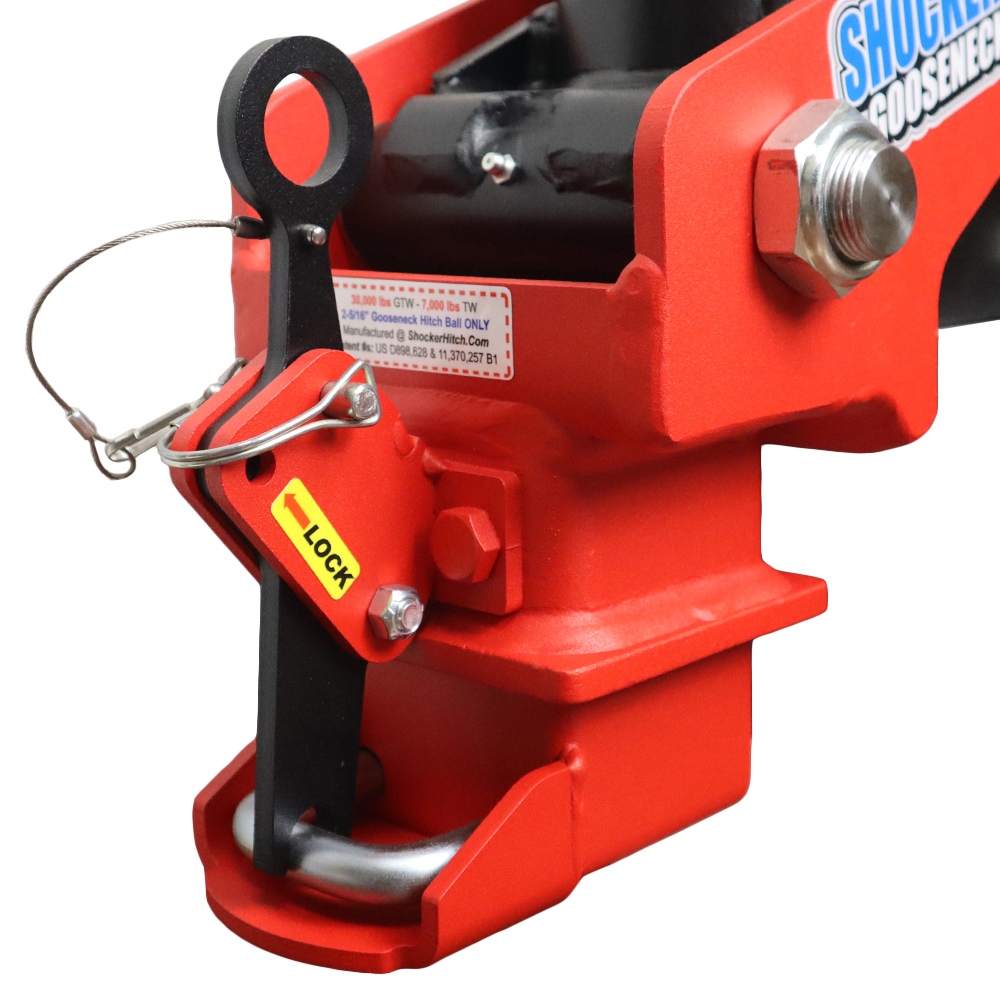

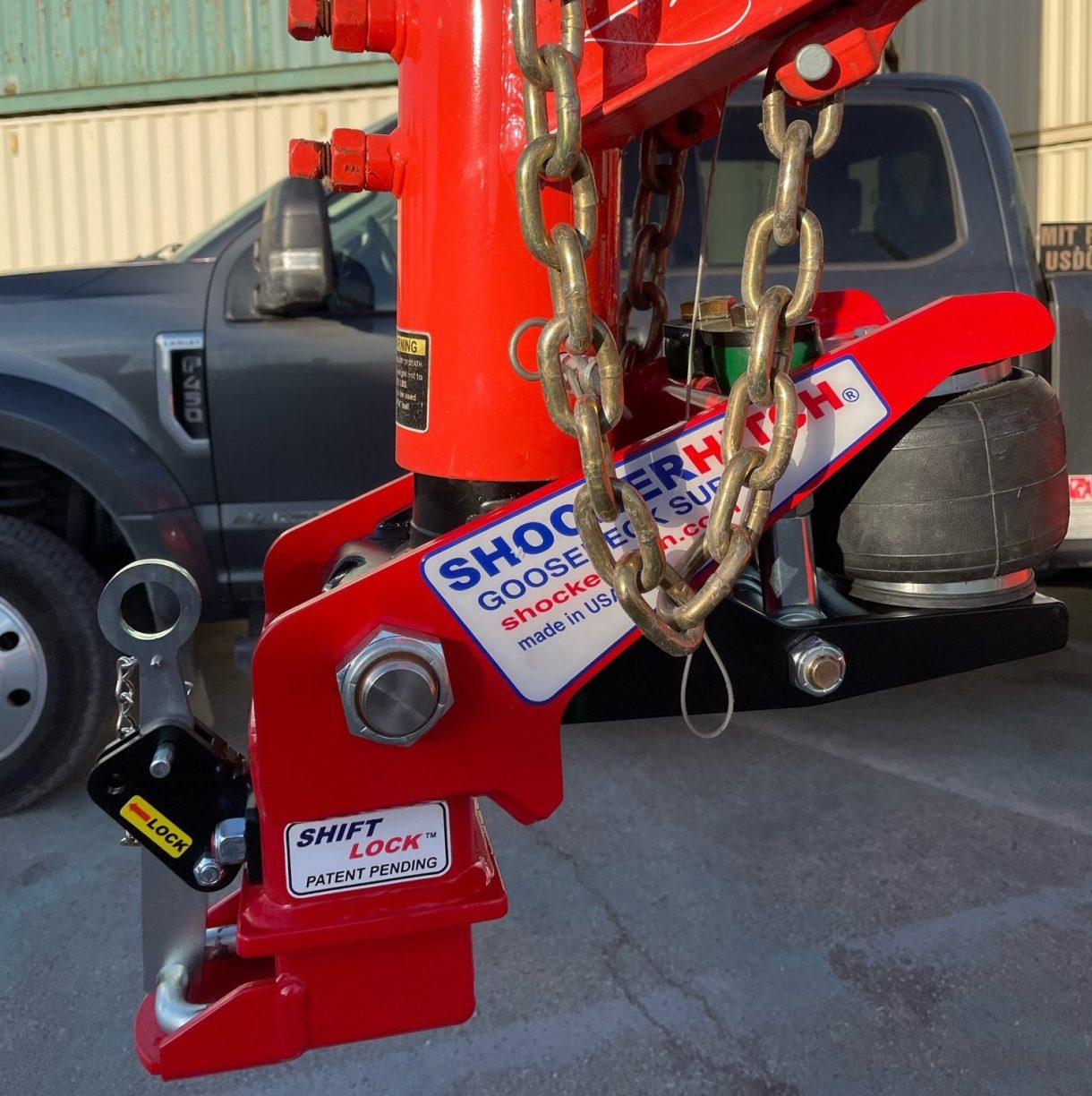

Shift Lock™ Coupler: 30,000 lbs rated, patented gooseneck coupler. The only gooseneck coupler that captures ball on both sides. At a glance, you can see if the coupler is locked on the ball. Easy to use handle to hook up and disconnect the coupler from the ball.

Saves Fuel: By using a gooseneck Surge Hitch, you may save as much as one mile per gallon. When we developed the Surge Hitch our intention was to give a smoother ride, period. We perfected that and never considered the other benefits. Customers using the Surge hitch started calling with reports of better fuel mileage. Claims of up to a mile per gallon are pretty normal. The question is why? Trucks manufactured over the past ten years or more have a very sophisticated on board computer. The computer senses a jerk or load increase and gives the engine more fuel. This process happens many times in a second. By reducing the jerks, the computer will give the engine less fuel. The other contributing factor is cruise control. If your trailer bucks the cruise control will increase speed. When the buck stops, the cruise control reduces speed. This sets up a cycle of accelerating and decelerating, again using more fuel. A Shocker Surge Hitch can reduce this effect and give you a much smoother ride. Replacement stem has 3 adjustment holes and the coupler extends 3″ forward from factory location or you can also order it 9″ forward for short bed pickup trucks.

Adds Life To Your Vehicle & Gooseneck: By reducing wear and tear on driveline and frame! Treat yourself, your equipment, and your passengers to a much smoother ride. You’ll never go back to the ‘old days’ of continual bumps, jerks, and vibrations. Join the list of satisfied customers that are using Shocker hitches. Order one today and get ready for your ultimate smooth towing experience the next time out.

Saves Money: By reducing trailer breakage on both the trailer and the trailer contents! The Shocker hitch absorbs the damaging forces experienced with a typical hard connection. This greatly reduces the chances of breaking welds and doing other long term damage to your equipment as well as the valuable cargo you have inside the truck and trailer.

Provides Comfort: With a smoother ride! Travel a lot on concrete highways? No more jarring every time you cross a section divider. Your Shocker air hitch absorbs the thumps, bumps and jerks you feel when towing your gooseneck trailer.
