Product Description
- Weld on Outer Tube Sleeve & Inner Gooseneck Stem & Coupler Kit: Available with outer tube sleeve diameters of 5″, 4.5″ & 4.5″ for top crank style.
- Heavy Duty Thick Wall Design Outer Sleeve & Stem: Outer sleeve is 20″ in height. Available with Inner Diameter 4″ Square, 4.5″ Square or Top crank style gooseneck stems. Reinforced collar and fabricated & formed outer for added strength featuring 2 set bolts & jam nuts.
- Extra Plating for Welded Stem & Coupler Connection: Additional plating used to weld coupler to stem for long term strength and durability.
- Demco EZ Latch Coupler: Auto latches on to gooseneck ball. Easy to use handle, just lift up to release from gooseneck trailer ball.
- 30,000 lbs gtw & 6,000 lbs tongue weight capacity: Built for the heavy duty gooseneck hauling. Both out and inner tubing is thick walled for extra strength.
- Raw Steel Option: Comes in raw steel and ready to weld onto the front of a gooseneck trailer. This is the set up gooseneck trailer manufactures use.
- Coupler for 2-5/16″ Gooseneck Ball: Built for heavy duty hauling.
- 3 Sizes to Choose From: 4.5″ OD Sleeve with 4″ Square Gooseneck coupler with straight pin holes, 5″ OD Sleeve with 4.5″ Square Gooseneck coupler with straight pin holes or 4-1/2″ OD Sleeve with 4″ Square Gooseneck coupler with Top Crank
- Inner Stem has 4 Adjustment Holes: Stems with holes have 4 adjustment holes that holes are 2-3/4″ apart.
- Sold as a Set – Includes Outer Sleeve Tube, Inner Stem with welded on Gooseneck Coupler: Includes complete outer sleeve & inner tube gooseneck stem & demco coupler.
- Optional Gooseneck Locks: Coupler lock for demco gooseneck coupler, part #DEM-17654-81 and set bolt lock, part # SH-400GL-ISP-BLK available and sold separately.
- What an air ride upgrade for your gooseneck trailer? Check out our Gooseneck Surge Air Hitches.

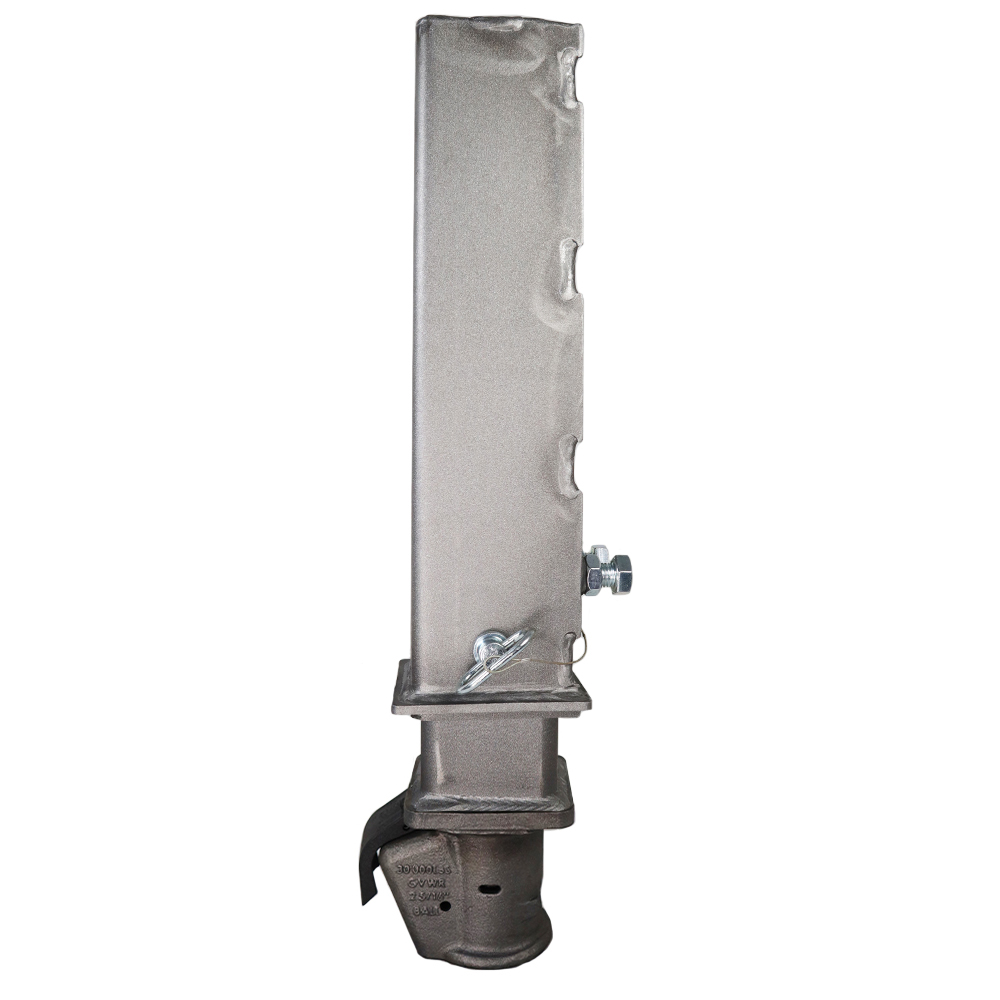

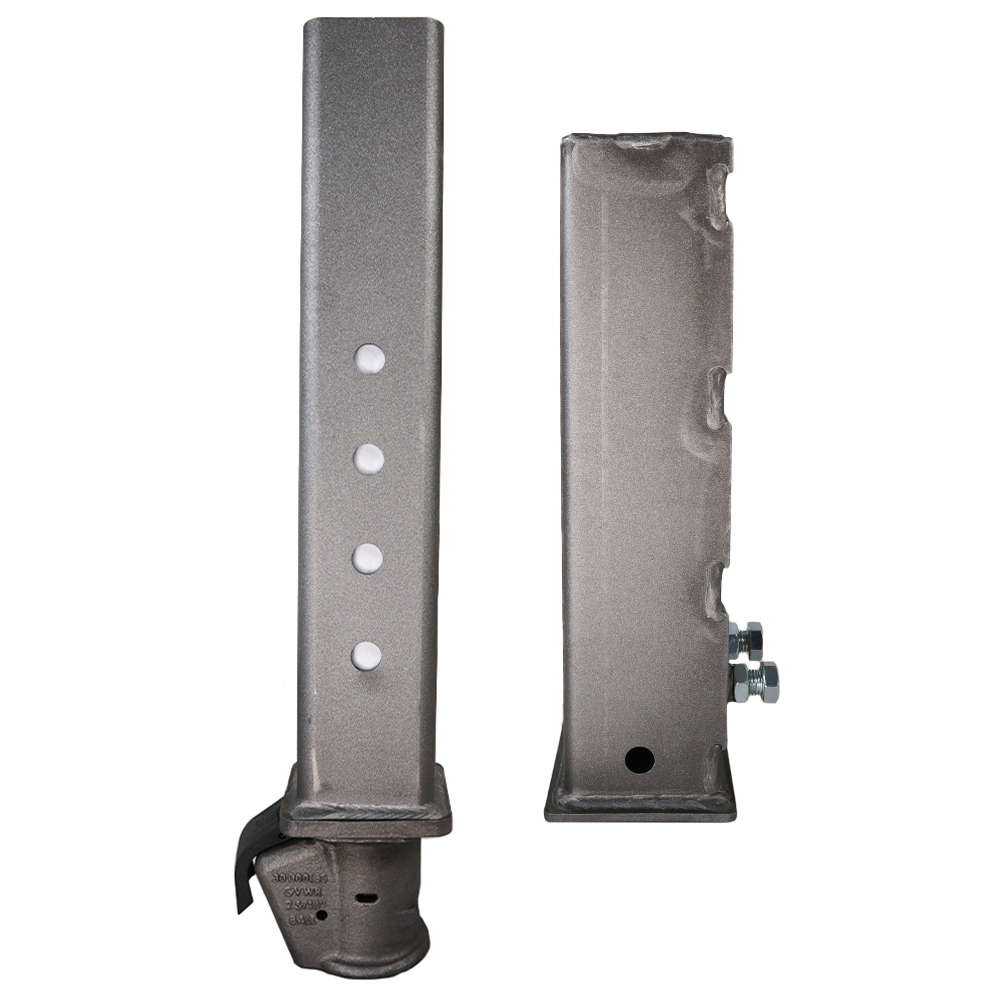

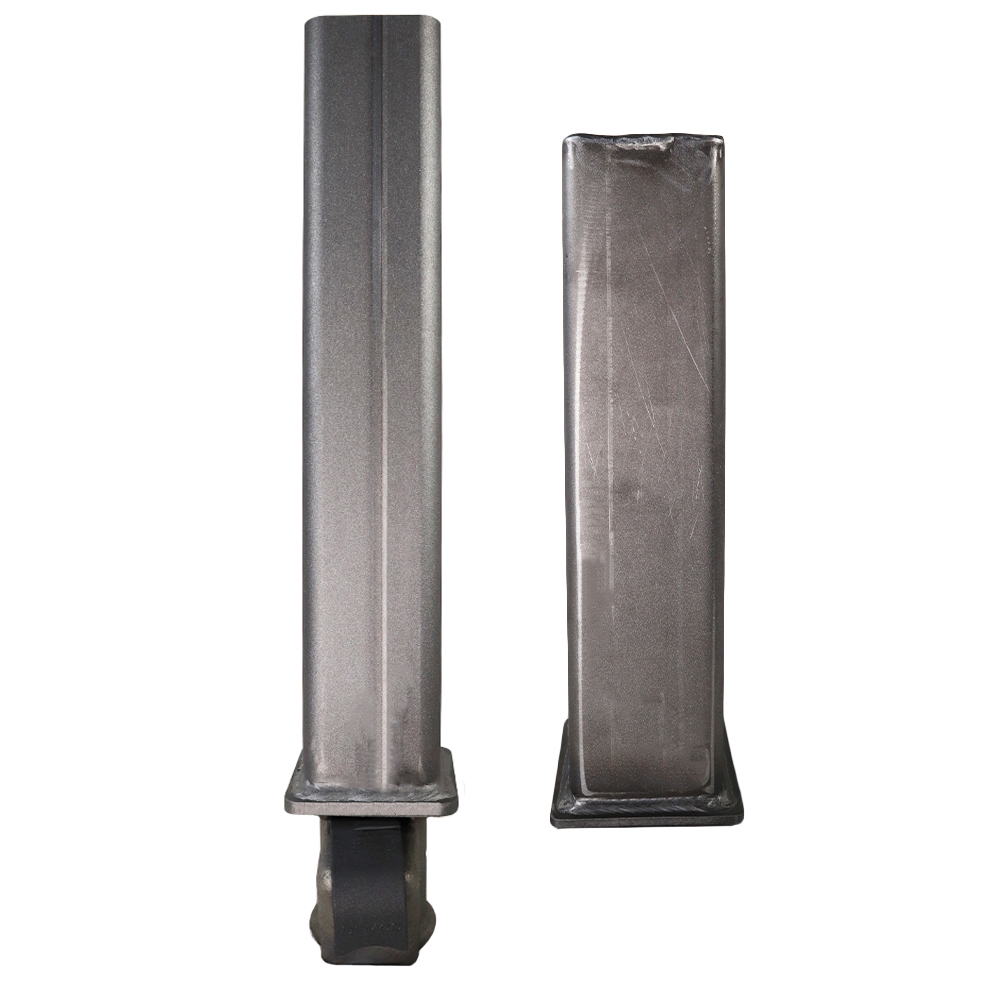

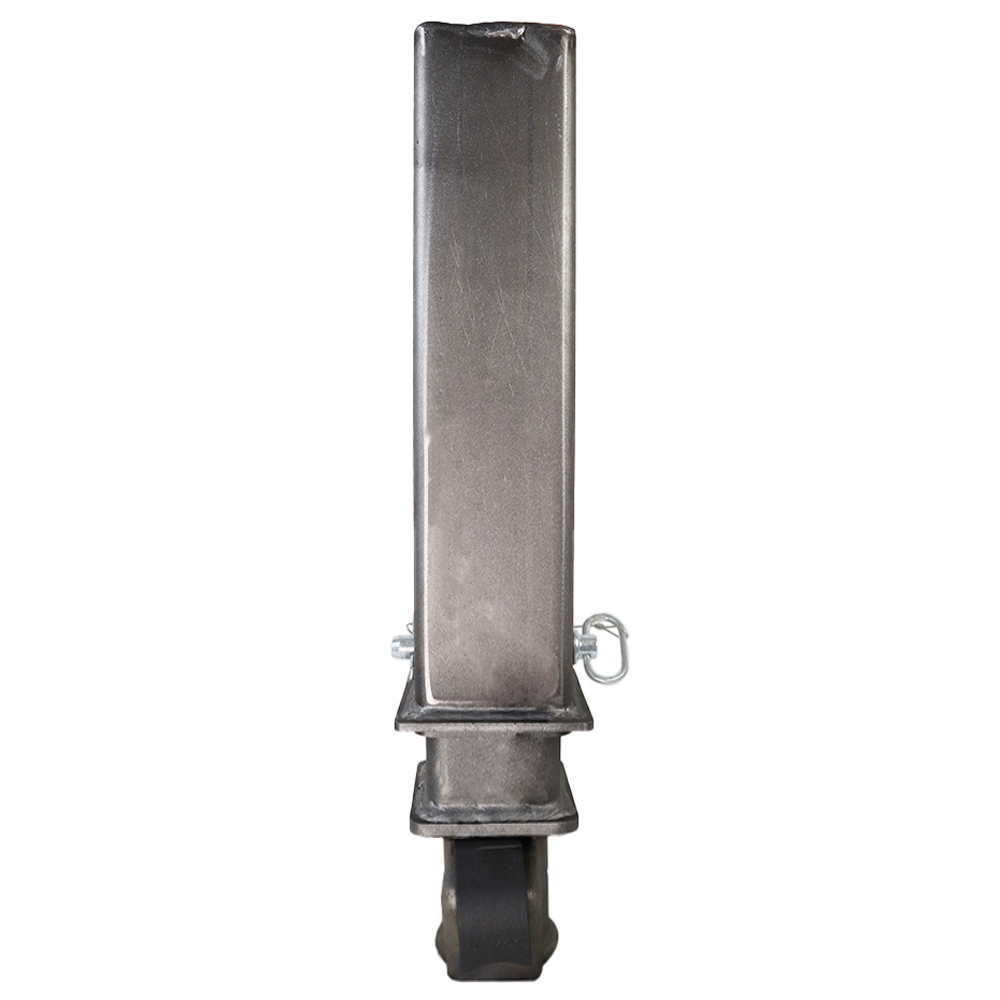

Weld on raw steel thick walled square outer tube sleeve and inner gooseneck stem and ez latch demco coupler for 2-5/16″ gooseneck ball. Design for offering 30,000 lbs gtw on a gooseneck trailer. The package set features both the thick wall inner stem & outer sleeve along with an adjustable height demco coupler. Inner tube replacement gooseneck stem features the demco ez latching coupler that will auto latch onto the ball. Outer square sleeve is available in 3 sizes; 5″OD x 4.5″ ID, 4.5″ OD with 4″ ID and 4.5″ OD & 4″ ID for a top crank style. Available with inner square stem options of 4-1/2″, 4″ & 4″ Top Crank Style. Thick walled square inner stem tube options have extra heavy duty plating to weld coupler to stem for long term strength and durability. Upgrade your gooseneck trailer with the easy to use, patented demco coupler for gooseneck trailers. Available in raw steel. Professional welding required installation. Works great on gooseneck style trailers; dumps, flatbed, horse, race trailers and more. Square gooseneck outer sleeve, inner stem & coupler options can be ordered in raw steel as a set. This is commonly ordered by gooseneck trailer manufactures and professional welding is required to weld on the square outer sleeve tube on the gooseneck trailer tongue.
Looking for an air ride upgrade for your gooseneck trailer? We also manufacture Gooseneck Air Hitches.
